Description
The NX3008PBKW is a P-channel enhancement mode Field-Effect Transistor (FET) in surface mount plastic package using Trench MOSFET technology. Suitable for relay driver, high-speed line driver and high-side loadswitch.
- Logic-level compatible
- Very fast switching
- AEC-Q101 Qualified
- Up to 1kV ESD protection
Applications
Industrial
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Power Dissipation Pd | 260mW |
| Operating Temperature Max | 150�C |
| Continuous Drain Current Id | -200mA |
| Transistor Polarity | P Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | -900mV |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | -30V |
| Rds(on) Test Voltage Vgs | -4.5V |

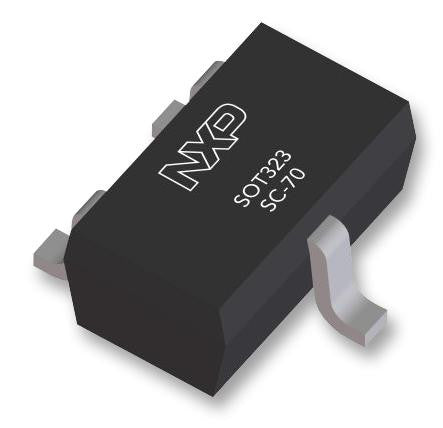

| Transistor Case Style | SOT-323 |
| On Resistance Rds(on) | 2.8ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | NX3008PBKW |
| Quantity | Each |
| Technical Data Sheet EN |  |
