Description

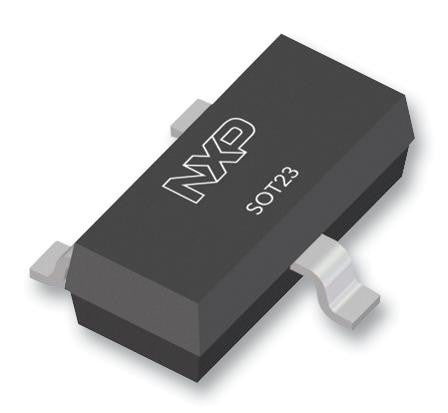

The NX3008NBK from NXP is a surface mount, 30V N channel enhancement mode field effect transistor in SOT-23 (TO-236AB) package using TrenchMOS technology. This transistor features very high speed switching, low threshold voltage and ESD protection up to 2KV. This device is used as relay driver, high speed line drivers, low side load switch.
- Automotive grade AEC-Q101 qualified
- Drain to source voltage (Vds) of 30V
- Gate to source voltage of ±8V
- Drain current (Id) of 400mA
- Power dissipation (pd) of 350mW
- Ambient temperature range from -55°C to 150°C
Applications
Power Management, Consumer Electronics, Portable Devices, Industrial, Automotive
Product details
| Power Dissipation Pd | 350mW |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | 400mA |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 900mV |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | 30V |
| Rds(on) Test Voltage Vgs | 4.5V |
| Transistor Case Style | SOT-23 |
| On Resistance Rds(on) | 1ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | NX3008NBK |
| Quantity | Each |
| Technical Data Sheet EN |  |
