The NUP1301U is an ultra-low capacitance ESD Protection Device Array designed to protect one signal line in rail-to-rail configuration from the damage caused by ESD and other transients. It is suitable for microcontroller protection, I?C-bus protection, antenna power supply and Class-D amplifiers.
- ESD protection of one signal line (rail-to-rail configuration)
- 0.6pF Ultra low diode capacitance (Cd)
- ESD protection up to 30kV
- IEC 61000-4-2, level 4 (ESD)
Applications
Communications & Networking, Imaging, Video & Vision, Computers & Computer Peripherals, Power Management, Audio, RF Communications, Industrial
Product details
| Clamping Voltage Vc Max |
20V |
| Diode Case Style |
SOT-323 |
| No. of Pins |
3Pins |
| Operating Voltage |
- |
| Power Dissipation Pd |
200mW |
| Product Range |
NUP13 Series |
| Automotive Qualification Standard |
- |
Other details
| Brand |
NEXPERIA |
| Part Number |
NUP1301U,115 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

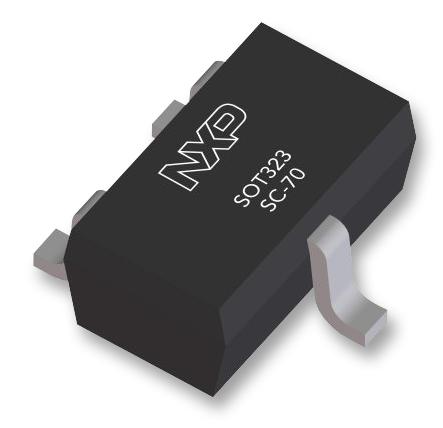

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
