Product details
Technical Specifications
MOSFET Module Configuration
Single
Continuous Drain Current Id
38A
Drain Source On State Resistance
0.09ohm
Gate Source Threshold Voltage Max
2.9V
Operating Temperature Max
175°C
Drain Source Voltage Vds
1.2kV

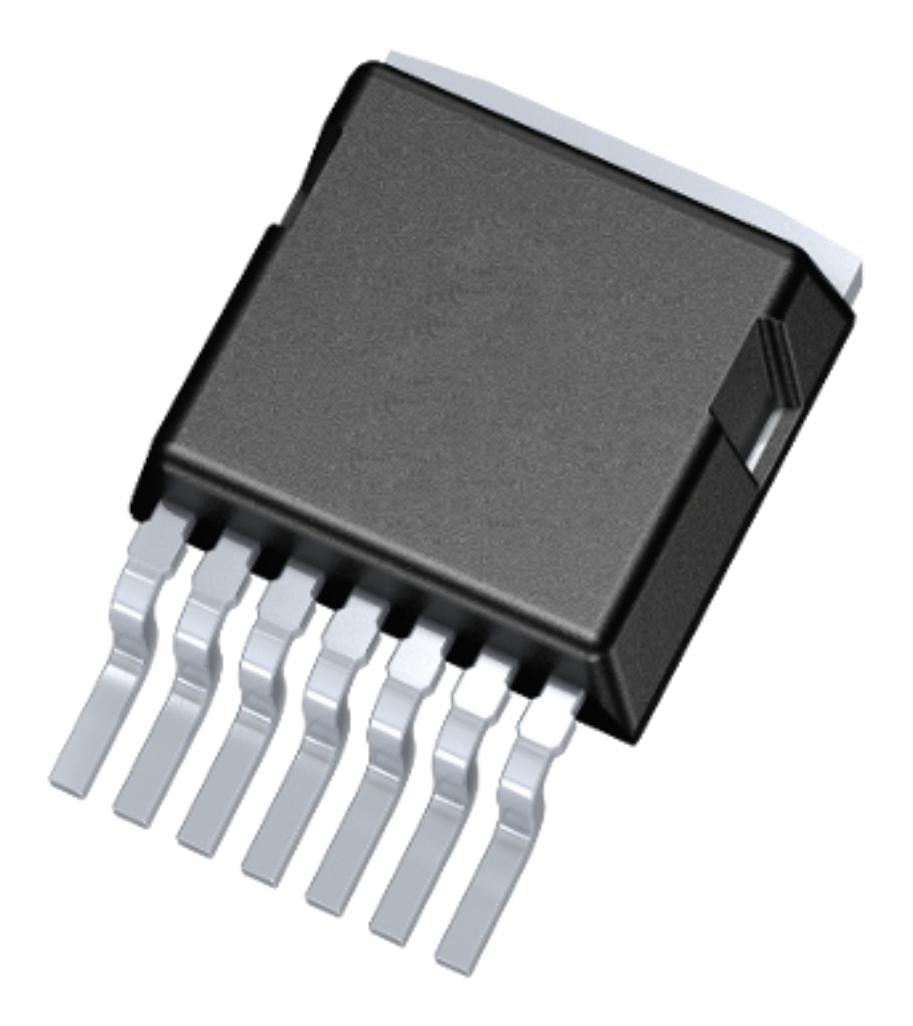

Transistor Case Style
TO-263
Other details
Brand |
NEXPERIA |
Part Number |
NSF060120D7A0J |
Quantity |
Each (Supplied on Cut Tape) |
Technical Data Sheet EN |
 |
