Description
Product Overview

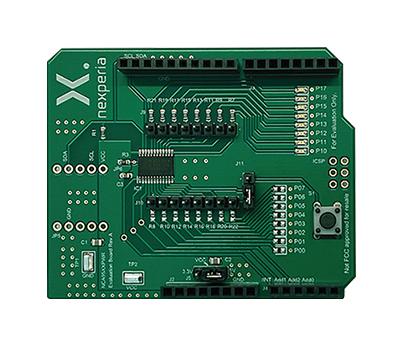

NEVB-NCA9555 is a NCA9555 GPIO expander evaluation board. This is an Arduino� compatible shield form factor PCB designed for the Nexperia I²C controlled GPIO expander family. The board provides convenient test points for GND, I²C-Bus signals SCL and SDA as well as an interrupt open drain output. The EVB can be used for the GPIO expander derivatives NCA9555. The EVB is designed in an Arduino� compatible shield form factor that allows easy development with Nexperia�s line of available I²C GPIO I/O expanders.
- Input voltage range from 1.6V to 5.5V
- I²C to parallel port expansion
- Number of GPIOs = 2 ports with 8 bits
- Current drive capability = ±25mA
- I²C interface, fast-mode 400KHz
- Open-drain active-low interrupt output
- integrated 100Kohm pull-up resistors for GPIO pins
Product details
Other details
| Brand | NEXPERIA |
| Part Number | NEVB-NCA9555 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 8406.24 |
| 3-5 | ₹ 8320.47 |
| 5-10 | ₹ 8148.91 |
| 10+ | ₹ 7977.35 |
Bulk discount will be automatically applied during checkout based on quantity.
