Description
The BSS138BK is a N-channel enhancement mode Field-Effect Transistor (FET) in a Surface Mounted Device (SMD) plastic package using Trench MOSFET technology.
- Logic Level Compatible
- Very Fast Switching
- ESD Protection Upto 1.5kV
- AEC-Q101 Qualified
Applications
Audio, Signal Processing, Power Management
Product details
| Power Dissipation Pd | 350mW |
| Operating Temperature Max | 150�C |
| Continuous Drain Current Id | 360mA |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 1.1V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | 60V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | SOT-23 |
| On Resistance Rds(on) | 1ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | BSS138BK |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

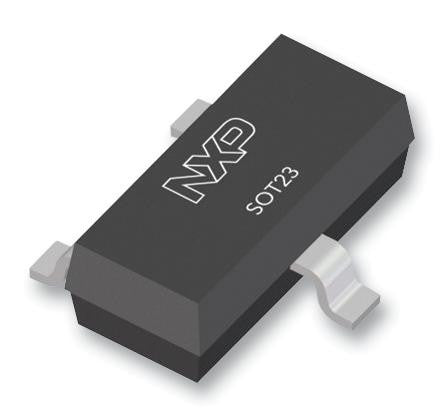

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 53.78 |
| 3-5 | ₹ 53.23 |
| 5-10 | ₹ 52.14 |
| 10+ | ₹ 51.04 |
Bulk discount will be automatically applied during checkout based on quantity.
