Description

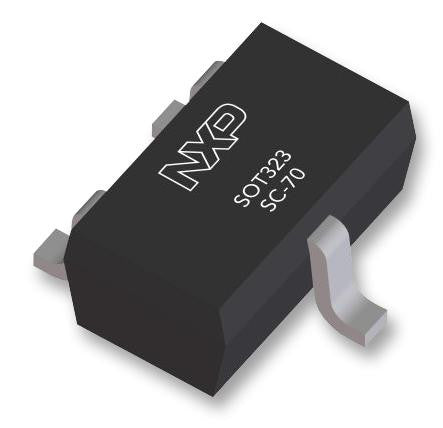

The BC846BW,115 is a NPN Switching Transistor in surface mount device plastic package with 3 leads.
- Two different gain selections
Applications
Audio, Industrial
Product details
| Power Dissipation Pd | 200mW |
| DC Collector Current | 100mA |
| Collector Emitter Voltage V(br)ceo | 65V |
| Transition Frequency ft | 100MHz |
| Operating Temperature Max | 150°C |
| Transistor Polarity | NPN |
| DC Current Gain hFE | 200hFE |
| No. of Pins | 3Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Transistor Case Style | SOT-323 |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | BC846BW,115 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Application Note EN | |
| Product Change Notice EN | |
