Description

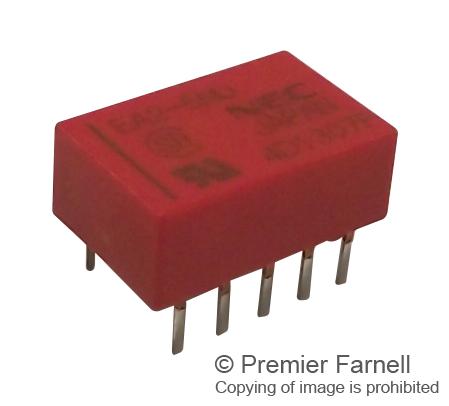

This is a Signal Relay, 5 V, DPDT, 1 A, Through Hole, Non Latching, EA2 Series product from NEXEM with the model number EA2-5NU
Product details
| Coil Voltage | 5V |
| Contact Configuration | DPDT |
| Contact Current | 1A |
| Relay Mounting | Through Hole |
| Coil Type | Non Latching |
| Product Range | EA2 Series |
| Contact Voltage VAC | 250V |
| Relay Terminals | Solder |
| Contact Voltage VDC | 220V |
| Contact Material | Silver Alloy |
| Coil Resistance | 178ohm |
Other details
| Brand | NEXEM |
| Part Number | EA2-5NU |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
