Newcon Optik LRM 2K Overview
-
1Description
-
2Optical Performance
-
3Use and Handling
-
4Construction Features

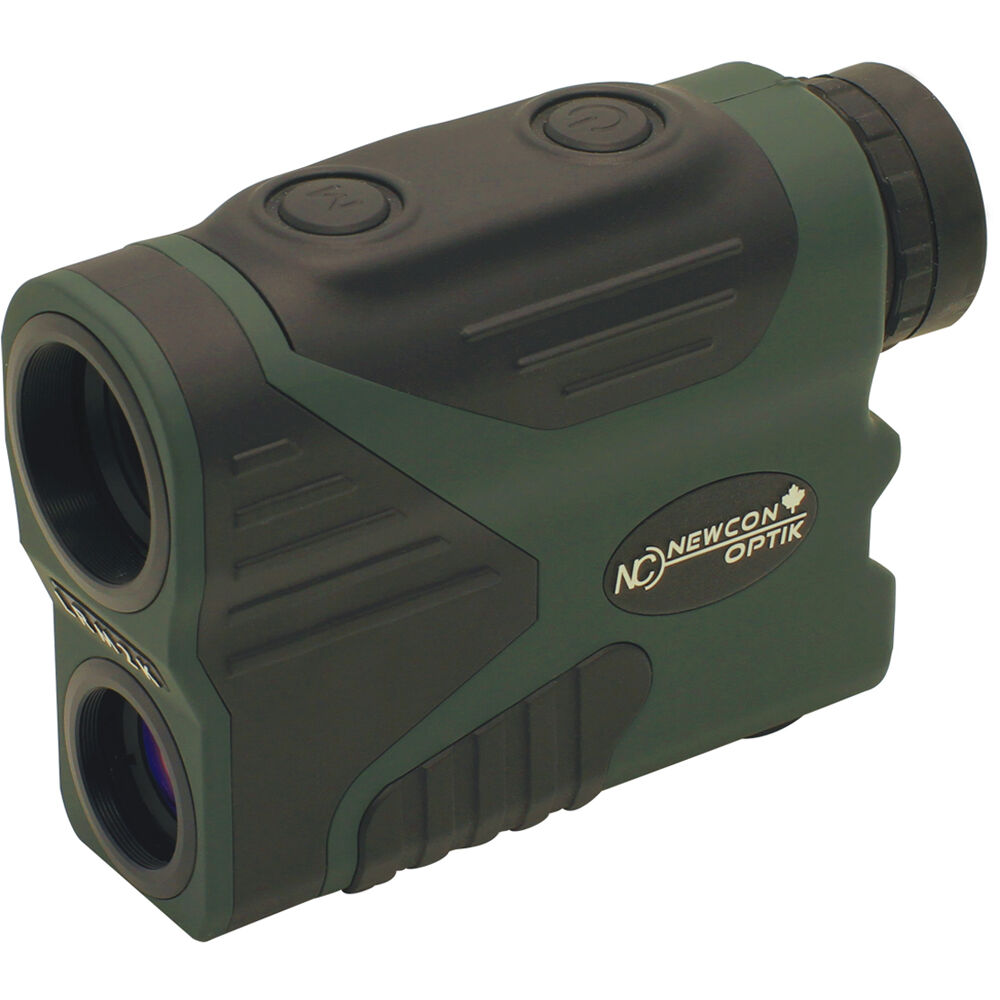

With one click, you'll know the distance to a target�and its relative angle and speed, if it's moving�with the Newcon Optik LRM 2K 7x24 Laser Rangefinder Monocular. The LRM 2K connects via Bluetooth to the Android-based NC Cronus app, displaying detailed metrics and offering remote operation, but also offers a wealth of information on its own bright TOLED display. Measurement range is 2187 yards, with approximately 1-yard accuracy at up to 550 yards and 2-yard accuracy beyond that. The inclinometer measures slopes ±60° to within 1°. Readings are displayed in yards or meters, and a simple two-button interface controls the unit. Built for the field, the LRM 2K is IP67-rated water resistant, and runs on one CR123A battery, good for approximately 5000 measurements.
Optical Performance
- 7x magnification, 24mm objective
- Eye-safe 905nm class 1 laser
- 11-2187 yd (10-2000m) range with 1-yard accuracy to 550 yards, 2 yards beyond
- 7.5° field of view
- ±5 diopter adjustment accommodates wide range of visual acuities
- 16mm eye relief
Use and Handling
- Inclinometer with ±60° angle measurement range
- Speed measurement of moving targets
- Compatible via Bluetooth with NC Cronus app
- Android-based app displays and stores detailed readings, allows control of settings
- Height and ground range measurements
- Measurement displayed in yards/meters
Construction Features
- IP67-rated water resistance
- Simple two-button interface
- Uses one CR123A battery, good for 5000 measurements
- Lightweight at 5.8 oz, plus battery
In the Box
- Newcon Optik LRM 2K 7x24 Laser Rangefinder Monocular
- Carrying Case
- Lens Cloth
- Lens Cover
- CR123A Battery
- Limited 1-Year Warranty
Table of Contents
- Description
- Optical Performance
- Use and Handling
- Construction Features
Newcon Optik LRM 2K Specs
Laser
| Laser Type |
Class 1 Eye Safe |
| Metering Range |
10.9 to 2188 yd / 10 to 2000 m |
| Accuracy |
/ 10 to 500 m: 1.1 yd / 1 m
/ 500 to 2000 m: 2.2 yd / 2 m |
| Peak Wavelength |
905 nm |
Optics
| Magnification |
7x |
| Objective Lens Diameter |
24 mm |
| Angle of View |
7.5° (Actual) |
| Minimum Focus Distance |
32.8' / 10 m |
| Eye Relief |
16 mm |
| Dioptric Correction |
-5 / +5 |
General
| Form Factor |
Monocular |
| Power Source |
1 x CR123 Lithium-Ion |
| Display Type |
TOLED |
| Inclinometer |
Maximum Angle: ±60° Accuracy: 1% |
| Wireless Connectivity |
Bluetooth |
Physical
| Water Resistance |
Water Resistant, IP67 |
| Operating Temperature |
-4 to 122°F / -20 to 50°C |
| Storage Temperature |
-22 to 149°F / -30 to 65°C |
| Dimensions |
4.2 x 3.1 x 1.5" / 10.7 x 7.9 x 3.9 cm |
| Weight |
5.8 oz / 165.0 g (without Battery) |
