Description

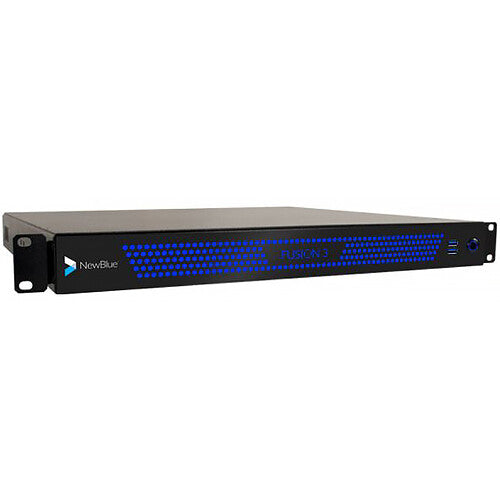

NewBlueFX Fusion 3 SDI Overview
Enhance your broadcast with powerful on-air graphics and streamlined workflows with the improved Fusion 3 SDI with Titler Live 5 Broadcast from NewBlueFX. The updated version of the Fusion SDI includes double the RAM, a new motherboard, and a higher-power CPU/GPU. Bringing together hardware and software in one versatile device, this turnkey broadcast graphics system provides a sophisticated combination aimed at professional broadcasters and enterprise markets.
Boasting a vast array of external ports, the Fusion 3 Pro SDI handles both SDI and NDI workflows and includes Titler Live 5 Broadcast integration with 300+ vivid graphics at your fingertips. A Blackmagic Design DeckLink Duo 2 is included, giving you four bidirectional SDI interfaces handling resolutions up to 1080p60 in a 4:4:4 color space.
- 32GB DDR5 4800 MHz RAM in a dual-configured 16GB x 2 DIMM configuration
- Gigabyte A620I AX Mini-ITX AM5 motherboard
- USB-C connectivity
- Higher-power CPU/GPU
Items Included
- NewBlueFX Fusion 3 SDI with Tilter Live 5 Broadcast
- NewBlueFX Captivate Broadcast
- Blackmagic Design DeckLink Duo 2
- Front-Mounting Hardware
- Limited 1-Year Manufacturer Warranty (Hardware)
- Limited 2-Year Manufacturer Warranty (Software)
Additional Resources
No additional resources available
NewBlueFX Fusion 3 SDI Specs
| Processor |
AMD- Ryzen 5 7600 Series 6-Core 3.8 GHz Socket AM5 65W
AMD Radeon Graphics Processor |
| Memory |
32 GB DDR5 4800 MHz RAM
16 GB x 2 DIMM Configuration |
| Operating System |
Windows 11 Pro 64-Bit
|
| Video |
AMD Radeon Graphics, 2 GPU cores, 2200 MHz
|
| Expansion Slot |
16 x PCl Express 3.0
Blackmagic DeckLink Duo 2 |
| USB I/O |
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Input
1 x USB-A 3.1/3.2 Gen 2 Female Input 1 x USB-A 3.1/3.2 Gen 2 Female Input 3 x USB-A 2.0 Female Input |
| Video I/O |
1x DisplayPort Input
1x HDMI Input 1x RJ45 Input |
| Internal Storage |
500 GB
|
| Other I/O |
1 x Q-Flash Plus
2 x SMA Antenna Connector |
| Audio Input |
3 x Audio Jack
|
| Audio |
RealTek ALC887 HD Audio
2/4/5.1/7.1-Channel |
| Power Source |
AC Adapter with Power Brick
|
| Power Consumption |
300 W
|
| Mounting |
1x Mounting Hardware Set
|
| Dimensions |
10 x 1.75" / 25.4 x 4.45 cm
|
| Package Weight |
14.985 lb
|
| Box Dimensions (LxWxH) |
24.4 x 16.6 x 7.3"
|
