Description
Neutrik NC3FD-LX-HA-BAG Overview

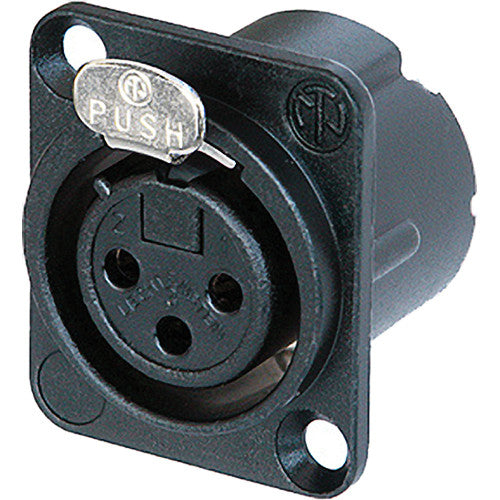

Neutrik's XLR 3-Pole Female Receptacle is a 3 pole female receptacle, with crimp termination (Standard B-Crimp), black metal housing, and silver contacts.
This connector features a compact all metal housing with a duplex ground contact, offering excellent RF protection and shielding.
All metal housing offers overall RF protection and electromagnetic shielding
Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
Gastight and Solderless connection (RoHS compliant)
Duplex ground contact for excellent contact integrity between chassis and cable connector
Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
Optional connection to easily join pin to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions
Neutrik NC3FD-LX-HA-BAG Specs
| Connection Type | XLR |
| Gender | Female |
Electrical
| Capacitance | ? 4 pF |
| Contact Resistance | ? 5 m? (Inner) |
| Dielectric Strength | 1,5 kVdc |
| Insulation Resistance | > 10 G? (Initial) |
| Current | 1 A |
| Voltage | 50 V |
Mechanical
| Insertion Force | ? 20 N |
| Withdrawal Force | ? 20 N |
| Lifetime | > 1000 Mating Cycles |
| Wire Size | 0.22-0.34 mm2 24-22 AWG |
| Wiring | Crimp Contacts |
| Locking Device | Latch Lock |
| Chassis Shape | D |
Material
| Contact Plating | 2 µm Ag over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking Element | Steel Ck67 |
| Shell | Zinc Diecast (ZnAl4Cu1) |
| Shell Plating | Black Chromium |
Environmental
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP 40 |
| Temperature Range | -30°C to +80°C |
Packaging Info
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 6.8 x 4 x 1.1" |
