Neutrik NPPA-TT-PT Overview

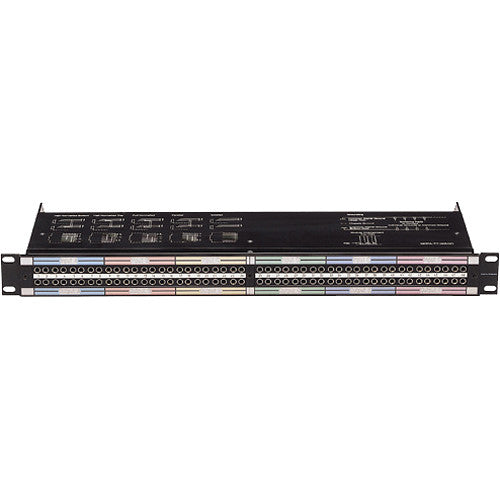

The Neutrik NPPA-TT-PT 96 Bantam (TT) Termination Patch Panel is fitted with high-quality, long-life NJ3TTA gold plated double contact jacks that have good contact integrity. The unit comes in a black coated steel shell, and has a built in cable bar and 2 large channel identification strips for appropriate management of the system. The NPPA-TT-PT patch panel is a compact patching system (1U high) for 19" rack mounting.
In the Box
- Neutrik NPPA-TT-PT 96 Bantam (TT) Termination Patch Panel
- Set of Spare Normalling Configuration Bars
- Disassembling Pliers
- Instruction Manual
- 6-Month Warranty
Neutrik NPPA-TT-PT Specs
Connection Type | Plug |
Electrical | |
Signal Type | Digital suitability acc. AES/EBU (3.072 Mbps and 6.144 Mbps) |
Frequency Range | DC to >50 MHz |
Suitability | Digital: Digital audio acc. to AES/EBU |
Channel Separation | >100 dB @ 10 kHz, 600 terminated >40 dB @ 6 MHz, 110 terminated |
Insulation Resistance | >10 Ωï� @ 500 VDC |
Contact Resistance | Connector: <20 mΩ |
Contact Resistance | Switch: <25 mΩ |
Dielectric Strength | 1,000 VDC |
Material | |
Housing | Jack: PA 66 blend |
Contacts | Jack: CuSn6 tribor plated (0.2 µm AuCo over 2 µm NiP) |
Casing | Steel and aluminum |
Front Panel | AlMgSi 0.5 F22 |
Mechanical | |
Temperature Range | -22 to 176° F (- 30 to 80° C) |
Lifetime | >5,000 mating cycles |
Insertion Force | <10 N |
Withdrawal Force | > 8 N |
Cable Retention | Force: 70 N maximum per cable retention bar |
Depth | 7'' (178 mm) |
Weight | 6.39 lb (2.9 kg) |
Dimensions (W x H) | 19'' x 1U |
Package Weight | 7.6 lb |
Box Dimensions (LxWxH) | 21 x 10 x 2.8" |
