Description
Neutrik NP2X-B Overview

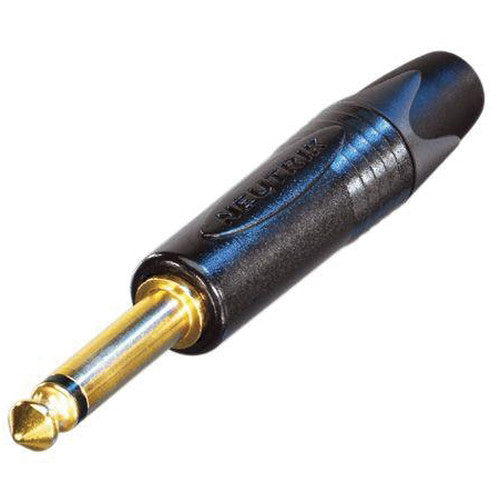

The Neutrik NP2X-B Professional 1/4" Phone Plug sports a thin A-gauge 1/4" plug with a chuck-type strain relief. Its slimline shell features a width of 0.57� (14.5mm), and its one-piece tip contact� constructed without rivets�helps avoid common connection problems, such as hooking up in a socket or breaking off the tip.
This plug is suitable for guitar-connection applications, other audio cables, snakes, speakers, amplifiers, and mixing desks.
- Extra-slim 1/4" plug for high packing density
- Die-cast shell
- Chuck-type strain relief for optimized cable retention
- Precision-machined one-piece contact
Neutrik NP2X-B Specs
| Product | |
| Connection Type | Plug |
| Gender | Male |
| Electrical | |
| Contact Resistance | Depends on mating connector MOhms (inner) |
| Dielectric Strength | 1 kVDC |
| Insulation Resistance | >2 GOhms (initial) |
| Rated Current Per Contact | Depends on mating connector A |
| Rated Voltage | < 50 V |
| Mechanical | |
| Cable O.D. | 4 to 7 mm |
| Lifetime | >1000 mating cycles |
| Wire Size | 1 mm², 18 AWG |
| Wiring | Solder contacts |
| Material | |
| Bushing | Polyacetal (POM) + PU |
| Contact Plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Black chromium |
| Strain Relief | Polyacetal (POM) |
| Environmental | |
| Standard Compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -4 to 149°F (-20 to 65°C) |
| Package Weight | 0.055 lb |
| Box Dimensions (LxWxH) | 3.55 x 1.85 x 0.65" |
Neutrik NP2X-B Reviews
OK for what it is
Good quality and design. I've used these for years for many clients. I prefer the smaller G&H type of plugs.
As expected
Arrived on time, packaged well. Does what its supposed to do
Good product
Easy to solder. Feels secure. Prob no need for shrink wrap
The Plug
I am re wiring my studio. I bought a audio cable tester, and discovered that many of my cables were disconected After using this plug I felt the difference. It was easy to use the solder, and now i forgot about it, in other words, it's working very well.
Awesome 1/4� plug
Neutrik NP2X-B 1/4� phone plug is my choice for making guitar cables. I real like these plugs.
First Time User
I have always used Switchcraftt which are great on thier own but these are really nice with a unique assemby method.
