Description
- 2-Pole
- Nickel Contacts
- Die-Cast Nickel Slimline Shell
- For Guitars & Other Audio Applications

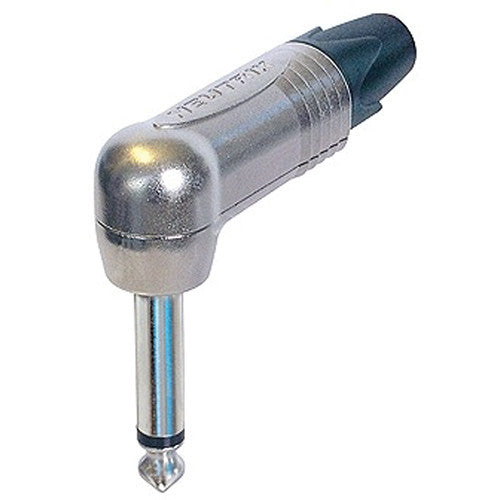

The Neutrik NP2RX Professional Right-Angle 1/4" Phone Plug sports a thin A-gauge 1/4" plug with a chuck-type strain relief. Its slimline shell features a width of 0.57� (14.5mm), and its one-piece tip contact� constructed without rivets�helps avoid common connection problems, such as hooking up in a socket or breaking off the tip.
This plug is suitable for guitar-connection applications, other audio cables, snakes, speakers, amplifiers, and mixing desks.
- Notable Features
-
- All-metal housing to help ensure durability and EMI protection
- Extra-slim 1/4" plug for high packing density
- Die-cast shell
- Chuck-type strain relief for optimized cable retention
- Precision-machined one-piece contact
| Product | |
|---|---|
| Connection Type | Plug |
| Gender | Male |
| Electrical | |
|---|---|
| Contact Resistance | N/A |
| Dielectric Strength | 1 kVDC |
| Insulation Resistance | >2 GOhms (initial) |
| Rated Current Per Contact | Depends on mating connector A |
| Rated Voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 4 to 7 mm |
| Lifetime | >1000 mating cycles |
| Wire Size | 1 mm², 18 AWG |
| Wiring | Solder contacts |
| Material | |
|---|---|
| Bushing | Polyacetal (POM) + PU |
| Contact Plating | 2 µm Ni (Su) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Nickel |
| Strain Relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Standard Compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -4 to 149°F (-20 to 65°C) |
| Packaging Info | |
|---|---|
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 7.0 x 4.1 x 0.8" |
- Limited 180-Day Warranty
