- LC-Duplex Connector Compatibility
- IP65/52 Water/Dust Resisstance Rating
- Silicone Gasket Provides Dust Protection
- Push-Pull Locking Mechanism
- LC-Duplex Rear Connection
- Color Coded Sealing Mode Identifier

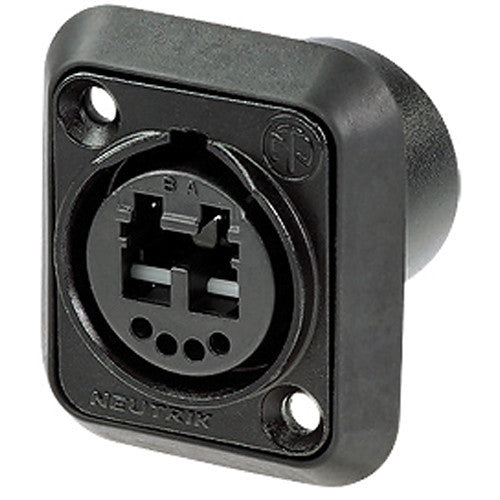

The Neutrik NO2-4FDW-1-A opticalCon DUO Chassis Connector is D-shaped, female, and works with both opticalCon and standard LC-Duplex connectors. The connector is dust and water resistant, achieving an IP65 rating when mated with a male connector, and using the included rubber gasket. Mounting the connector without the rubber gasket will save some space, but lowers the IP rating to 52.
It features a push-pull mechanism that has a built-in shutter with a silicone gasket that protects the optical connection from dust and dirt. It accepts standard LC connectors on the rear, which simplifies installation, and includes black, blue, and green color coded rubber seals that can be used to identify the fiber mode.
In the Box
Neutrik NO2-4FDW-1-A opticalCon DUO Chassis Connector
- 3 x Color Coded Rubber Seals
- Limited 1-Year Warranty
| Electrical |
| Contact Resistance | < 7m? (inner) |
| Dielectric Strength | 1.5kVDC |
| Insulation Resistance | > 2G? (initial) |
| Rated Current Per Contact | 6A |
| Rated Voltage | 50V
Note: improved contacts to allow indoor camera routing applications (pollution degree 1, overvoltage category 1) acc. to IEC 60664 up to 240 V ac. |
| Ground Contact | Faston 2.8 x 0.5 (soldering possible) |
| Mechanical |
| Gender | Female |
| Insertion Force | < 45 N |
| Withdrawl Force | < 45 N |
| Lifetime | > 5000 Mating cycles |
| Locking Force | 1000 N |
| Locking Device | Push-Pull |
| Mounting Direction | Front |
| Chassis Shape | D |
| Optical |
| Insertion Loss | < 0.4 dB/connection |
| Optical Connector | LC-Duplex Feedthrough |
| Material |
| Contacts | Bronze(CuSn6) |
| Insert | Polyamide (PA 6, PBT 30% GR, PBT 50% GR) |
| Shell | Zinc die cast (ZnAl4CU1) |
| Shell Plating | Black Chromium |
| Split Sleeve | Ceramics |
| Packaging Info |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 4.5 x 3.6 x 0.5" |
