Description

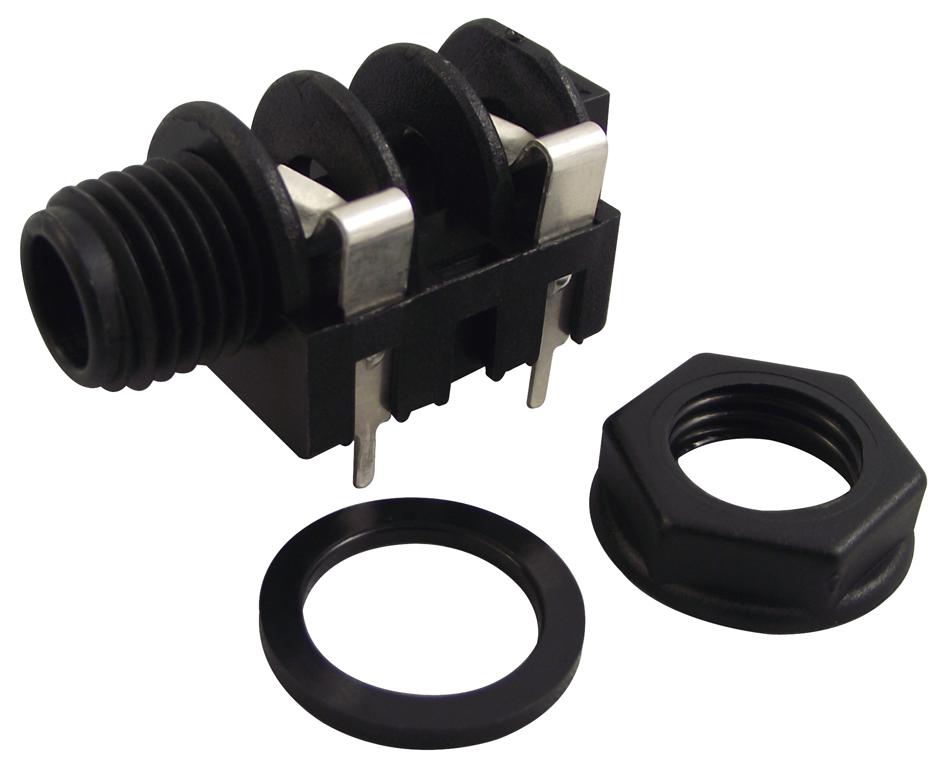

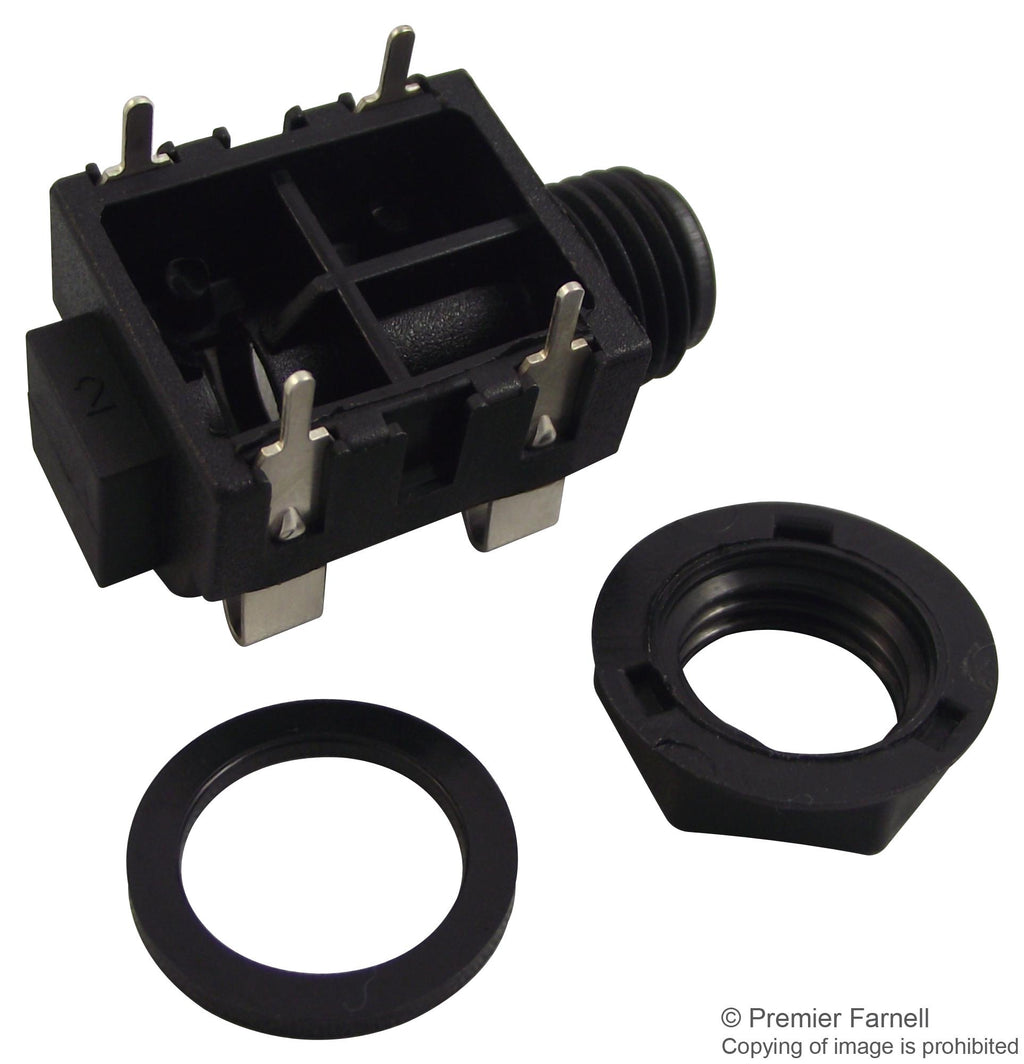

The NMJ4HFD2 from Neutrik is a switched 1/4" mono jack with a full threaded nose and straight PCB pins . It has a wide body and extremely durable contacts and mates with all mono A-gauge plugs according to EIA RS453 standard.
- Available with 2 switching contacts
- Bronze with silver plating contacts and polyamide shell
- Approved by EIA RS 453, IEC 60603-11 standards
- Temperature range from -25°C to +70°C
- Retention spring locking device
- Greater than 10000 mating cycles
- Rated current per switch contact is 0.5A at 50V
- Panel thickness is 3mm
- Contact resistance is less than 30mohm
- Insulation resistance is greater than 1Gohm at 500VDC
Audio, Consumer Electronics
ContentsSwitched 1/4" mono jack, Mounting nut.
Footnotes Mounting hardware for half threaded nose must be ordered separately.Other details
| Brand | NEUTRIK |
| Part Number | NMJ4HFD2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Drawing EN | |
| 3D Product Image EN | |
