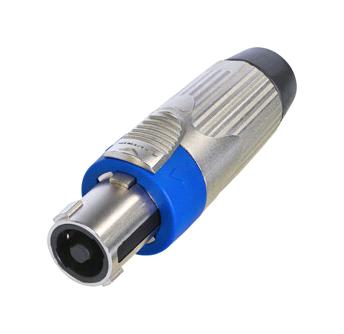

The NLT4FXX from Neutrik is a 4 Pole speakON socket cable connector that is especially designed for heavy duty amplifier loudspeaker applications like professional touring.
- IEC 61984 certified IEC 6236/-1 compliant
- Uses precise Quick Lock system
- Weatherproof built-in gasket meets IP54 protection class in mated condition
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Contact resistance: < 2mR
- Dielectric strength: 2.8kV AC
- Insulation resistance: >0.1 GR (afterpheat)
- Rated current per contact: 30A RMS continuous
- Rated voltage: 250V AC
- Outside cable diameter: 9 - 16mm
- Wiresize: 6mm² / 10 AWG
Warnings speakON is NOT to be used as an AC mains or power supply connector
Other details
| Brand |
NEUTRIK |
| Part Number |
NLT4FXX |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
