Neutrik NL2MPXX Overview

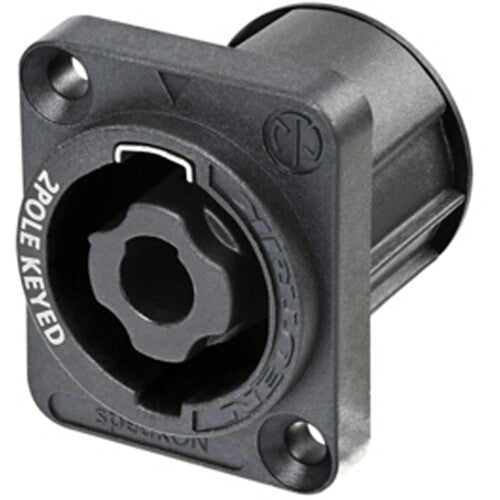

Install your own speakON chassis connector with the Neutrik NL2MPXX, a 2-pole speakON panel-mount connector intended for use with loudspeaker and amplifier interconnections. It features a metal locking system, and only makes contact once fully clicked into place. This receptacle has a current rating of 24A, and features glass-reinforced materials to maintain durability over time. This particular model offers a black D-sized flange as well as countersunk through-holes and 3/16" flat tabs. Its design, when fully locked, is airtight.
Note:
Please note: This unit will not intermingle with a 4-pole cable connector.
- IEC 61984 certified > IEC 62368-1 compliant
- Glass reinforced V-0 materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal insert in locking area
- Airtight design�optimized for speaker applications
Neutrik NL2MPXX Specs
General
Compatibility |
Not Specified by Manufacturer |
Environmental
Operating Temperature |
-22 to 176°F / -30 to 80°C |
Physical
Color |
Black |
Dimensions |
Not Specified by Manufacturer |
Weight |
Not Specified by Manufacturer |
Packaging Info
Package Weight |
0.035 lb |
Box Dimensions (LxWxH) |
3.65 x 3.65 x 1.1" |
