Description

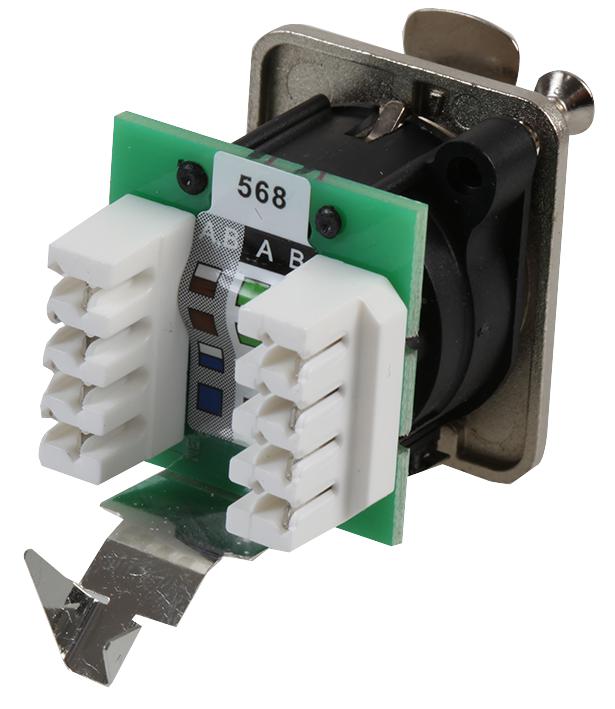

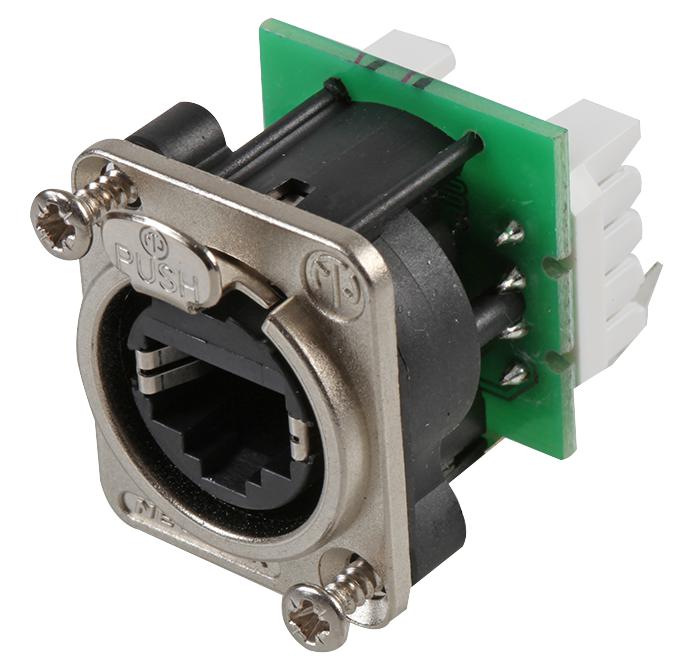

The NE8FDV-YK from Neutrik is an etherCON receptacle chassis connector. It is a panel mount receptacle with IDC punch down terminals, D-sized metal flange with latch lock and maximum panel thickness 4mm. The etherCON receptacle chassis connector is a ruggedized and lockable RJ45 connector system optimized for pro audio, video and lightning network applications. The chassis connector is shaped to fit into standardized panels out of the entertainment industry.
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
- Selectable ground panel connection, easy and quick mounting using Krone punch down terminals
- Bronze with silver contacts and zinc die-cast with nickel shell
- Wire size of 26AWG to 20AWG (0.14mm² to 0.5mm² )
- Rated voltage is 50V, rated current per contact is 1.5A
- Frequency range from 1MHz to 100MHz
- Flammability rating meets UL94V-0
Communications & Networking, Industrial, Communications & Networking
ContentsChassis connector, Mounting screws.
Footnotes This product does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.Other details
| Brand | NEUTRIK |
| Part Number | NE8FDV-YK |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Drawing EN | |
