Description

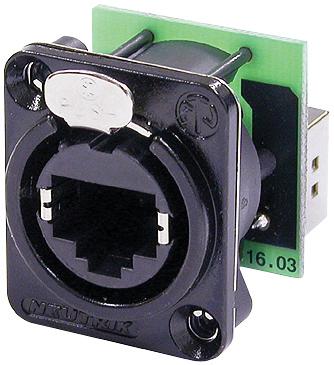

The NE8FDP-B from Neutrik is a RJ45 feed through receptacle in black D shape metal flange. The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connector is shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
- Approved latch lock system
- Mountable from the front or rear of the panel
- Bronze (CuSn8) contacts with 0.2µm Au over Ni plating
- Zinc die-cast (ZnAl4Cu1) shell with black chromium plating
- UL94 V-0 flammability
- Lifetime > 1000 mating cycles
- Rated current per contact is 1.5A
- Rated voltage is 50VAC
- TIA/EIA 586B, IEC11801 compliance
- Temperature range from -30°C to 80°C
Audio, Lighting, Communications & Networking, Industrial
Footnotes Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S cables.Other details
| Brand | NEUTRIK |
| Part Number | NE8FDP-B |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Drawing EN | |
