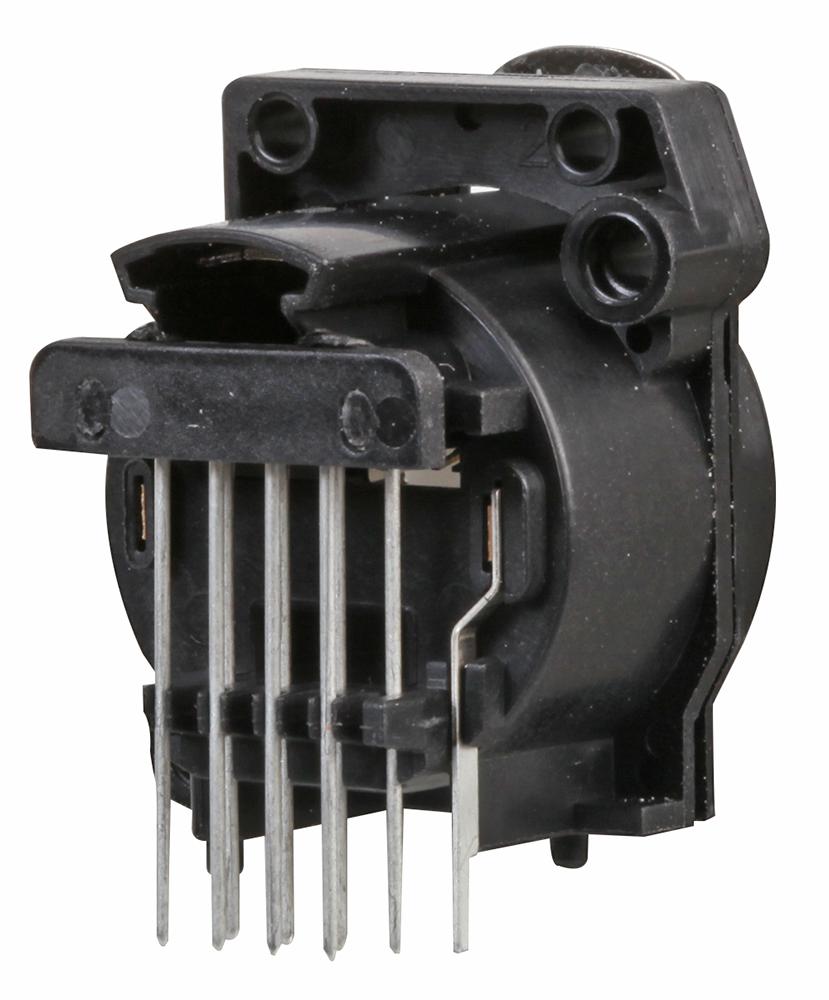

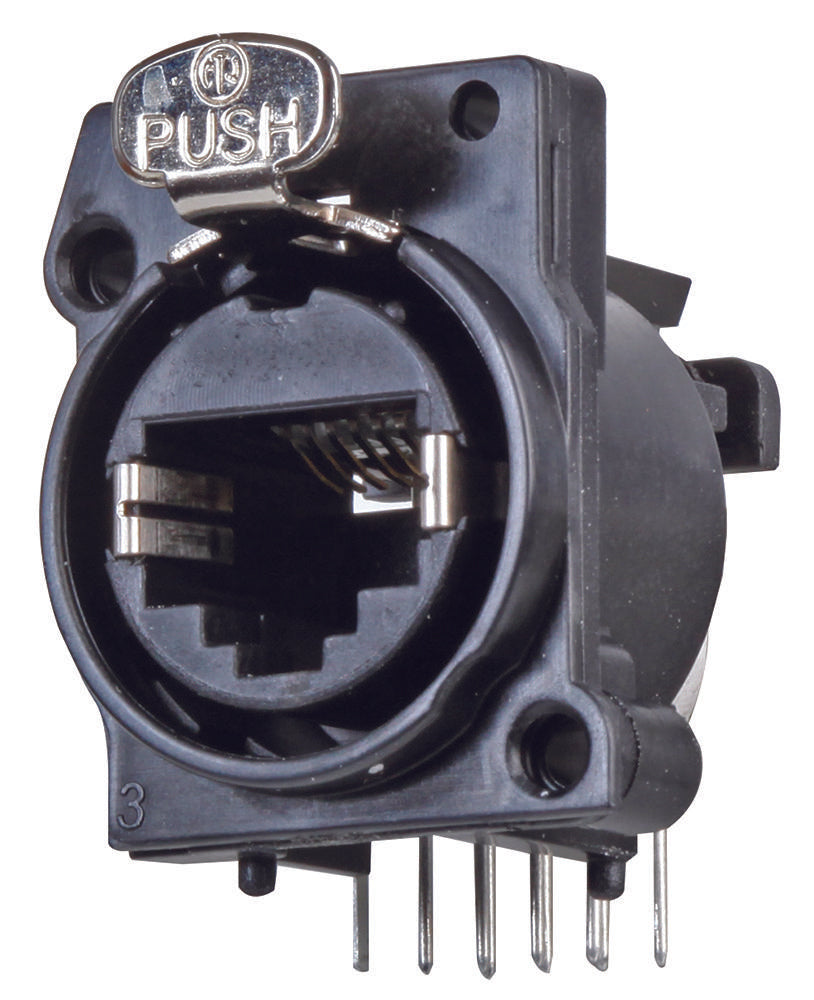

The etherCON Series is a ruggedised and lockable RJ45 connector system, optimised for pro audio, video and lighting network applications. The chassis connectors are shaped to fit into standardised panels out of the entertainment industry. Horizontal PCB mount RJ45 receptacle, Cat5e, A-Series cutout with latch lock, max. panel thickness 3mm.
- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Most space saving and cost effective design
- Isolated to panel ground
- PoE+ compliant according to 802.3at Type2
- Cat5e performance according to ISO/IEC 11801 and TIA/EIA 568-C.2
Footnotes Attention! Does not intermate with Cat6 cable connector NE8MC6-MO and NKE6S* cables.
Other details
Brand |
NEUTRIK |
Part Number |
NE8FAH-C5 |
Quantity |
Each |
Technical Data Sheet EN |
|
Drawing EN |
|
