- Black Metal Housing & Gold Contacts

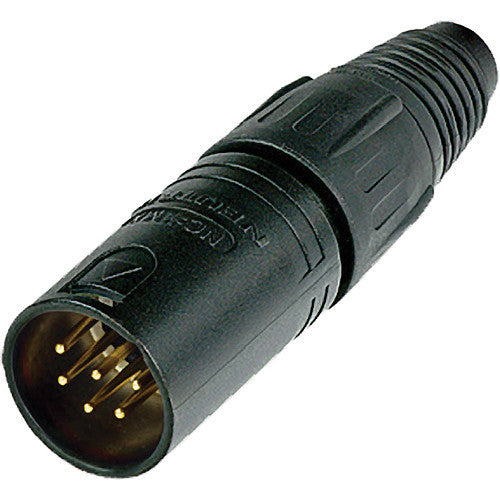

The Neutrik NC6MX-B 6-Pole Male Cable Connector is an industry standard XLR cable connector. It is easy to assemble since it has only 4 parts and no screws. It features a compact design with a sturdy die-cast shell and consists of a fiberglass reinforced hard plastic insert and a chuck-type strain relief for secure clamping of all cables.
- Rugged and durable zinc die-cast shell
- Chuck-type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Colored rings and boots (sold separately) available for coding and marking
- UL recognized components
| Connection Type | XLR |
| Gender | Male |
| Electrical |
| Capacitance | Between Contacts: <7 pF |
| Contact Resistance | <3 m? (inner) |
| Dielectric Strength | 1.5 kVDC |
| Insulation Resistance | >2 G ? (initial) |
| Rated Current Per Contact | 7.5 A |
| Rated Voltage | 50 V |
| Mechanical |
| Insertion Force | <20 N |
| Withdrawal Force | <20 N |
| Lifetime | >1,000 mating cycles |
| Wire Size | 1 mm² maximum
18 AWG maximum |
| Wiring | Solder contacts |
| Locking Device | Latch lock |
| Chassis Shape | D |
| Material |
| Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking Element | St3K32 (latch) / Ck 67 (spring) |
| Shell | Zinc die-cast (ZnAl4Cu1)
Plating: Black chromium |
| Environmental |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Range | 2.63 x 2.71" (67 to 69 mm) |
| Diameter | Ø0.74" (Ø19 mm) |
| Packaging Info |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 2.6 x 1.3 x 1.1" |
In the Box
Neutrik NC6MX-B 6-Pole Male Cable Connector
