- Black Metal Housing
- Gold Contacts
- Zinc Die-Cast Shell
- Chuck-Type Strain Relief
- Boot with Polyurethane Gland

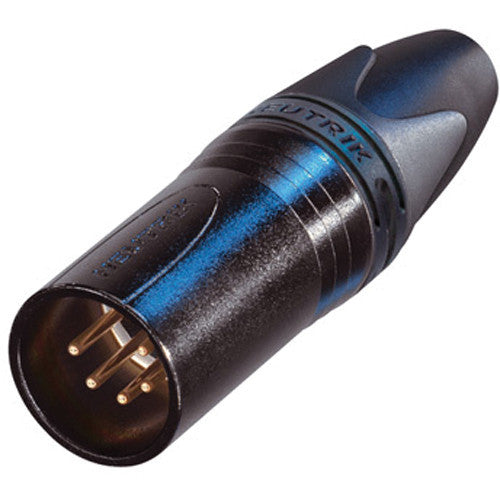

Featuring a black chromium housing, the Neutrik $NC5MXX-B provides a 5-pin male XLR connection point. It offers gold contacts, a chuck-type strain relief for quick assemblage, a polyurethane gland in its boot to protect against bending stress, and a zinc die-cast shell.
| Product |
| Connection Type | XLR |
| Gender | Male |
| Electrical |
| Capacitance | ? 7 pF |
| Contact Resistance | ?3 MOhms (inner) |
| Dielectric Strength | 1,5 kVdc |
| Insulation Resistance | >10 GOhms (initial) |
| Rated Current Per Contact | 7.5 A |
| Rated Voltage | 50 V |
| Mechanical |
| Cable O.D. | 3.5 to 8 mm |
| Insertion Force | ?20 N |
| Withdrawal Force | ?20 N |
| Lifetime | >1000 mating cycles |
| Wire Size | Maximum 1.0 mm²
Maximum 18 AWG |
| Wiring | Solder contacts |
| Locking Device | Latch lock |
| Construction |
| Boot | Polyurethane |
| Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Locking Mechanism | Zinc die-cast (ZnAl4Cu1) |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30% GR) |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Black chromium |
| Strain Relief | Polyacetal (POM) |
| Environmental |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Dimensions | Diameter: 0.75" (19 mm)
Length: 2.68 to 2.76" (68.1 to 70.1 mm) |
| Packaging Info |
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 5.6 x 3.3 x 0.3" |
In the Box
Neutrik NC5MXX-B 5-Pole Male Cable Connector
