Description

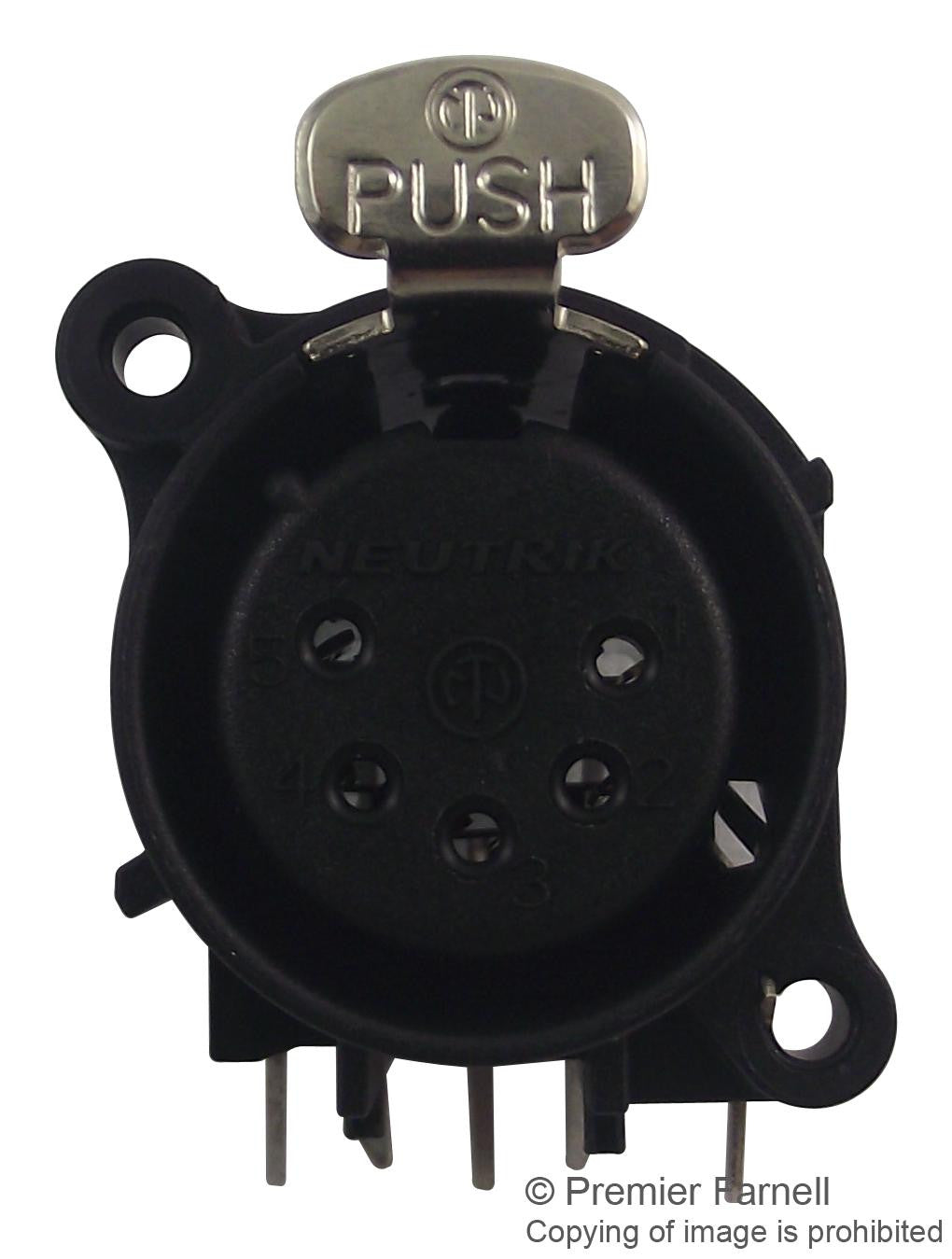

The NC5FAH from Neutrik is a horizontal PCB mount 5 pole female XLR receptacle chassis connector. This latch lock device has a separate ground contact connected to mating connector shell and front panel thus there is no connection to pin 1.
- Smallest XLR receptacles, highest packing density
- Tulip type female contact with 'A' chassis shape
- Polyamide (PA 6.6 30 % GR) shell, bronze (CuSn6) contacts with steel Ck67 locking element
- Dielectric strength of 1.5KVDC
- 3A rated current per contact and rated voltage < 50V
- Lifetime > 1000 mating cycles
- IP 40 protection class
- Flammability rating meets UL 94 HB
- IEC 61076-2-103 standard compliance
- Temperature range from -30°C to +80°C
Applications
Audio, Lighting
Product details
| No. of Contacts | 5Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Socket |
| Product Range | Combo A Series |
| Connector Body Material | Plastic Body |
| Connector Mounting | PCB Mount |
Other details
| Brand | NEUTRIK |
| Part Number | NC5FAH |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
