- Black Metal Housing
- Gold Contacts
- Solder Cups
- Standardized D-Sized 24mm Panel Cutout
- Zinc Diecast Shell
- Latch-Locking Device

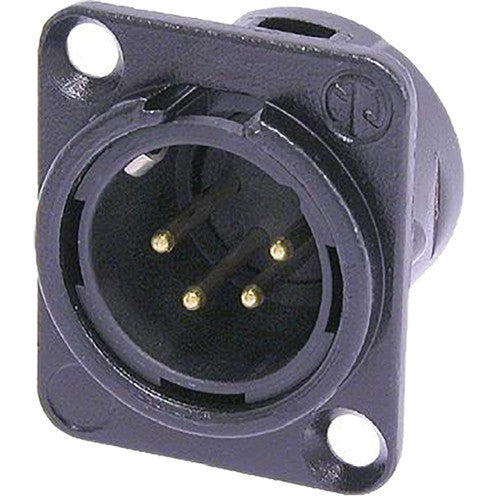

Offering a black chromium housing and gold contacts, the Neutrik NC4MD-L-B-1 Male Receptacle Connector (4-Pole) is designed specifically to fit within the kinds of wall panels often utilized in studios. It features silver contacts, solder cups, a standardized D-sized 24mm panel cutout, a latch-locking device, and a zinc diecast shell.
| Connection Type | XLR |
| Gender | Male |
| Electrical |
| Capacitance | Between Contacts: <7 pF |
| Contact Resistance | <5 MOhms (inner) |
| Dielectric Strength | 1.5 kVDC |
| Insulation Resistance | >10 GOhms (initial) |
| Rated Current Per Contact | 10 A |
| Rated Voltage | 50 V |
| Mechanical |
| Insertion Force | <20 N |
| Withdrawal Force | <20 N |
| Lifetime | >1,000 mating cycles |
| Wire Size | 1.5 mm² maximum
16 AWG maximum |
| Wiring | Solder contacts |
| Locking Device | Latch lock |
| Chassis Shape | D |
| Material |
| Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking Element | Stahl Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1)
Plating: Black chromium |
| Environmental |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Dimensions (ø x H x W) | 0.92 x 1.22 x 1.02" (23.60 x 31 x 26 mm) |
| Packaging Info |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 1.1 x 1.0 x 0.75" |
In the Box
Neutrik NC4MD-L-B-1 4-Pole Male Receptacle Connector
