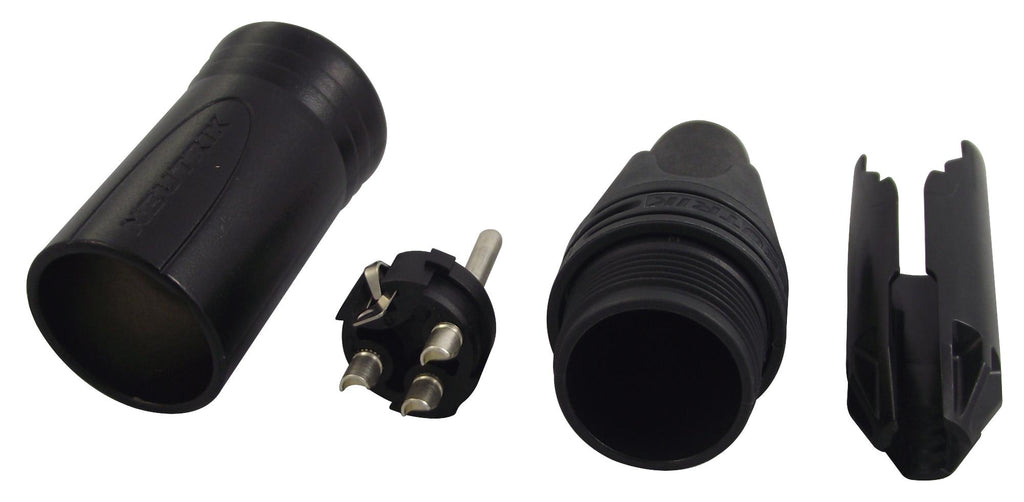

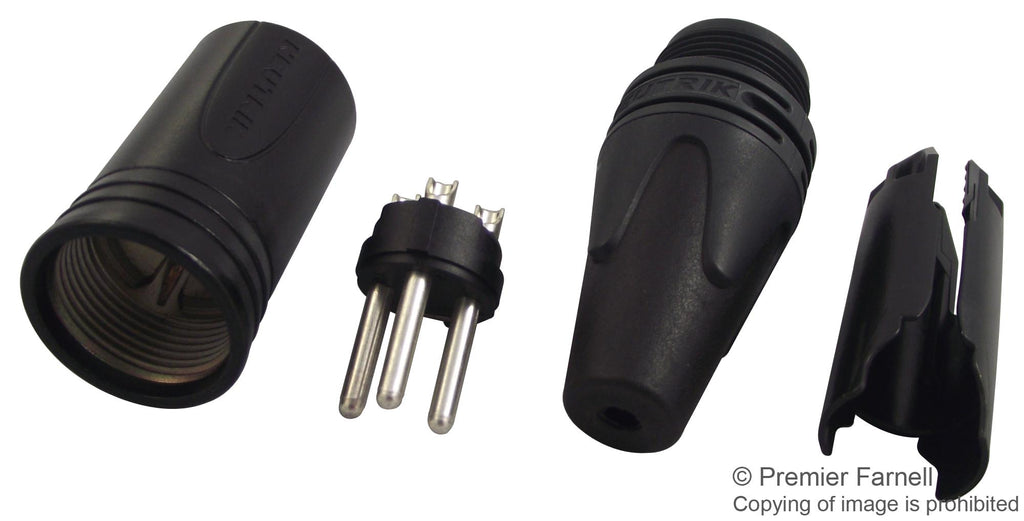

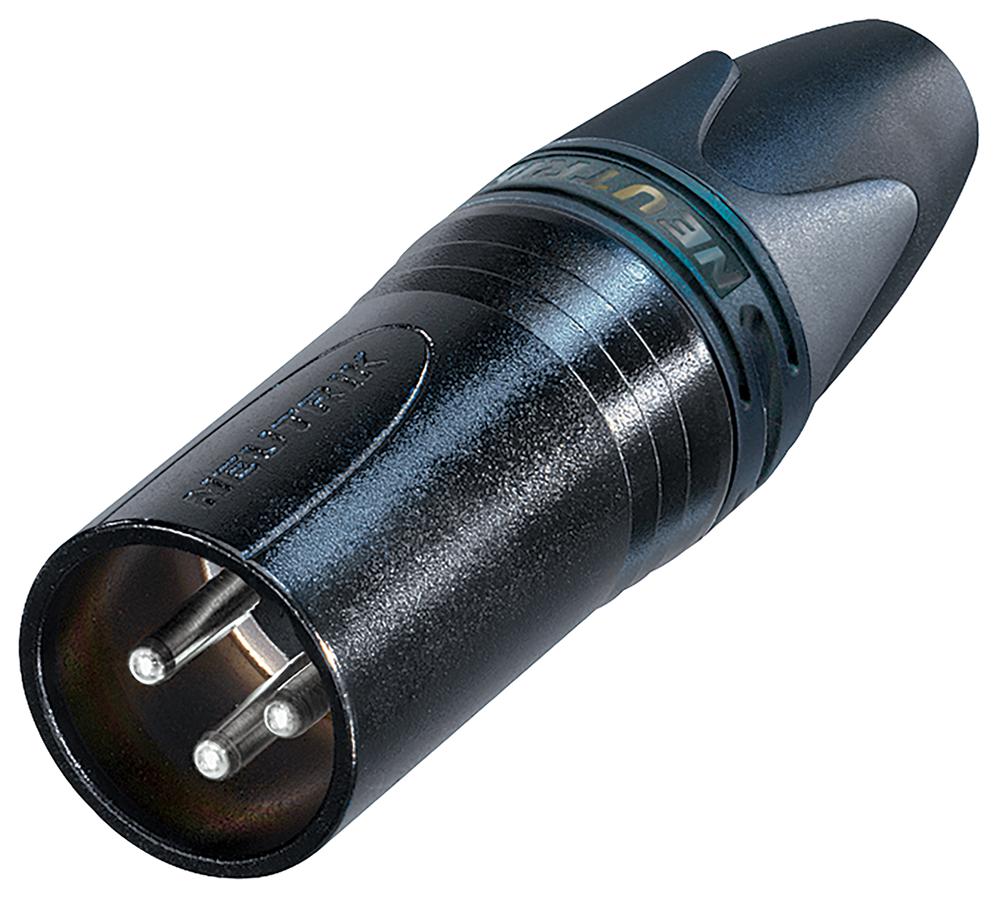

The NC3MXX-BAG from Neutrik is a 3 pole male XLR cable connector with black metal housing and silver contacts. This male connector with improved locking recess without "window" more stringent housing increases durability, improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster. Boot with polyurethane gland gives high protection to cable bending stresses, colour rings and boots available for coding or identification. Internal thread on shell is well protected against any damage and rugged zinc die-cast shell with long lasting and valuable ergonomic design.
- Brass (CuZn39Pb3) contacts and polyamide insert
- Polyurethan boot with 2µm Ag contact plating
- Zinc die-cast (ZnAl4Cu1) shell with black chromium shell plating
- Wire size of 14AWG
- UL94 HB flammability and IP40 protection class
- Polyacetal (POM) strain relief
- Cable outer diameter of 3.5mm to 8mm
- Lifetime >1000 mating cycles
- Compliance to IEC 61076-2-103 & solderability IEC 68-2-20 standard
- Temperature range from -30°C to 80°C
Other details
| Brand |
NEUTRIK |
| Part Number |
NC3MXX-BAG |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
| Drawing EN |
|
