Description

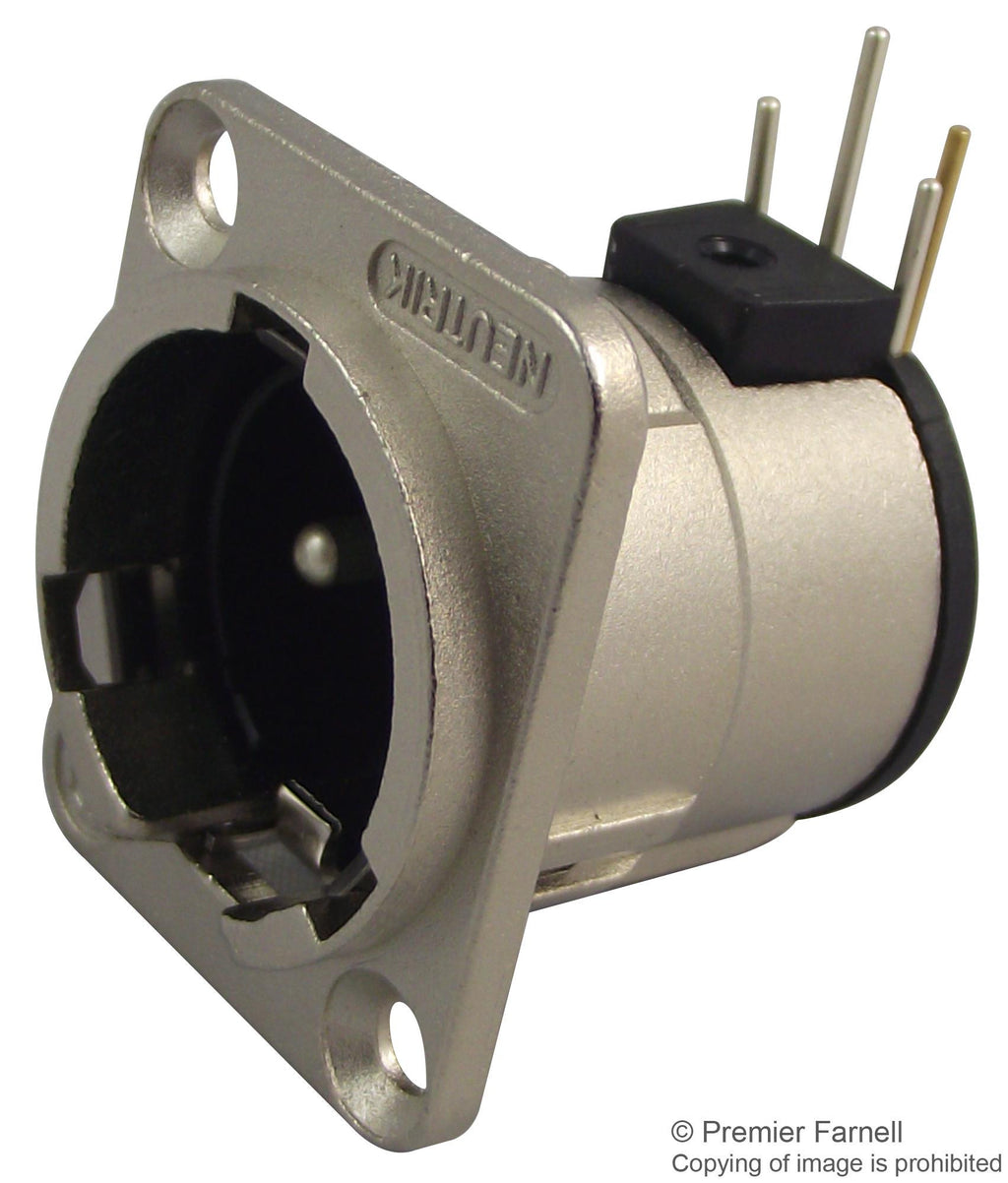

The NC3MD-H from Neutrik is a horizontal PCB mount 3 pole male XRL receptacle chassis connector. The polyamide (PA 6.6 30 % GR) insert of this receptacle is removable from rear of connector and locked into place by internal latch, permitting assembling and testing of PCB before assembling into housing.
- D shape metal shell
- Optimal RF protection using 3 shield contacts
- Latch lock device, front or rear panel mount
- Brass (CuZn35Pb2) contact with silver plating
- Zinc die-cast (ZnAl4Cu1) shell with nickel plating, steel Ck67 locking element
- Dielectric strength of 1.5KVDC, 6A rated current per contact and rated voltage < 50V
- Lifetime > 1000 mating cycles
- UL ECBT2.E135070 certified
- Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class
- Temperature range from -30�C to +80�C
- -30 to +80�C Temperature range
Applications
Audio, Consumer Electronics
Product details
| No. of Contacts | 3Contacts |
| Contact Plating | Silver Plated Contacts |
| Gender | Plug |
| Product Range | D Series |
| Connector Body Material | Metal Body |
| Connector Mounting | Panel Mount |
Other details
| Brand | NEUTRIK |
| Part Number | NC3MDH |
| Quantity | Each |
| Drawing EN |  |
| Manufacturer Product Page EN | |
| 3D Product Image EN | |
