| ₹ 276.77 includes GST and import duties. | |
| B2B customers can avail ₹ 42.21 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

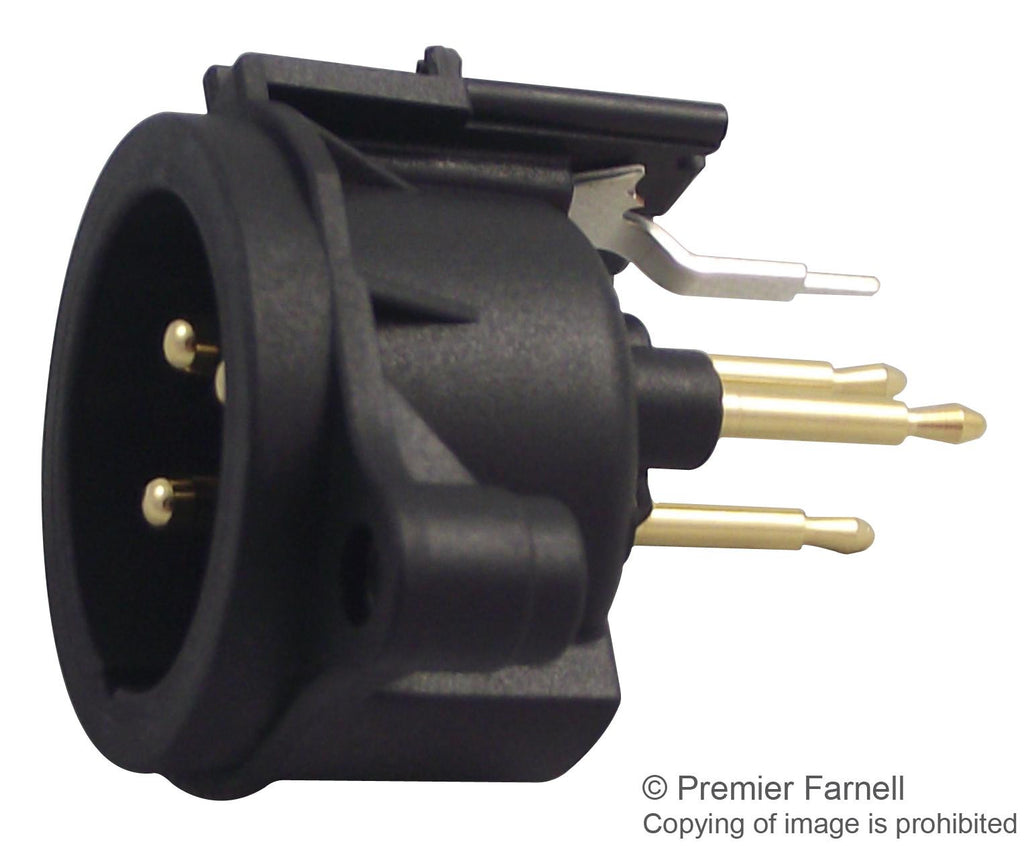

The NC3MAV is a 3-pole Male XLR Receptacle with latch locking device, brass contacts, grounding, separate ground contact to mating connector shell and front panel. This A series vertical PCB mount receptacle has hard gold plated contacts with polished contact areas, black plastic flange and polyamide insert.
- Smallest XLR receptacles, highest packing density
- Polished contact areas and hard gold plating
- UL94V-0 Flammability rating
- IP40 Protection rating
- Complies with IEC 61076-2-103 standard
- Solderability complies with IEC 68-2-20 standard
- <=6mR Contact resistance
- >10GR Insulation resistance
- 6A Current rating per contact
- <50V Voltage rating
- -30 to +80�C Temperature range
Applications
Audio
Product details
| No. of Contacts | 3Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Plug |
| Product Range | A Series |
| Connector Body Material | Plastic Body |
| Connector Mounting | PCB Mount |
Other details
| Brand | NEUTRIK |
| Part Number | NC3MAV |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Product Page EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 271.23 |
| 3-5 | ₹ 268.47 |
| 5-10 | ₹ 262.93 |
| 10+ | ₹ 257.4 |
Bulk discount will be automatically applied during checkout based on quantity.
