Neutrik NC3FRX-B NC3FRX-B XLR Connector 3 Contacts Socket Cable Mount Gold Plated Metal Body RX

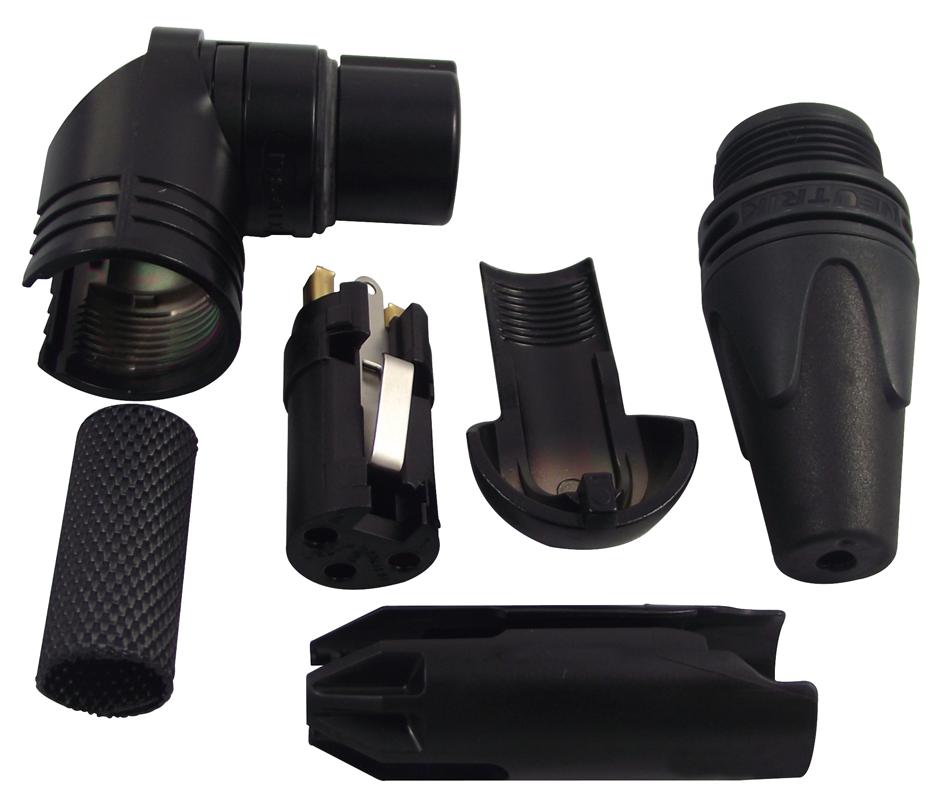

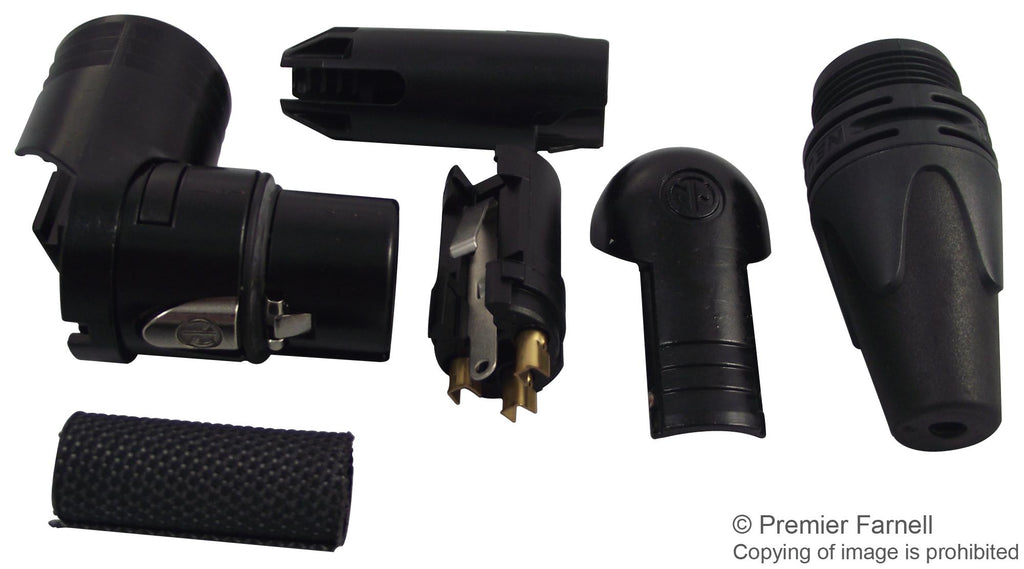

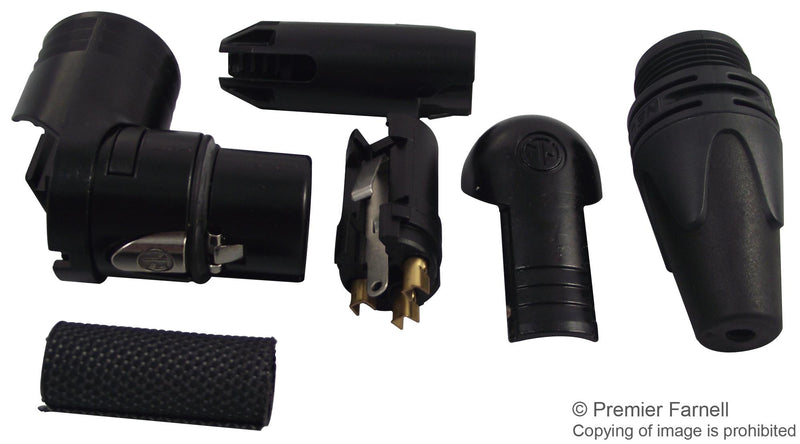

The NC3FRX-B from Neutrik is a 3 pole right angle extra slim female XLR cable connector. This connector has boot with polyurethane gland gives high protection to cable bending stresses, female contact incorporates a solder barrier to prevent solder running into the contact mating area and unique cage design of female contact for low contact resistance and high integrity. This female connector with improved solid metal latch which is larger and easier to handle.

• Additional ground spring contacts for better shell ground continuity
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier & faster
• Bronze (CuSn8) contacts with gold plating, polyacetal (POM) strain relief
• Polyamide (PA 6.6 30 % GR) insert, zinc die-cast (ZnAl4Cu1) shell with black chromium plating
• Coloured rings and boots available for coding or identification
• Sleek, valuable, handy and ergonomic design
• Dielectric strength of 1.5KVDC, 16A rated current per contact and rated voltage < 50V
• Lifetime > 1000 mating cycles, maximum wire size of 14AWG (2.5 mm²)
• Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class
• UL ECBT2.E135070 and cUL ECBT8.E135070 certified

Applications

Audio, Consumer Electronics

Other details

Brand	NEUTRIK
Part Number	NC3FRX-B
Quantity	Each
Manufacturer Catalogue EN
Manufacturer Product Page EN
Product Change Notice EN
Drawing EN
