Description

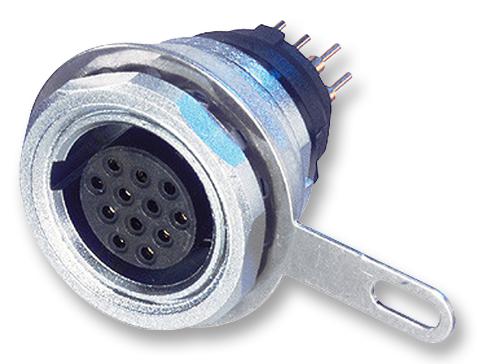

The MPF12-V from Neutrik is a miniCON 12 pole female chassis circular connector. This vertical PCB mount miniCON connector with flexible and compact design is perfectly suitable for multipin applications. The rugged and precisely machined all metal design of this miniature connector offers a push-pull self locking system and stands out by an excellent cost/performance ratio.
- Velour chromium housing
- Contact resistance is less than or equal to 8mohm
- Rated voltage is less than 50V and rated current per contact is 3A
- Wire size is 20AWG (0.5mm²)
- Rear mounting style
- Bronze contacts with gold plating, zinc die-cast shell and polyamide insert material
- Flammability rating meets UL94 V-0
- IP 5X protection class
- Temperature range from -30°C to 80°C
Industrial
Other details
| Brand | NEUTRIK |
| Part Number | MPF12-V |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
