Description

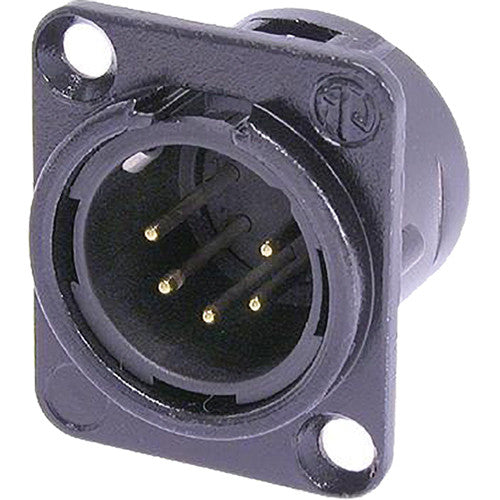

Neutrik NC5MD-L-B-1 Overview
Sporting a robust construction, a black metal housing, solder cups and gold contact-plating, and brass contacts, the Neutrik Recepticle Connector (5-Pole) XLR-male is for use with any industry-standard, D-sized 24mm panel cutout. The unit is UL-compliant, certified by that body for use in data, signal, control, and power applications.
Neutrik NC5MD-L-B-1 Specs
| Connection Type | XLR |
| Gender | Male |
| Electrical | |
| Capacitance | Between Contacts: ?7 pF |
| Contact Resistance | ?5 mOhms |
| Dielectric Strength | 1.5 kVDC |
| Insulation Resistance | > 10 GOhms (initial) |
| Rated Current Per Contact | 7.5 A |
| Rated Voltage | <50 V |
| Mechanical | |
| Insertion Force | ?20 N |
| Withdrawal Force | ?20 N |
| Lifetime | >1,000 mating cycles |
| Wire Size | 1 mm² maximum 18 AWG maximum |
| Wiring | Solder contacts |
| Locking Device | Latch lock |
| Chassis Shape | D |
| Material | |
| Contact Plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking Element | Steel Ck67 |
| Shell | Zinc die-cast (ZnAl4Cu1) Plating: Black chromium |
| Environmental | |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -22 to 176°F / -30 to 80°C |
| Dimensions | Not specified by manufacturer |
Packaging Info
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 3.2 x 1.35 x 1.05" |
