- Gold Plated Cage Type Center Contact
- 75 ? Design
- Isolated Panel Mount
- Standard D-Shape Housing

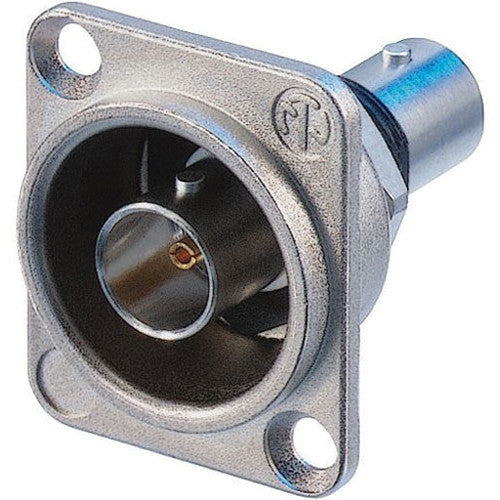

The Isolated BNC Chassis Connector in D-Shape Housing (Nickel) from Neutrik is a feed-through connector which offers a true 75 ? design for serial and digital (HD) signals. It features a machined brass connector body that provides an extremely rugged and non-abrasive connection over long term use. In addition, it is recessed and therefore well protected in a D-shape housing (audio industry standard).
- The BNC Chassis Connector features a gold plated cage type center contact, which provides the best possible shielding and lowest contact resistance.
- It has an extremely robust closed contact design.
- It offers a true 75 ? design that meets stringent HD requirements.
- The BNC Chassis Connector's isolated panel mount feature solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential.
- Its standard D-shape housing provides flush mounting and protection from damage.
| Connection Type | Female BNC 75 ? |
| Electrical |
| Signal Type | HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV |
| Contact Resistance | ? 3 m ? (inner) |
| Comment | ? 2 |
| Dielectric Strength | 1.5 kV DC |
| Impedance | 75 ? |
| Insulation Resistance | > 5 G ? |
| Rated Voltage | 500 V |
| VSWR | ? 1.03 / > 37 dB up to 1 GHz? 1.05 / > 32 dB up to 2 GHz ? 1.08 / > 28 dB u |
| Mechanical |
| Insertion Force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Locking Device | Bayonet |
| Mounting Direction | Front |
| Chassis | D-shape |
| Materials |
| Contacts | Brass, 0.2 µm AuCo (center contact) |
| Insert | PTFE |
| Shell | Polyacetal (POM) (insulation shell) |
| Shell Plating | Optalloy |
| Housing | D-Shape Housing: Zinc diecast gal nickel plating |
| Environmental |
| Standard Compliance | IEC 6016908, MIL 348A |
| Temperature Range | -22 to 185°F (-30 to 85°C) |
| Packaging Info |
| Package Weight | 0.04 lb |
| Box Dimensions (LxWxH) | 1.5 x 1.2 x 1.2" |
In the Box
Neutrik Isolated BNC Chassis Connector in D-Shape Housing (Nickel)
