Description

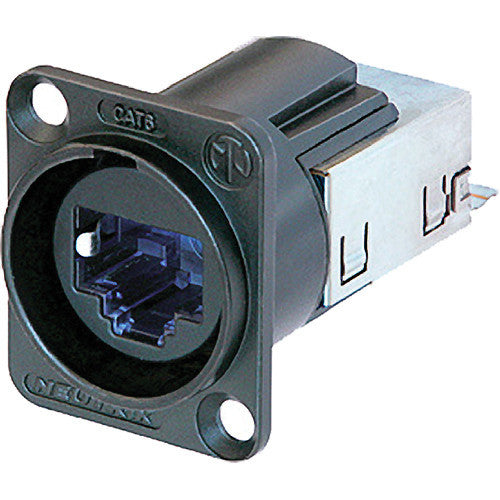

Neutrik's EtherCON CAT6 D-Shape Panel Connector has a black metal housing and secure latching system that offers a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.
- CAT6 compliant - data rate up to 10 GBit/s
- CAT6 performance - fast data transmission and high bandwidth applications
- CAT6 specifications according TIA/EIA 568B, ISO/IEC 11801, EN 50173
- IP65 - Dust and waterproof in mated condition
- Shielded system - high noise immunity and EMI protection
- Push Pull mating - secure and proven locking system
- Ground lead jumper on panel connector with selectable grounding option
- Gas-tight IDC termination without tool
| Gender | Female |
| Electrical | Contact resistance: < 10 m? (inner) Dielectric strength: 1 kVdc Frequency range: 1 - 250 MHz Insulation resistance: > 0.5 G? Rated current per contact: 1,5 A Rated voltage: 50 V Transmission performance: CAT 6 Standard compliance: TIA/EIA 586B, IEC11801 |
| Mechanical | Insertion force: ? 40 N Withdrawal force: ? 20 N Lifetime: > 1000 mating cycles Panel thickness: max. 3 mm 0.12' Wiresize: 0.5 - 0.65 mm^2 Wiresize: 24 - 22, stranded AWG 26/7 - 22/7 AWG Locking device: Push-Pull Chassis shape: D |
| Material | Contact plating: 0.7 µm Au over 1.2 µm Ni plating Contacts: Bronze (CuSn8) Insert: Polycarbonate Shell: Zinc diecast (ZnAl4Cu1) Shell plating: Black chromium Strain relief: Stainless steel |
| Environment | Flammability: UL 94 HB Protection class: IP 65 Temperature range: -10 °C to +60 °C |
| Packaging Info | |
|---|---|
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 4.1 x 3.7 x 0.7" |
