- 3-Pole XLR Female to Mono 1/4" Adapter
- Pre-Wired
- Die-Cast Shell

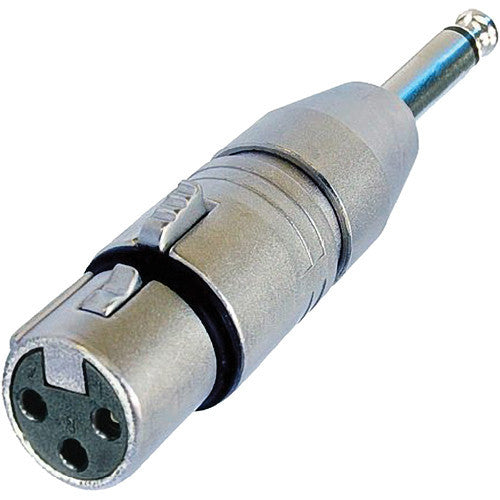

Neutrik 's 3-Pole XLR Female to Mono 1/4" Male Adapter (Tip, Sleeve Contact) is designed to bridge the gap between XLR and 1/4" connection points. This adapter has been pre-wired, and it features a die-cast shell for durability.
| Mechanical |
| Locking Device | Latch lock |
| Wiring | Wired according to IEC 268-12:
Pin 1 and 3: connected to ground
Pin 2: signal |
| Electrical |
| Contact Resistance | ? 3 mOhms (inner) (XLR) |
| Contact Resistance | ? 6 mOhms |
| Dielectric Strength | XLR: 1.5 kV dc Mono 1/4": > 1 kV dc |
| Insulation Resistance | > 2 GOhms |
| Material |
| Contact Plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) (plug) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc die-cast (ZnAl4Cu1) |
| Shell Plating | Gal Cu/Ni |
| General |
| Connector 1 | 3-Pole XLR Female |
| Connector 2 | Mono 1/4" Male |
| Packaging Info |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 2.7 x 2.1 x 0.2" |
In the Box
Neutrik 3-Pole XLR Female to Mono 1/4" Male Adapter (Tip, Sleeve Contact)
