Description

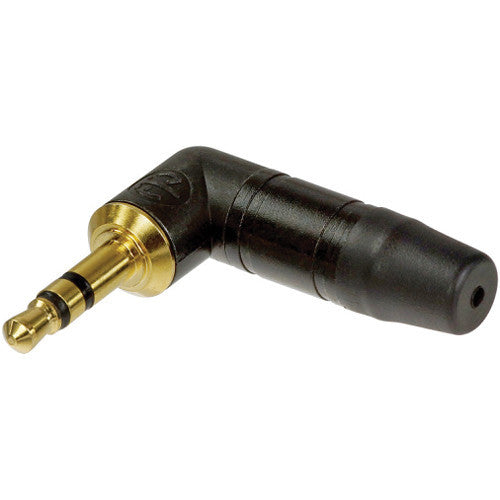

The black and gold Neutrik 3.5 mm Right-Angle Stereo Plug is a metal-bodied 3.5 mm jack plug with chuck-type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
| Connector | Male 3.5 mm plug |
| Contact Resistance | Depends on mating connector m? (inner) |
| Dielectric Strength | 1 kVdc |
| Insulation Resistance | > 2 G? (initial) |
| Rated Current Per Contact | ? 15A |
| Cable O.D. | 2 to 4.5 mm |
| Wire Gauge and Type | 24 AWG (0.22 mm 2 ) |
| Wiring | Solder contacts |
| Bushing | Brass (CuZn39Pb3) + PU, black Cr |
| Contact Plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 15 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating | Black chromium |
| Strain Relief | Polyacetal (POM) |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -4°F to 149°F (-20°C to 65°C) |
| Packaging Info | |
|---|---|
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 0.75 x 0.5 x 0.5" |
In the Box
Neutrik 3.5 mm Right-Angle Stereo Plug (Black/Gold)
- Limited 1-Year Warranty
