Description
Network Technologies HDMI Video Matrix Switch... Overview

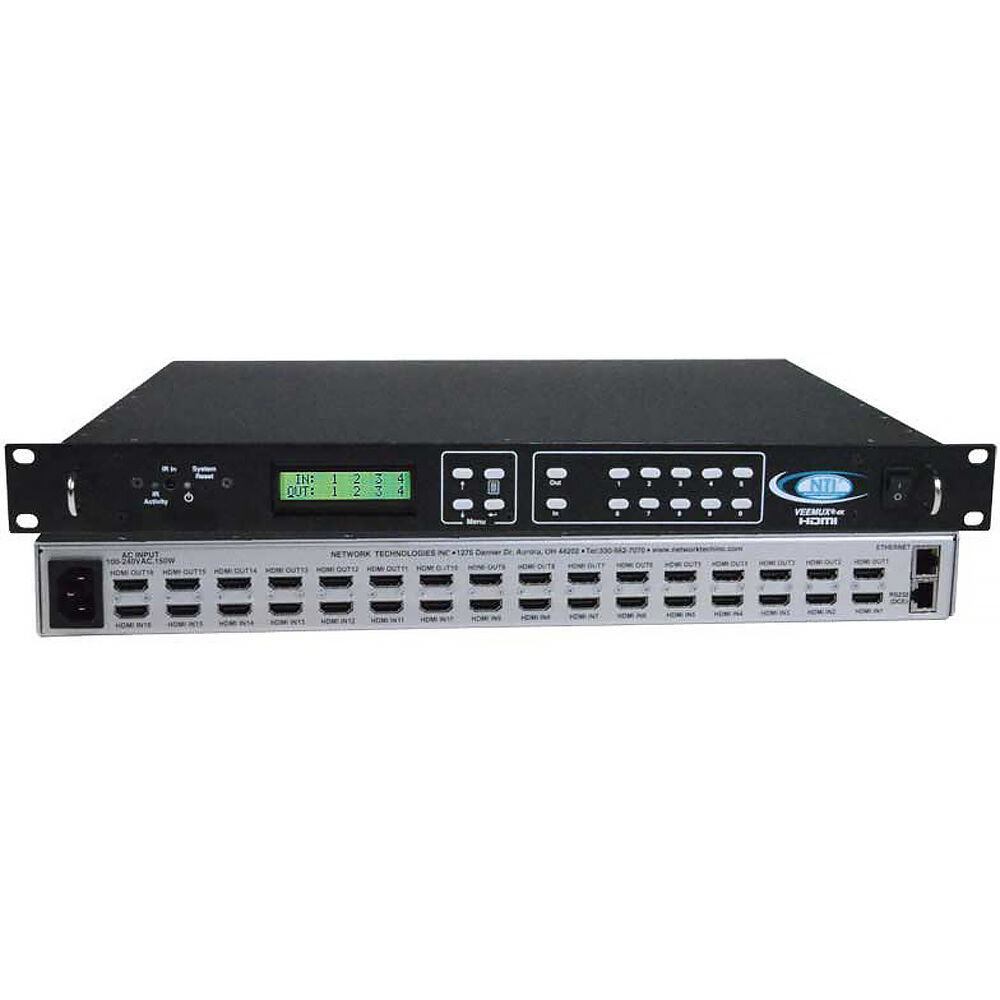

The VEEMUX 16 x 16 HDMI Video Matrix Switch from Network Technologies features a compact 1 RU rackmount design and delivers powerful, flexible video and audio routing for professional AV environments. It seamlessly connects multiple video sources to multiple destinations, such as projectors, monitors, or other HDMI-compatible devices, without the need for external interfaces.
Engineered for precision and reliability, the VEEMUX distributes signals from any input to any combination of outputs, forming a true ?matrix? of visual connectivity. Each output is individually buffered to maintain superior signal integrity, ensuring every image is as sharp, vibrant, and distortion-free as if it were directly connected to the source. Ideal for control rooms, classrooms, digital signage, and presentation systems, the VEEMUX simplifies video distribution while delivering professional-grade performance.
- Configure and control the switch through front panel buttons, Ethernet, RS-232, or optional IR remote control
- Control4 certified
- Module controls routing, reset, and status RS-232 functions
- Supports resolutions up to DCI 4K60 RGB/YUV 4:4:4
- Each input can be independently connected to any or all outputs
- HDCP 2.2 and 1.4 compliant.
- HDMI features supported: HDMI 2.0, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1, LPCM audio passthrough, as well as RGB, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0, 12-bit Deep Color, HDR, 3D, and 18 Gb/s video bandwidth
- EDID learning for the support of any HDMI display device
- Selectable built-in EDID configuration
- Cable management tray included
Items Included
- Network Technologies VEEMUX 16 x 16 HDMI Video Matrix Switch
- Power Cord
- DB9 Female to RJ45 Female Adapter
- Cat 5 Patch Cable (5')
- Rackmount Mounting Hardware
- 34 x Zip Tie
- Cable Management Tray
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies HDMI Video Matrix Switch... Specs
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
DCI 4K at 24/30/60
|
| Color Processing |
12-Bit 4:4:4 YUV
12-Bit 4:4:4 RGB 12-Bit 4:2:2 YUV 12-Bit 4:2:0 YUV |
| Video Inputs |
16x HDMI (2.0) Female
|
| Input Video Format |
HDMI
DCI 4K at 24/30/60 fps UHD 4K at 24/30/60 fps |
| Input Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Input |
HDMI
|
| Video Outputs |
16x HDMI (2.0) Female
|
| Output Video Format |
HDMI
DCI 4K at 24/30/60 fps UHD 4K at 24/30/60 fps |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Output |
HDMI
|
| Other I/O |
1x RJ45 LAN Input/Output
1x RJ45 RS-232 Input/Output |
| Digital Audio Decoding |
LPCM, Dolby Digital / AC3, Dolby TrueHD, DTS, DTS-HD Master Audio
|
| HDCP Support |
Yes: Version 1.4/2.2
|
| HDR Support |
Yes
|
| OS Compatibility |
Windows / macOS / Linux
|
| Wireless |
No
|
| Power I/O |
1x IEC C14 (100 to 240 VAC ) Input
|
| Power Consumption |
150 W
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 5 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 5 to 90% Humidity
|
| Certifications |
CE, RoHS, TAA
|
| Rack Form Factor |
1 U
|
| Dimensions |
19 x 14.56 x 1.75" / 48.3 x 36.98 x 4.45 cm
|
