Description
Network Technologies E-AMP50-SC21 Overview

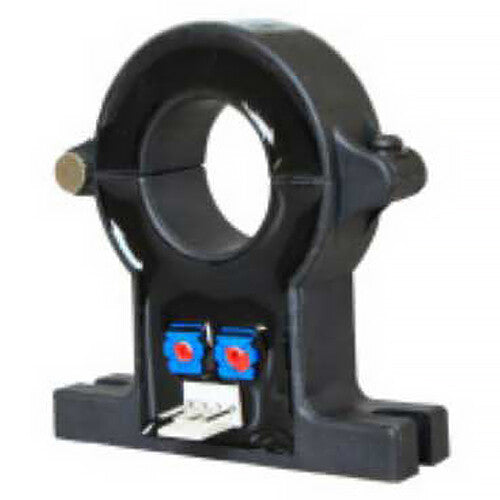

The Split-Core Hall-Effect Current Sensor from Network Technologies measures both AC and DC currents when connected to Network Technologies' separately available E-ACDCLM and E-DCLM-6. It has an 0.83" loop diameter. Measure current rated up to 50A with this sensor. Extend the sensor's range with a 22 AWG electrical wire.
Please note, the current sensor requires Network Technologies' separately available E-ACDCLM or E-DCLM-6.
Common Applications
- Monitoring AC variable speed drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible power supplies (UPS)
- Switched mode power supplies (SMPS)
- Electrochemical systems
- Power supplies for welding applications
Items Included
- Network Technologies Split-Core Hall-Effect Current Sensor (50A)
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies E-AMP50-SC21 Specs
Power
| Power Source |
Proprietary Interface
|
| Operating Current |
50 A
|
Physical
| Mounting |
2x 0.2" Diameter Mounting Holes
|
| Color |
Black
|
| Operating Conditions |
-40 to 185?F / -40 to 85?C
|
| Storage Conditions |
-40 to 257?F / -40 to 125?C
|
| Cable Length |
7' / 2.1 m
|
| Dimensions |
2.4 x 2.36 x 0.63" / 6.1 x 5.99 x 1.6 cm
|
