Description

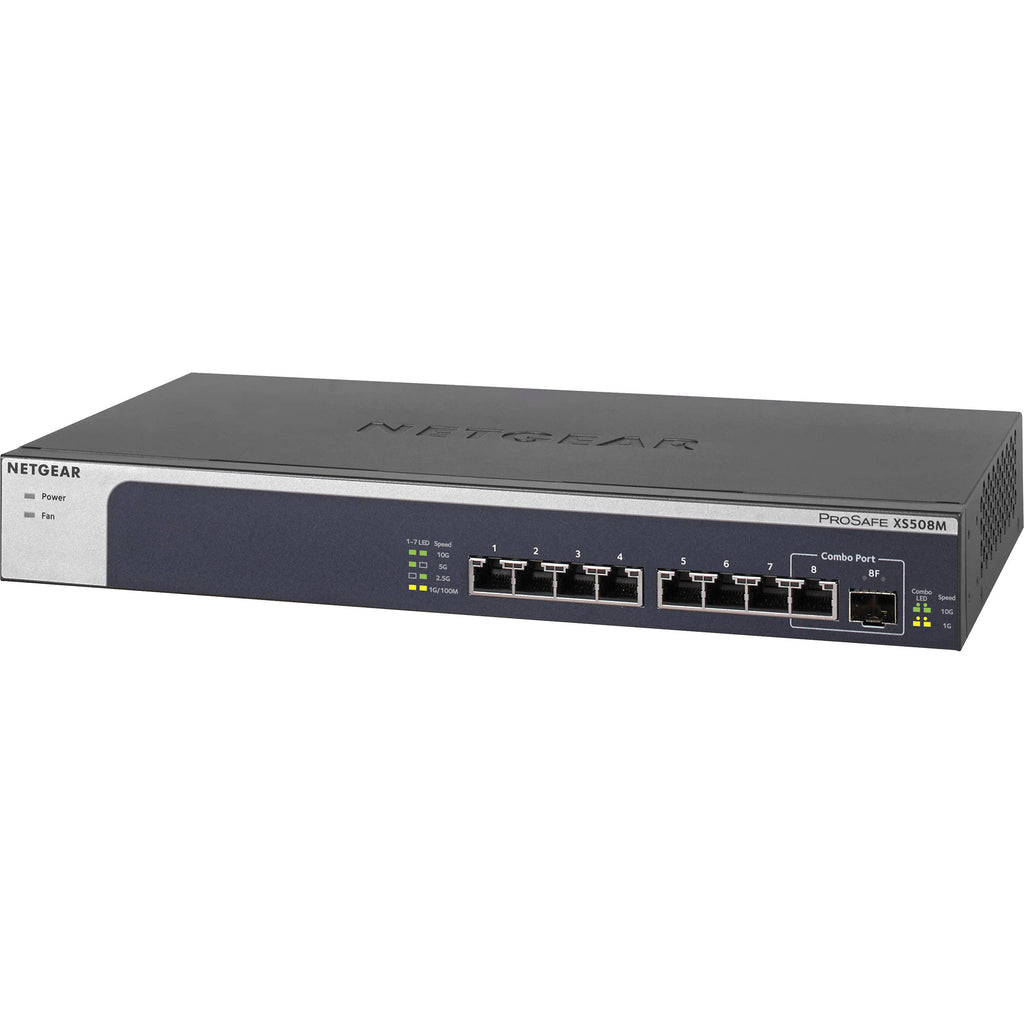

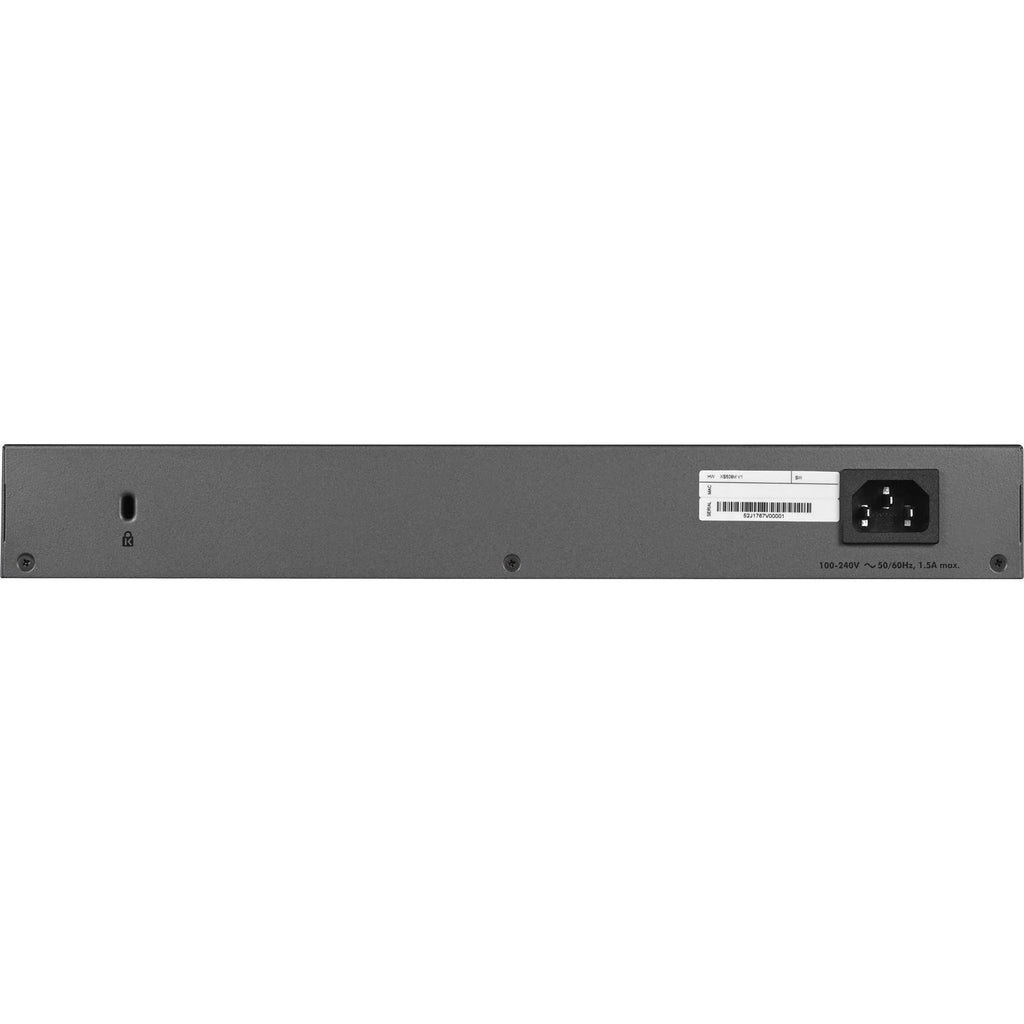

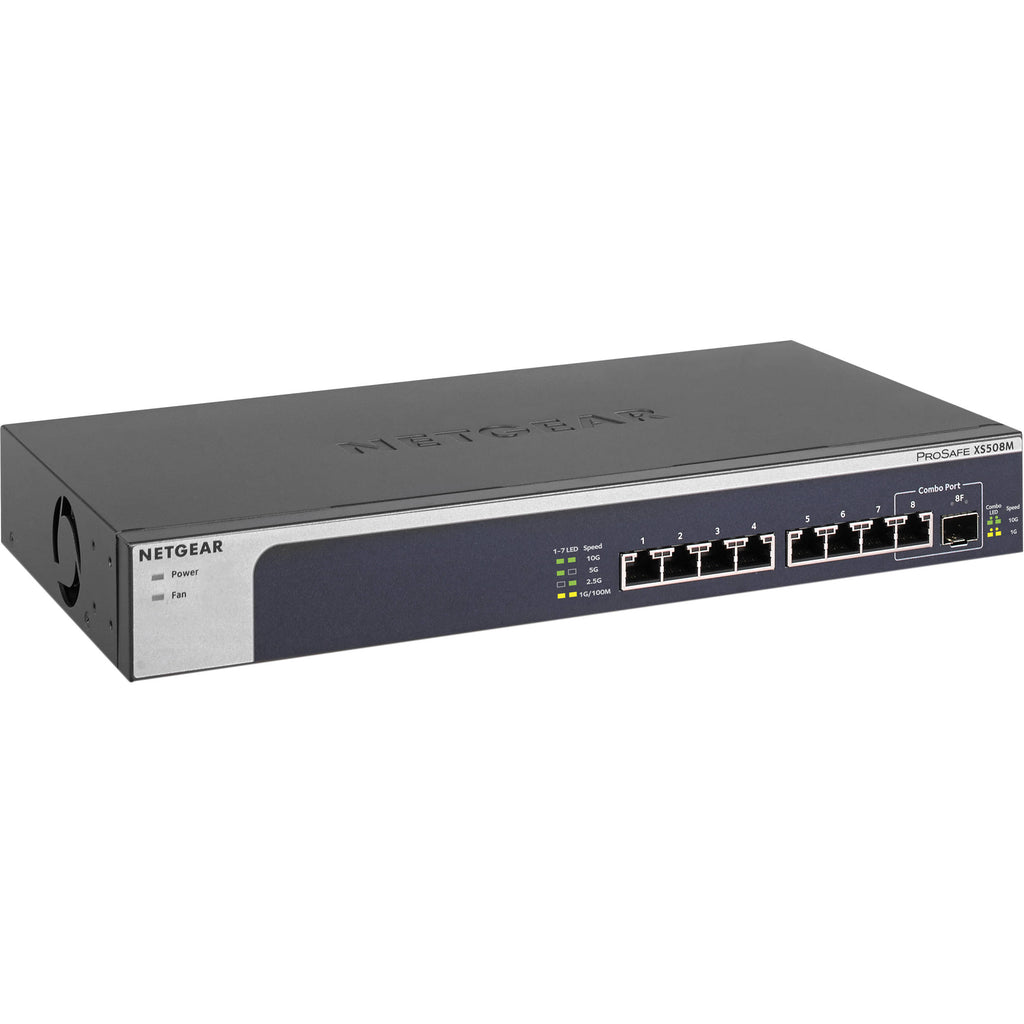

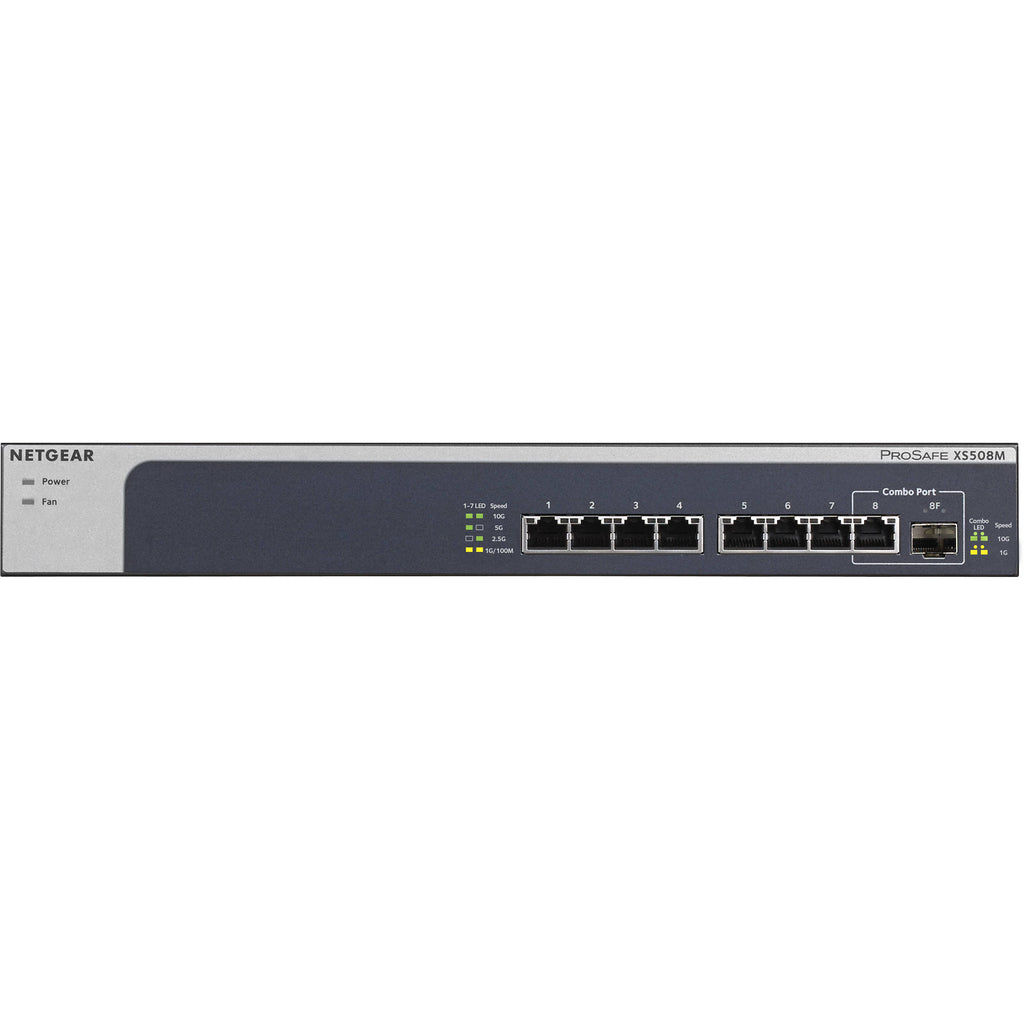

Netgear ProSAFE Switch Overview
Expand your network with the XS508M 8-Port 10-Gigabit Unmanaged Switch from NETGEAR and provide connected clients with data transfer rates of up to 10 Gb/s. This unmanaged switch requires no setup; simply plug the switch into your existing network configuration and begin adding new devices in no time. Installation has been greatly simplified as the XS508M can be placed on your desktop or added into a rackmount configuration. Once installed, network admins have seven 10 Gb/s ports and a single 10G/1G SFP+ combo port to choose from when connecting access points, routers, and other devices to the network. Additionally, the XS508M switch features a 160 Gb/s switching capacity, a 128 MB memory buffer, and a 2K MAC address table to ensure optimal network performance.
Multi-Speed Technology
- Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10 Gigabit, automatically
- Simple set up with no software or configuration needed
- Rackmount or Desktop Switches
- One SFP+ Fiber port with 1-Gigabit or 10-Gigabit connectivity - Ideal for high-speed uplink connectivity to your core network
- Durable metal case and long product life (shown by MTBF numbers)
- Whisper Quiet switch with an active fan
UPC: 606449131123
In the Box
- Netgear XS508M 8-Port 10-Gigabit Unmanaged Switch
- Power Cord
- Rack-Mounting Kit
- Limited Lifetime Warranty
Netgear ProSAFE Switch Specs
| Ports | 100 M/1 G/2.5 G/5 G/10 G RJ-45 Copper Ports 7 10G SFP+ Ports 1 x 10 G/1 G SFP+ and Copper (combo) |
| Form Factor | Desktop / rackmount |
| Performance | Packet Buffer Memory (Dynamically shared across only used ports) 128 MB Forwarding Modes Store-and-forward Bandwidth 160 Gb/s MAC Address Database Size (48-bit MAC addresses) 2 K Packet Forwarding Rate (64 byte packet size)(Mpps) 10 Gb/s: 14,880,952 fps 5 Gb/s: 7,440,476 fps 2500 Mb/s: 3,720,238 fps 1000 Mb/s: 1,488,095 fps 100 Mb/s: 148,810 fps Speed / Latency 100 Mb/s: <6 µs 1 Gb/s: <4 µs 2.5 Gb/s: TBD 5 Gb/s: TBD 10 Gb/s : TBD Jumbo Frame Support Up to 9K packet size Acoustic Noise Level @ 77°F / 25°C (dBA) (ANSI-S10.12) 22.5 Mean Time Between Failures (MTBF) @ 77° / 25°C 1,145,157 hours |
| Power Efficiency | 802.1p-Based QoS/CoS Supported Yes Auto Power Down Yes Short Cable Detection/Power Saving Yes |
| Quality of Service (QoS) | IEEE 802.3az (Energy Efficient Ethernet) Yes Honors DSCP (DiffServ) Tags Yes Weighted Round Robin (WRR) Yes Priority Queues 8 |
| Network Protocols | � IEEE 802.3 Ethernet � IEEE 802.3u 100BASE-TX � IEEE 802.3ab 1000BASE-T � IEEE 802.3x Full-Duplex Flow Control � IEEE 802.1p Class of Service � IEEE 802.3az Energy Efficient Ethernet (EEE) � IEEE 802.3an 10GBASE-T � IEEE 802.3bz 5 Gbps and 2.5 Gbps Ethernet over Copper Twisted Pair Cable � IEEE 802.3ae 10-Gigabit Ethernet over Fiber � IEEE 802.3aq 10-Gigabit over Fiber (10GBASE-LRM) � IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX |
| LED Indicators | Per Port Speed, Link, Activity Per Device Power and Fan |
| Power Consumption | Power Supply Fixed internal PSU, 100-240 VAC, 50-60 Hz, 1.5 A max Max Power (worst case, all ports used, line-rate traffic) (Watts) 39 W Min Power (link-down standby) (Watts) 21.31 Heat Dissipation (max and min) (BTU/hr) 147.86/80.8 Fan(s) 1 |
| Environmental Specifications | Operating Temperature 32 to 122°F / 0 to 50°C Operating Humidity (relative) 95% maximum relative humidity (RH), non-condensing Operating Altitude 10,000' / 3000 m (maximum) Storage Temperature -4 to 158°F / -10 to 70°C Storage Humidity (relative) 95% maximum relative humidity (RH), non-condensing Storage Altitude 10,000' / 3000 m (maximum) |
| Electromagnetic Emissions & Immunity | Certifications 47 CFR FCC Part 15, Subpart B, Class B ICES-003:2016 Issue 6, Class B ANSI C63.4:2014 EN 55022:2010 + AC:2011, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 6100-3-3:2013 AS/NZS CISPR 22:2009 + A1:2010, Class B VCCI V-3/2015.04, Class A V-4/2012.4 Russia EAC mark Korea KC mark CNS 13438 Electromagnetic Compliance (Class A or B) Class B |
| Safety Certification | CB mark, commercial IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013 UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (ed.2) + A1:2009 + A2:2013 AS/NZS 60950.1:2015 Russia EAC mark |
| Dimensions | 12.91 x 6.65 x 1.70" / 328.0 x 169.0 x 43.2 |
| Weight | 3.3 lb / 1.49 kg |
Packaging Info
| Package Weight | 4.8 lb |
| Box Dimensions (LxWxH) | 18.2 x 9.1 x 3.1" |
