Netgear WAX610 Overview
-
1Description
-
2Fast Wi-Fi
-
3Enterprise Level Security
-
4Quick Setup
-
5Insight Management
Expand the Wi-Fi coverage of your small-to-medium business with the WAX610 AX1800 Dual-Band PoE-Compliant Cloud Managed Access Point from Netgear. This 802.11ax access point mounts on a wall or ceiling using the included hardware and connects to a PoE-compliant switch or router through its 2.5 Gigabit Ethernet port for power and data. Once connected, the access point transfers up to 1800 Mb/s of data wirelessly over the 2.4 GHz and 5 GHz frequencies, even in dense wireless environments such as schools, hotels, restaurants, and conference centers. This access point features enterprise-grade security and using the cloud-based Insight interface allows you to configure and monitor your device from almost anywhere in the world via mobile app or web portal. Additionally, the WAX610 is backward compatible with 802.11b/g/n/a/ac devices.
Fast Wi-Fi
The WAX610 is designed to deliver 802.11ax Wi-Fi speeds of up to 1800 Mb/s over the 2.4 and 5 GHz frequencies. It uses technologies such as OFDMA and MU-MIMO to help provide reliable speed and coverage for up to 30 concurrent users in congested environments such as schools, hotels, restaurants, and conference centers.
Enterprise Level Security
Your network is secured with WPA3 encryption, while support for eight wireless network IDs (SSIDs) and multiple VLANs to provide separate access to your employees, guests, and more.
Quick Setup

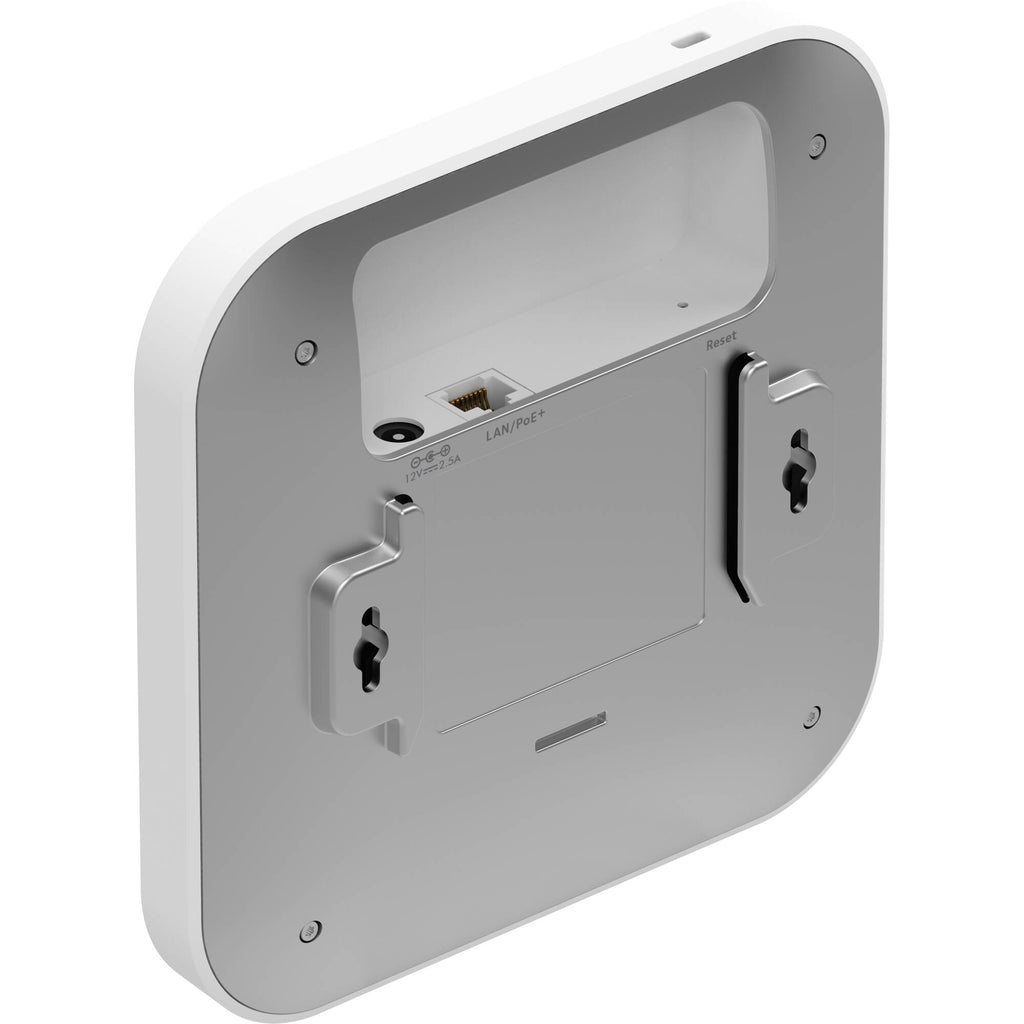

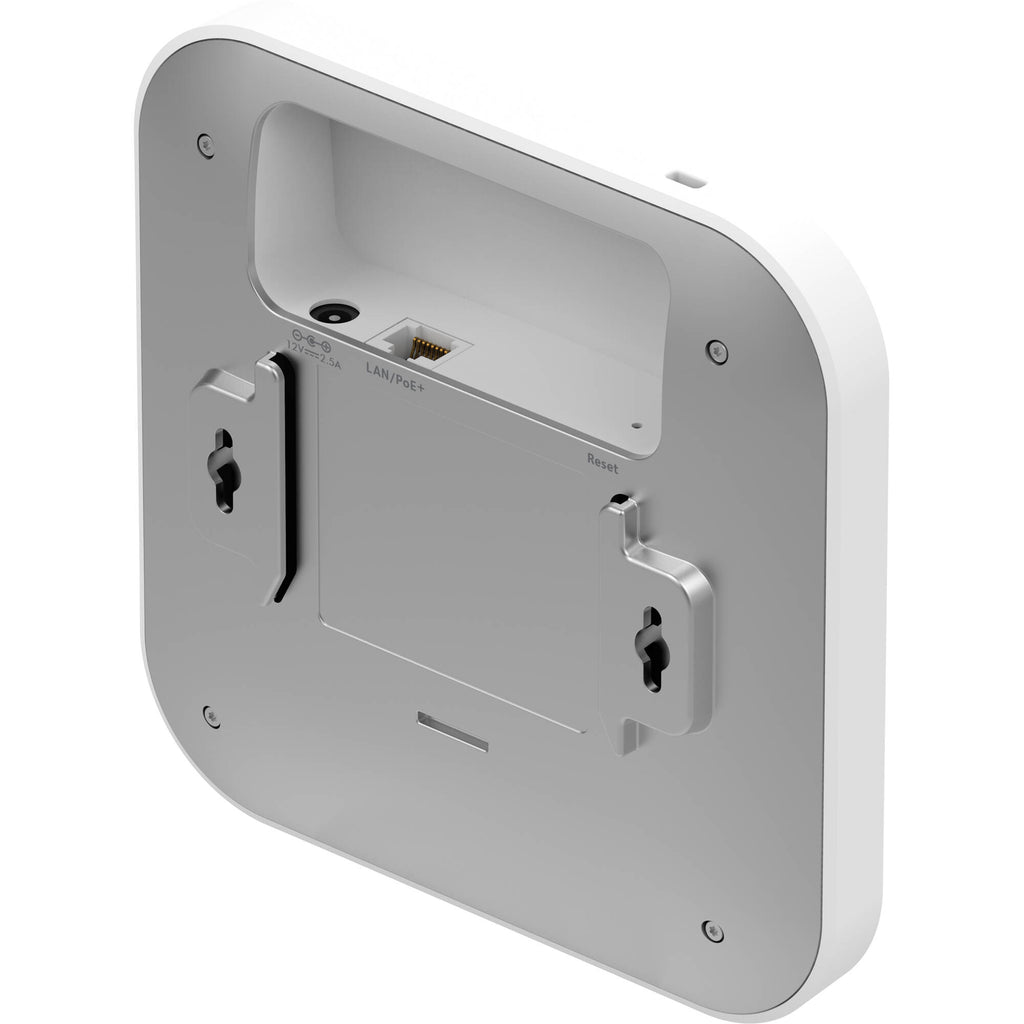

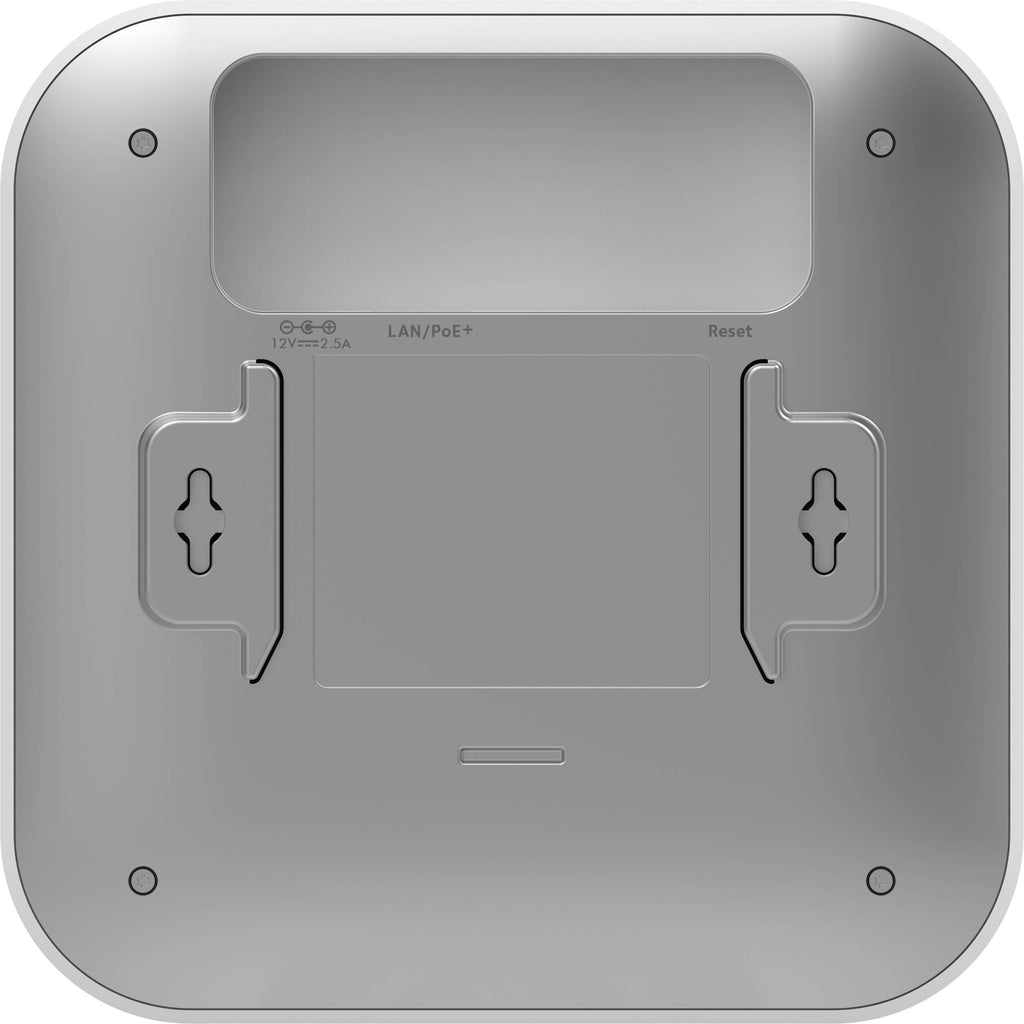

Connect the WAX610 to a PoE-compatible network switch or router through its 2.5 Gigabit Ethernet port for power and data. Hardware is included to mount this access point onto a wall or ceiling.
Insight Management
A 1-year subscription to the Netgear Insight cloud management platform is included with the WAX610. With it, you can configure and monitor your network from almost anywhere in the world via the mobile app or web-based portal. You can also perform tasks such as monitor Wi-Fi activity, receive downtime notifications, reboot devices, and upgrade their firmware.
![]()
UPC: 606449148282
In the Box
- Netgear WAX610 AX1800 Dual-Band PoE-Compliant Cloud Managed Access Point
- Ceiling & 15/16-Inch T-Bar Mounting Bracket
- 9/16" T-Bar Mounting Bracket
- Ceiling and Wall Mount Screw and Anchor Pack
- Insight Subscription (1-Year)
- Limited 5-Year Warranty
Table of Contents
- Description
- Fast Wi-Fi
- Enterprise Level Security
- Quick Setup
- Insight Management
Netgear WAX610 Specs
Wireless
| Wireless Frequency Bands |
2.4 GHz, 5 GHz Dual-Band |
| MU-MIMO Support |
2 x 2 |
| WLAN Mode |
Wi-Fi 6 (802.11ax) |
| Antenna Gain |
3.6 to 4.4 dBi |
| Supported Protocols |
SSID |
| Antenna Placement |
Internal |
| Bluetooth |
None |
| Throughput |
1800 Mb/s Total
5 GHz: 1200 Mb/s
2.4 GHz: 600 Mb/s |
Interface
| Ports |
1 x 2.5 Gb/s Ethernet (RJ45) PoE |
| USB Sharing Support |
No |
Security
| Guest Network Support |
Yes |
| Wireless Security |
WPA, WPA-Enterprise, WPA2, WPA3 |
Management
| Operation Modes |
Access Point, Bridge |
| Supported Clients |
250 |
| Max SSIDs Supported |
8 |
Hardware
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11i, 802.11n, 802.3af, 802.3at |
Environmental
| Operating Temperature |
14 to 122°F / -10 to 50°C |
General
| IP Rating |
IP55 |
| Mount Options |
Wall, Ceiling |
| Dimensions |
6.3 x 6.3 x 1.31" / 160.9 x 160.9 x 33.25 mm |
| Weight |
0.9 lb / 412 g |
Packaging Info
| Package Weight |
1.44 lb |
| Box Dimensions (LxWxH) |
8.1 x 8.1 x 3.4" |
