- Gigabit Ethernet Switch with 5 Ports
- VLAN Support & Broadcast Storm Control
- QoS and Bandwidth Management
- Energy-Saving Features
- Plug-and-Play
- Windows Configurable
- Auto Denial-of-Service Prevention
With up to 2 Gbps bandwidth per port, the ProSafe Plus 5-Port Gigabit Ethernet Switch from Netgear is a viable networking solution for data intensive environments. With simple setup procedures and plug-and-play functionality this switch can be easily integrated into existing network configurations to avoid downtime. Once configured, built-in QoS (Quality of Service) management ensures applications receive the necessary bandwidth to perform at optimal efficiency. Additionally, this ProSafe switch supports the 802.3az Energy Efficient Standard providing maximum power savings.
- General Features
- Enable network configuration and management at the price point of unmanaged switches
Gigabit connection deliver up to 2000 Mb/s of dedicated, non-blocking bandwidth per port
Provides simple and useful network set-up along with plug-and-play connectivity
Offers VLAN support for traffic segmentation, Quality of Service (QoS) for traffic prioritization, and auto denial-of-service (DoS) prevention
Troubleshoots connection issues via cable test
Loop prevention and broadcast storm controls
IGMP snooping v1, v2 and v3 support for multicast optimization
Offers rate-limiting for suitable bandwidth allocation, port-mirroring for network monitoring, and port-trunking for big uplink bandwidth
Flexible management options via web based GUI or PC-based Utility Tool
Jumbo frame support
Energy Efficient Ethernet (IEEE802.3az)
Support for maximum power-savings
Supports loop detection, DoS prevention, broadcast storm control, EEE (Energy)
- Hardware Features
- A suitable upgrade for SMB network that combines management capability with high-speed and performance
With half of the ports capable of supporting PoE, it is cost-efficient Gigabit Ethernet solution for converged network
Flexibile deployment for desktop placement, undertable mount, wall mount as well as rackmount
- Software Features
- VLAN: Segments network into small groups for secure and efficient use of network resources
QoS: For optimized network performance and optimal delivery of mission-critical traffic such as voice and video
IGMP Snooping: For improved network efficiency on delivering multicast traffic
Port Trunking: Build up a big bandwidth to support aggregated uplink traffic
Port Mirroring and Cable Test: For better and quick network diagnostics and troubleshooting
UPC: 606449101515
In the Box

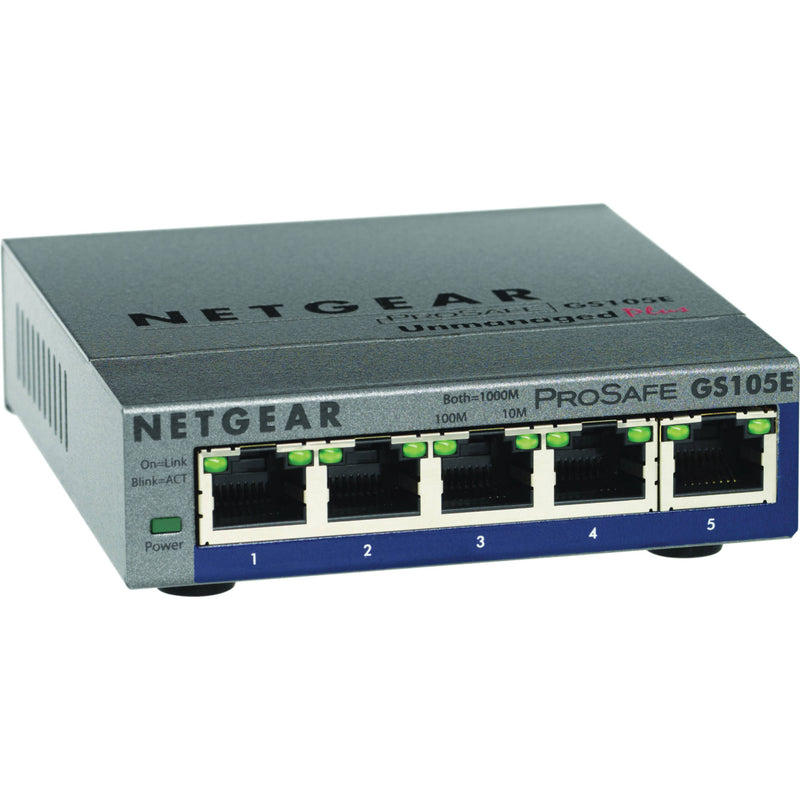

Netgear ProSafe Plus 5-Port Gigabit Ethernet Switch
Power Cord or Power Adapter Rack-Mounting Kit Resource CD with PC Utility Software Limited 2-Year Warranty
Netgear GS105E-200NAS Specs
| Interfaces |
| Ports | 5 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Protocols |
| Layer Services Supported | Layer 3 Support |
| Supported Protocols | IGMP Snooping |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 9,000 Bytes |
| MAC Address Table Size | 8K |
| Multicast Groups | 128 |
| VLAN Groups | 64 |
| Standards |
| Supported IEEE Standards | 802.1p, 802.1q, 802.3, 802.3ab, 802.3af, 802.3i, 802.3u, 802.3x |
| Environmental |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 90% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 0 to 95% |
| Operating Altitude | 9,842' / 3,000 m |
| Storage Altitude | 10,000' / 3,000 m |
| Noise Level | 0.0 dB |
| General |
| Mean Time Between Failures (MTBF) | 2,531,294 Hours |
| Indicator Lights | Activity, Fan, Link, PoE, Power, Speed |
| Dimensions | 4 x 3.7 x 1" / 10.1 x 9.4 x 2.6 cm |
| Weight | 1 lb / 0 kg |
| Packaging Info |
| Package Weight | 1.25 lb |
| Box Dimensions (LxWxH) | 9.4 x 6.1 x 2.5" |
