Description
Netgear XSM4340CV-100NES Overview

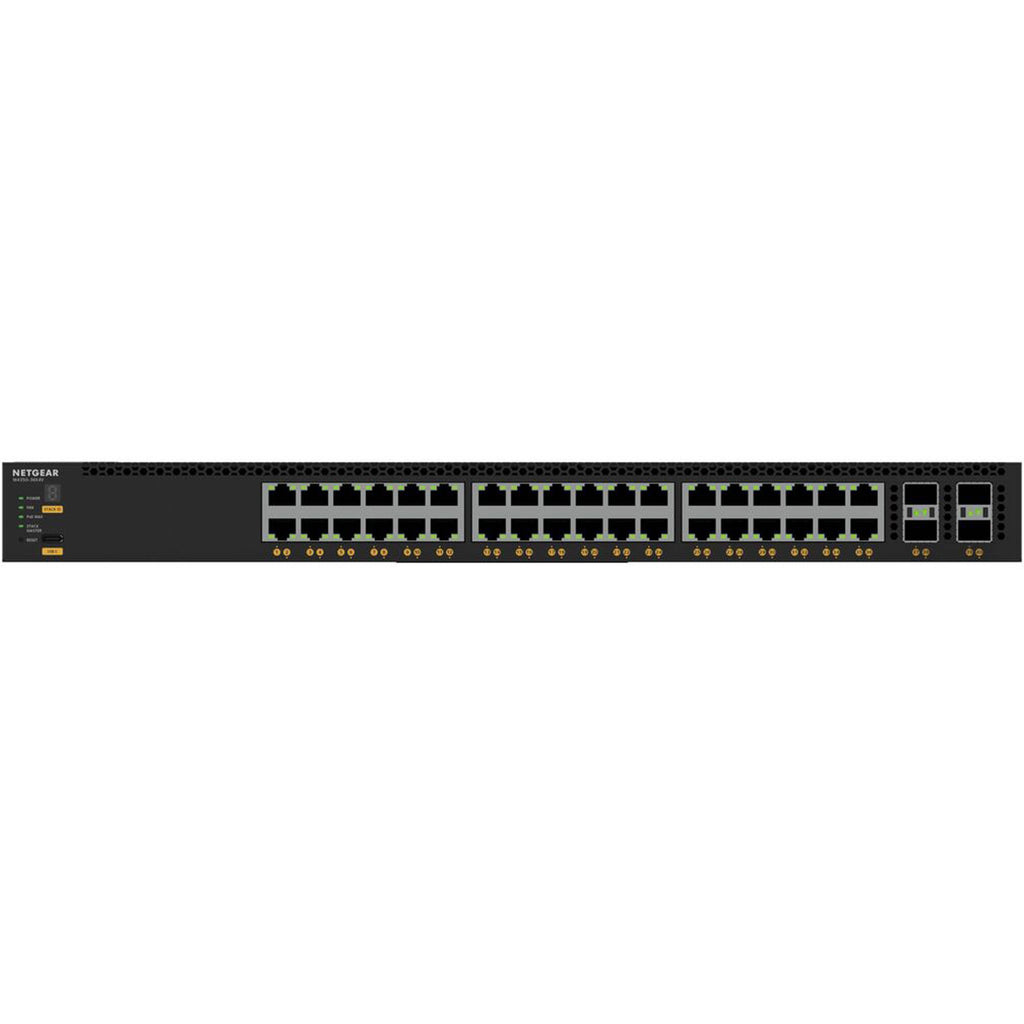

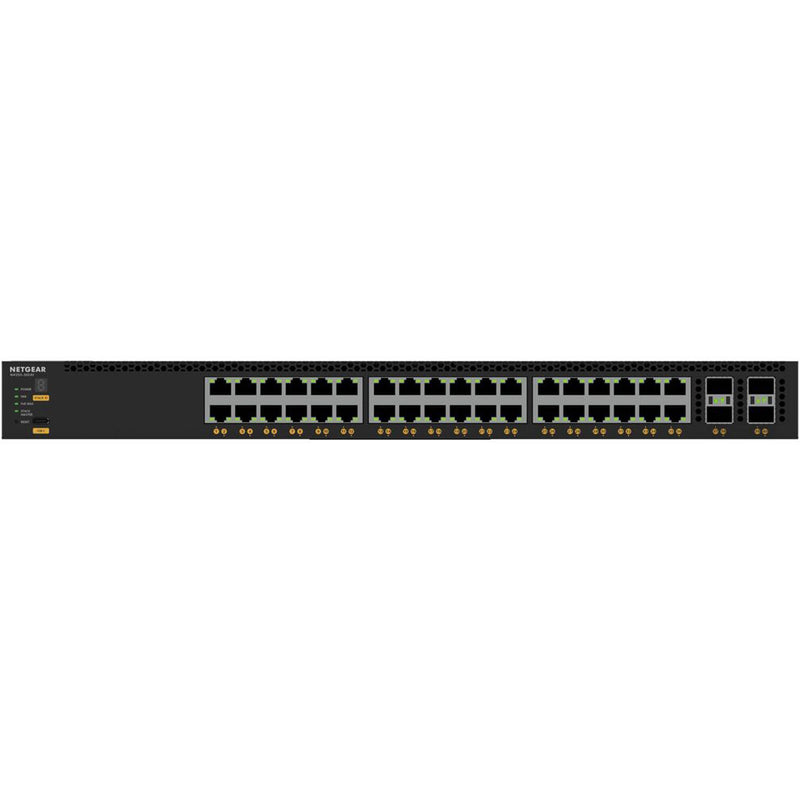

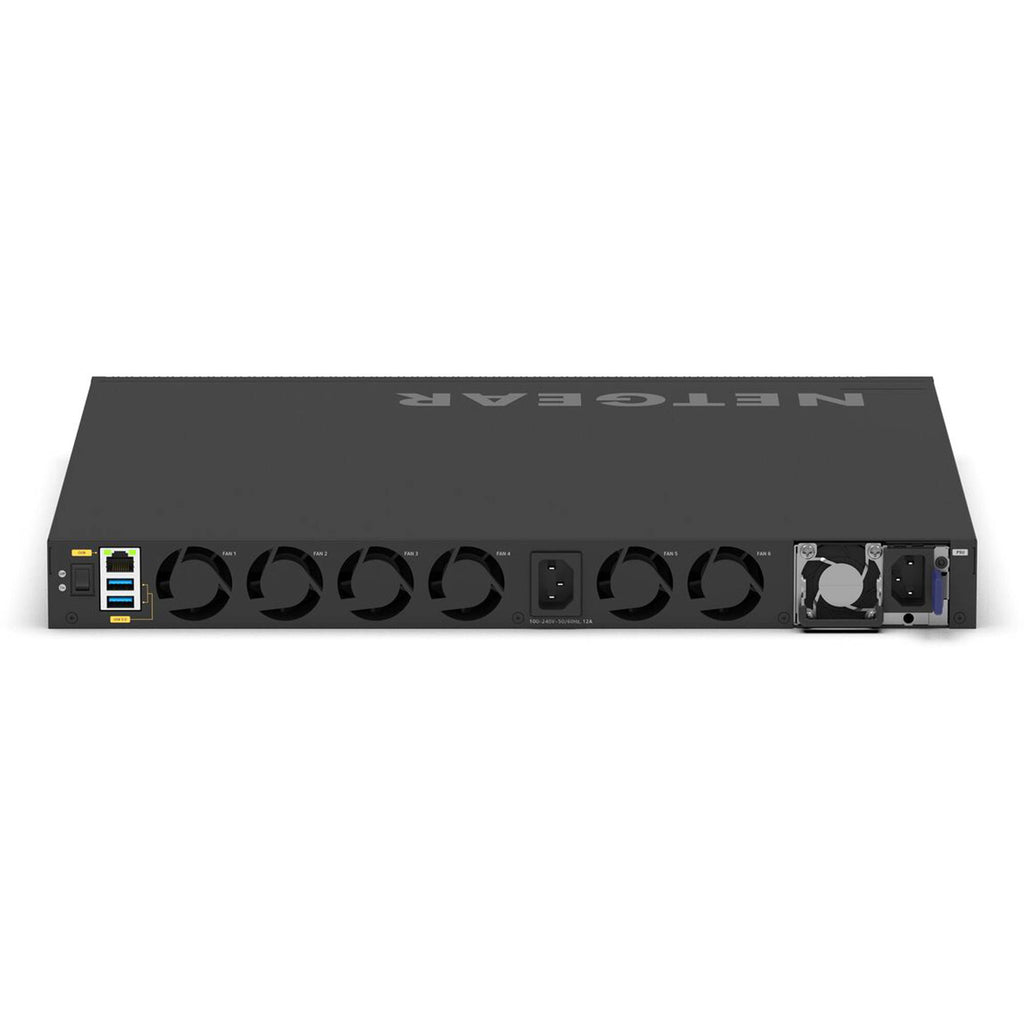

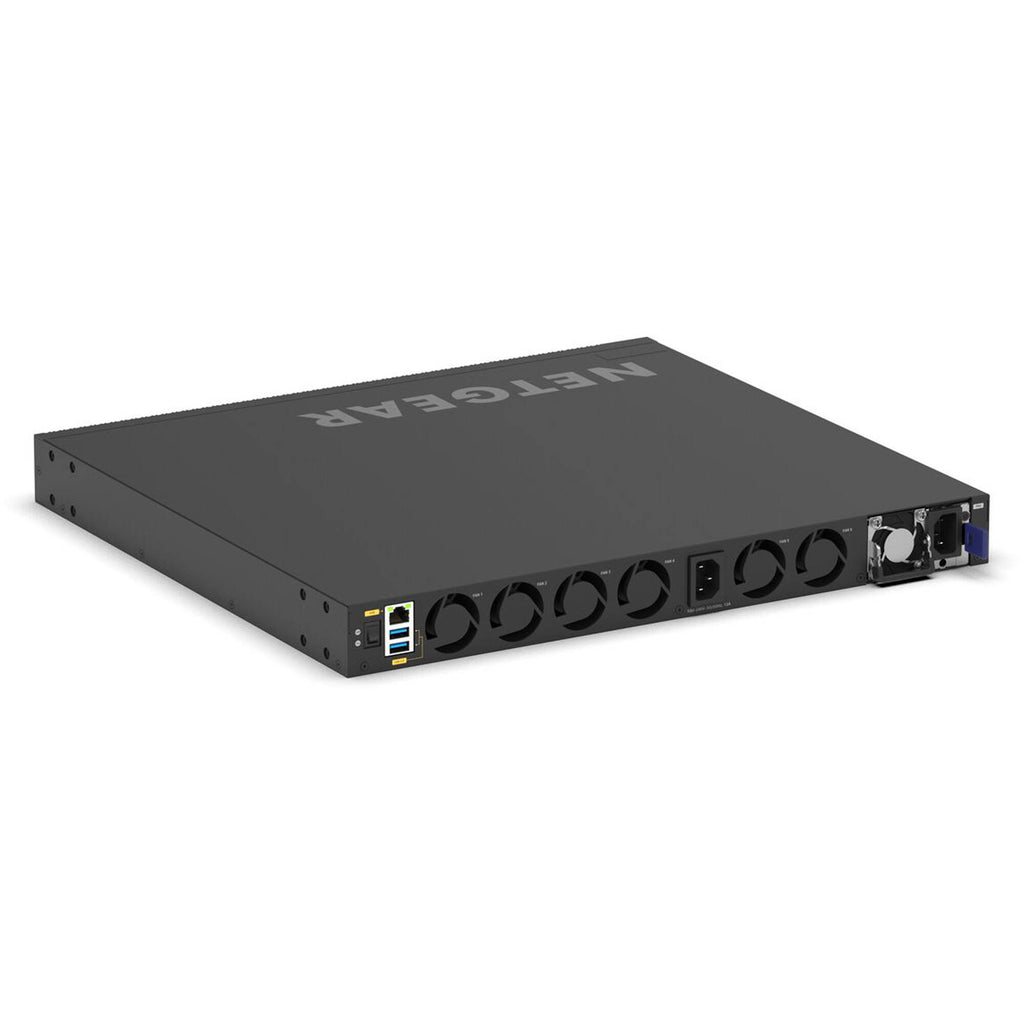

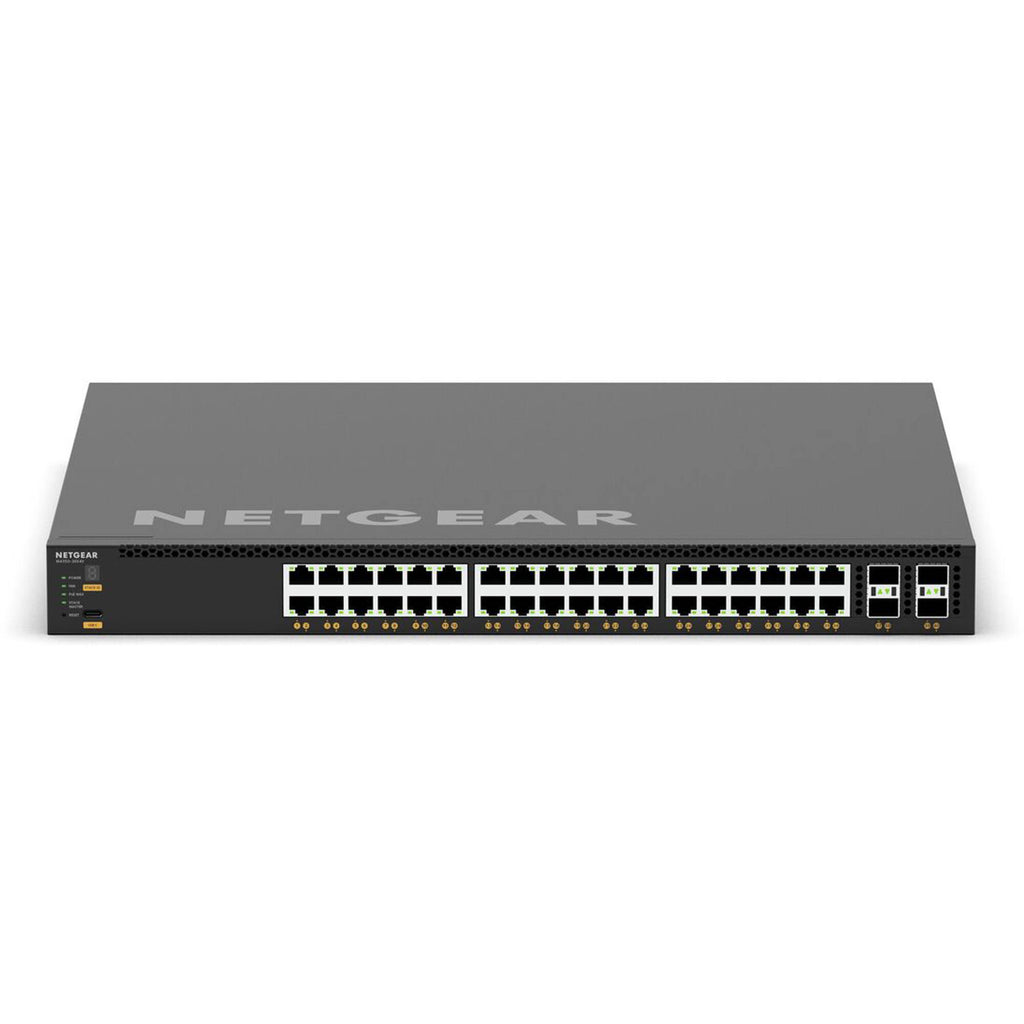

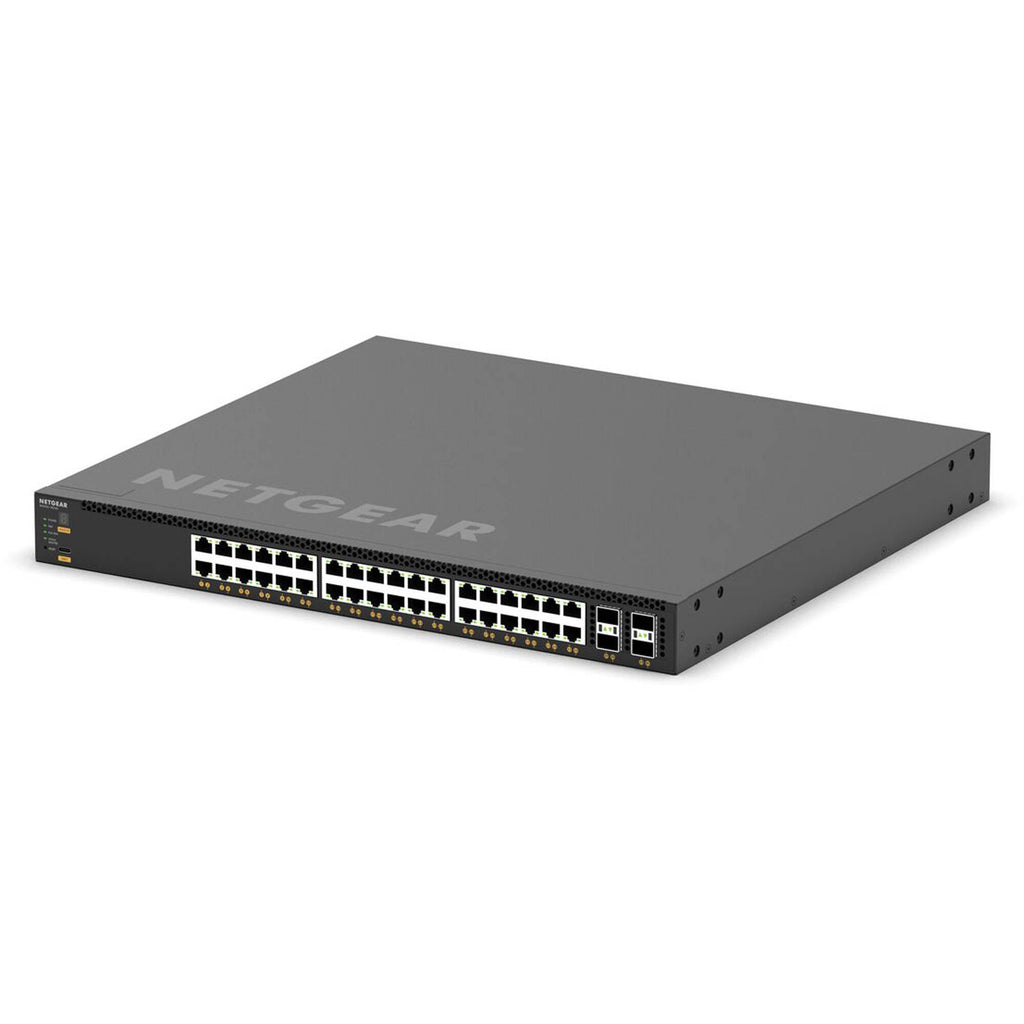

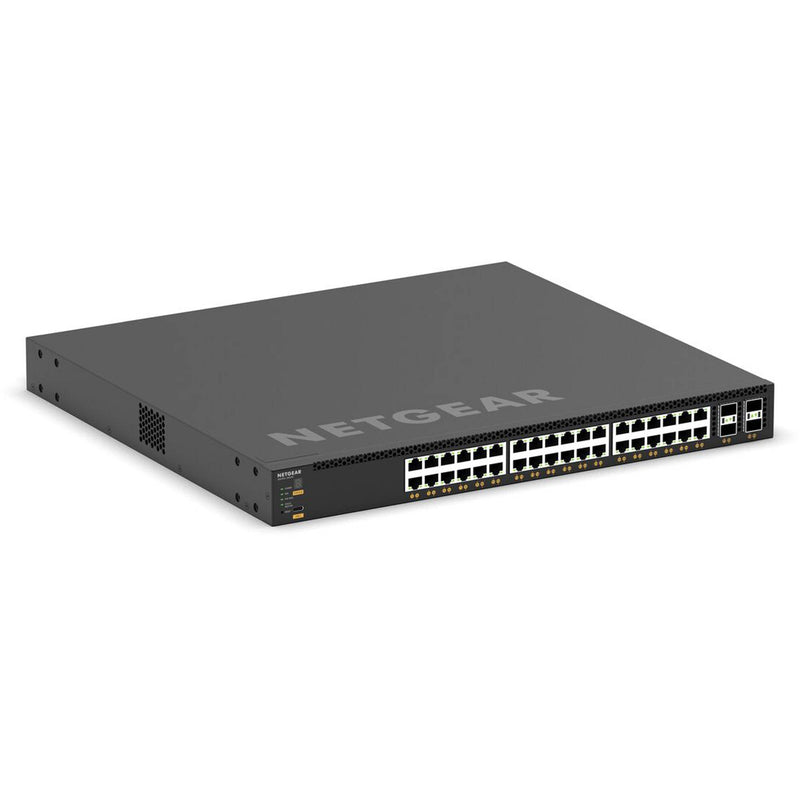

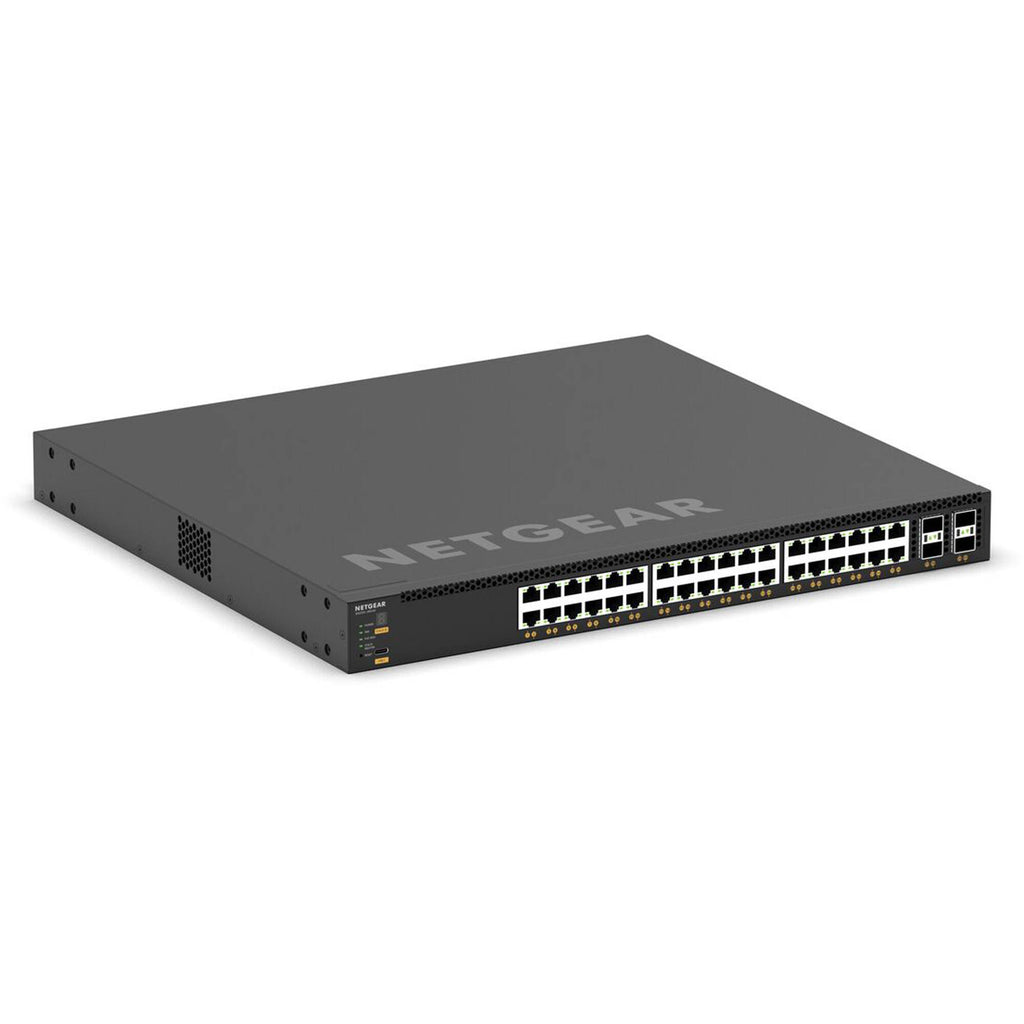

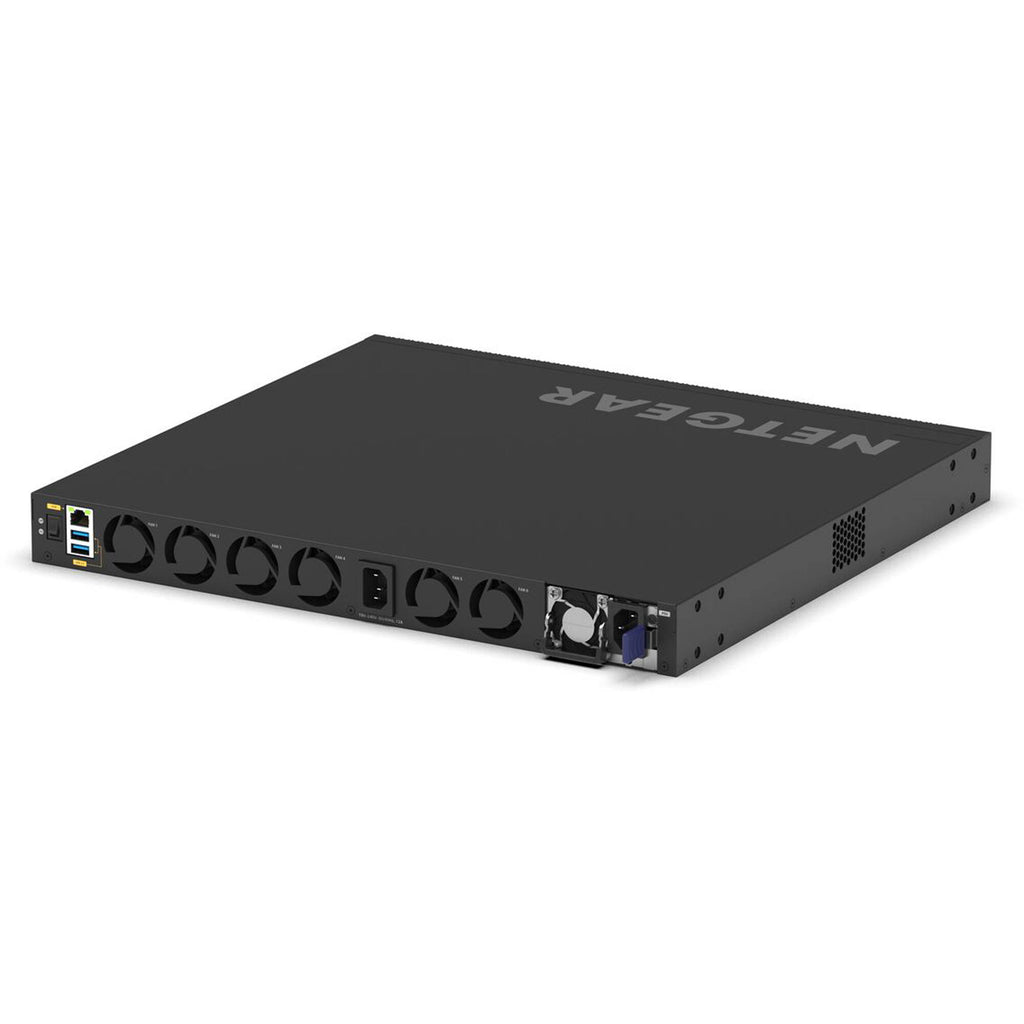

Grow your business by expanding your network capacity with the Netgear M4350-36X4V 36-Port 10G PoE++ Compliant Managed AV Network Switch. Designed primarily for high-bandwidth AV and IT applications, this network switch includes thirty-six 10G Ethernet PoE++ compliant ports, each providing up to 90W of power to compatible devices with a 280W budget.
With Netgear's IGMP Plus, the M4350-36X4V switch delivers smooth video-over-IP multicasts with little to no setup required. Four 25G SFP28 ports are available for fiber uplinks and stacking. Installing a separately purchased second power supply provides 1+1 redundancy and can increase your PoE budget to up to 1760W. This switch works with Netgear's Engage Controller management platform, in addition to standard command line and web-based interfaces.
Items Included
- Netgear M4350-36X4V 36-Port 10G PoE++ Compliant Managed AV Network Switch
- Power Cable
- USB-C to USB-A 2.0 Console Cable
- Rubber Caps for SFP28 Sockets
- Rubber Footpads
- Standard Rackmount Brackets
- Long Rackmount Brackets
- Limited Lifetime Warranty
- Limited 90-Day Manufacturer Warranty (Technical Support via Phone & Email)
- Limited Lifetime Warranty (Next Business Day Hardware Replacement)
Additional Resources
Netgear XSM4340CV-100NES Specs
| Inputs/Outputs |
36x RJ45 10 GbE PoE++ (100 W, 802.3bt Type 4)
4x QSFP28 25 GbE WAN 1x RJ45 Gigabit Ethernet LAN 1x USB-C 2x USB-A |
| Stackable |
No
|
| Switching Bandwidth |
920 Gb/s
|
| PoE Power Budget |
280 W
|
| Stackable |
No
|
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server DoS IGMP Snooping IPv4 IPv6 Link Aggregation |
| Queuing |
Strict Priority, Weighted Round Robin (WRR)
|
| Jumbo Frames Support |
12,000 Bytes
|
| MAC Address Table Size |
16K
|
| Multicast Groups |
512
|
| Security Features |
DoS Attack Prevention
|
| Latency |
1 to 2.7 µs
|
| Forwarding Rate |
684.48 Mpps
|
| Switching Bandwidth |
920 Gb/s
|
| Packet Buffer |
64 Mb
|
| CPU |
Quad-Core: Up to 1.8 GHz Cortex A57
|
| Memory |
2 GB DDR4
|
| PoE per Port |
90 W
|
| PoE Power Budget |
280 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Supply Type |
Internal
|
| Certifications |
No
|
| Storage Conditions |
24 to 158°F / -4 to 70°C
|
| Noise Level |
54.0 dB
|
| Cooling System |
Fan
|
| Indicator Lights |
Yes
|
| Rack Mountable |
Yes 1 RU
|
| Dimensions |
17.3 x 15.7 x 1.7" / 440 x 400 x 43.2 mm
|
| Weight |
16.16 lb / 7.33 kg
|
| Package Weight |
23.115 lb
|
| Box Dimensions (LxWxH) |
23.4 x 22.7 x 4.2"
|
