Description
Netgear XSM4328CV-100NES Overview
- 1Description
- 2Performance
- 3Multicast in an Instant
- 4Sleek, Quiet Design
- 5Automatic Configuration
- 6Fast, Easy Configuration

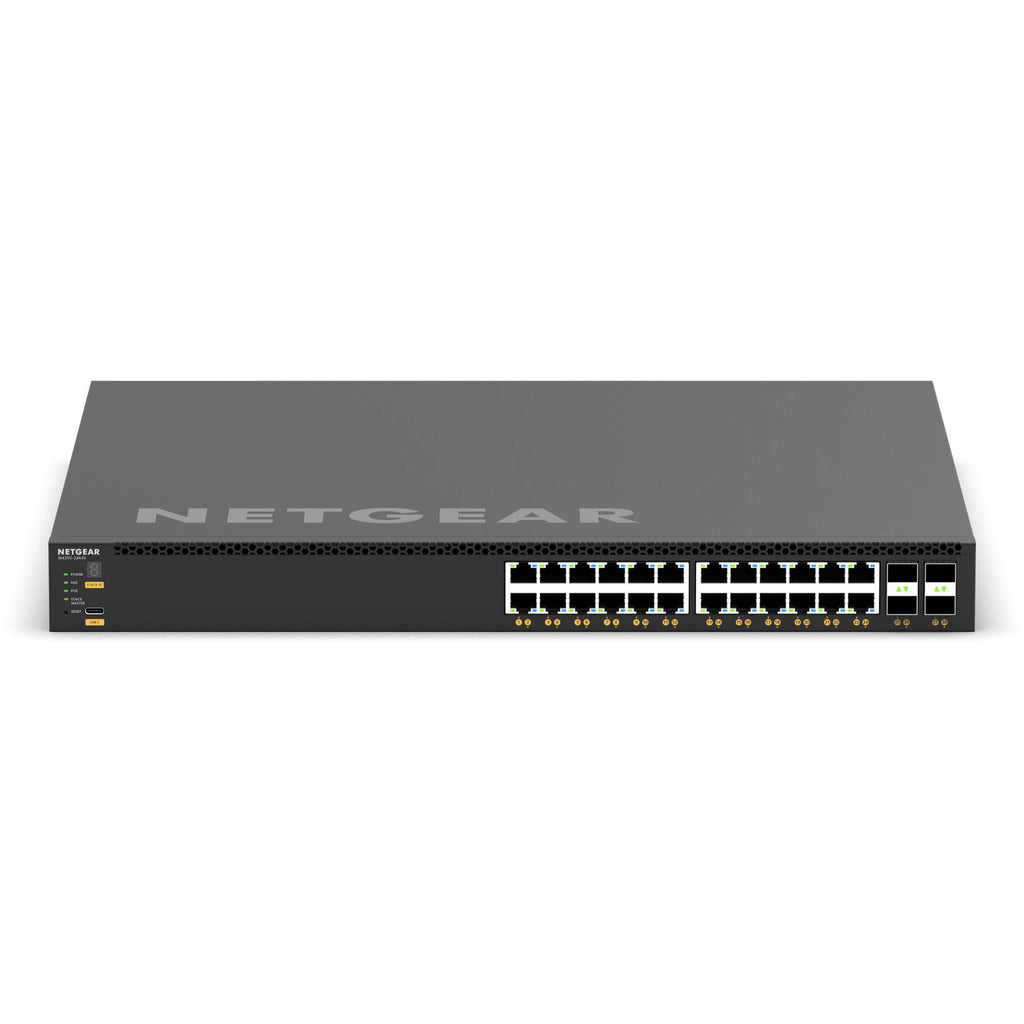

Grow your business by expanding your network capacity with the Netgear M4350-24X4V 24-Port 10G PoE+ Compliant Managed AV Network Switch. Designed primarily for high-bandwidth AV and IT applications, this network switch includes twenty-four 10G Ethernet PoE+ compliant ports, each providing up to 30W of power to compatible devices with a 576W budget.
With Netgear's IGMP Plus, the M4350-24X4V switch delivers smooth video-over-IP multicasts with little to no setup required. Four 25G SFP28 ports are available for fiber uplinks and stacking. Installing a separately purchased second power supply provides 1+1 redundancy and can increase your PoE budget to up to 720W. This switch works with Netgear's Engage Controller management platform, in addition to standard command line and web-based interfaces.
Performance
With a 680 Gb/s switching capacity and 505.92 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.
Multicast in an Instant
Netgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
The intelligent fans may be configured in Quiet Mode help to minimize noise or Cool Mode for maximum cooling. Mounting ears for rack mounting are included.
Automatic Configuration
Auto-trunk and auto-LAG functionality automatically connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.
Fast, Easy Configuration
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
In the Box
- Netgear M4350-24X4V 24-Port 10G PoE+ Compliant Managed AV Network Switch
- Power Cable
- USB-C to USB-A 2.0 Console Cable
- Rubber Caps for SFP28 Sockets
- Rubber Footpads
- Standard Rackmount Brackets
- Long Rackmount Brackets
- Limited Lifetime Warranty
- Limited 90-Day Manufacturer Warranty (Technical Support via Phone & Email)
- Limited Lifetime Warranty (Next Business Day Hardware Replacement)
Table of Contents
- Description
- Performance
- Multicast in an Instant
- Sleek, Quiet Design
- Automatic Configuration
- Fast, Easy Configuration
Netgear XSM4328CV-100NES Specs
Key Specs
| Inputs/Outputs |
24 x RJ45 10 GbE PoE+
4 x SFP28 25 Gb/s (WAN) 1 x RJ45 Gigabit Ethernet (LAN) 1 x USB-C (LAN) 2 x USB-A |
| PoE Power Budget |
576 W
|
Interfaces
| Inputs/Outputs |
24 x RJ45 10 GbE PoE+
4 x SFP28 25 Gb/s (WAN) 1 x RJ45 Gigabit Ethernet (LAN) 1 x USB-C (LAN) 2 x USB-A |
| Number of Bays |
1x Proprietary
|
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server DoS IGMP Snooping IPv4 IPv6 Link Aggregation |
| Queuing |
Strict Priority, Weighted Round Robin (WRR)
|
| Jumbo Frames Support |
12,000 Bytes
|
| MAC Address Table Size |
16K
|
| Multicast Groups |
512
|
| VLAN Groups |
4000
|
Security
| Security Features |
DoS Attack Prevention
|
| Access Control List |
64
|
| SNMP Support |
1, 2c, 3
|
Standards
| Supported IEEE Standards |
802.1ak, 802.1as, 802.1ax, 802.1p, 802.1q, 802.1qat, 802.1qav, 802.1s, 802.1w, 802.3, 802.3ad, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3az, 802.3x
|
Performance
| Latency |
1 to 2.4 µs
|
| Forwarding Rate |
505.92 Mpps
|
| Switching Bandwidth |
680 Gb/s
|
| Packet Buffer |
32 Mb
|
Computer
| CPU |
Quad-Core: Up to 1.8 GHz Cortex A57
|
| Memory |
2 GB DDR4
|
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| PoE Power Budget |
576 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
Internal
|
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Operating Humidity |
90%
|
| Storage Temperature |
24 to 158°F / -4 to 70°C
|
| Storage Altitude |
10,000' / 3048 m
|
| Noise Level |
57.2 dB
|
General
| Certifications |
No
|
| Cooling System |
Fan
|
| Indicator Lights |
Link/Activity/PoE
|
| Rack Form Factor |
1 RU
|
| Dimensions |
17.3 x 15.7 x 1.7" / 440 x 400 x 43.2 mm
|
| Weight |
14.51 lb / 6.58 kg
|
