Description
Netgear VSM4320C-100NES Overview

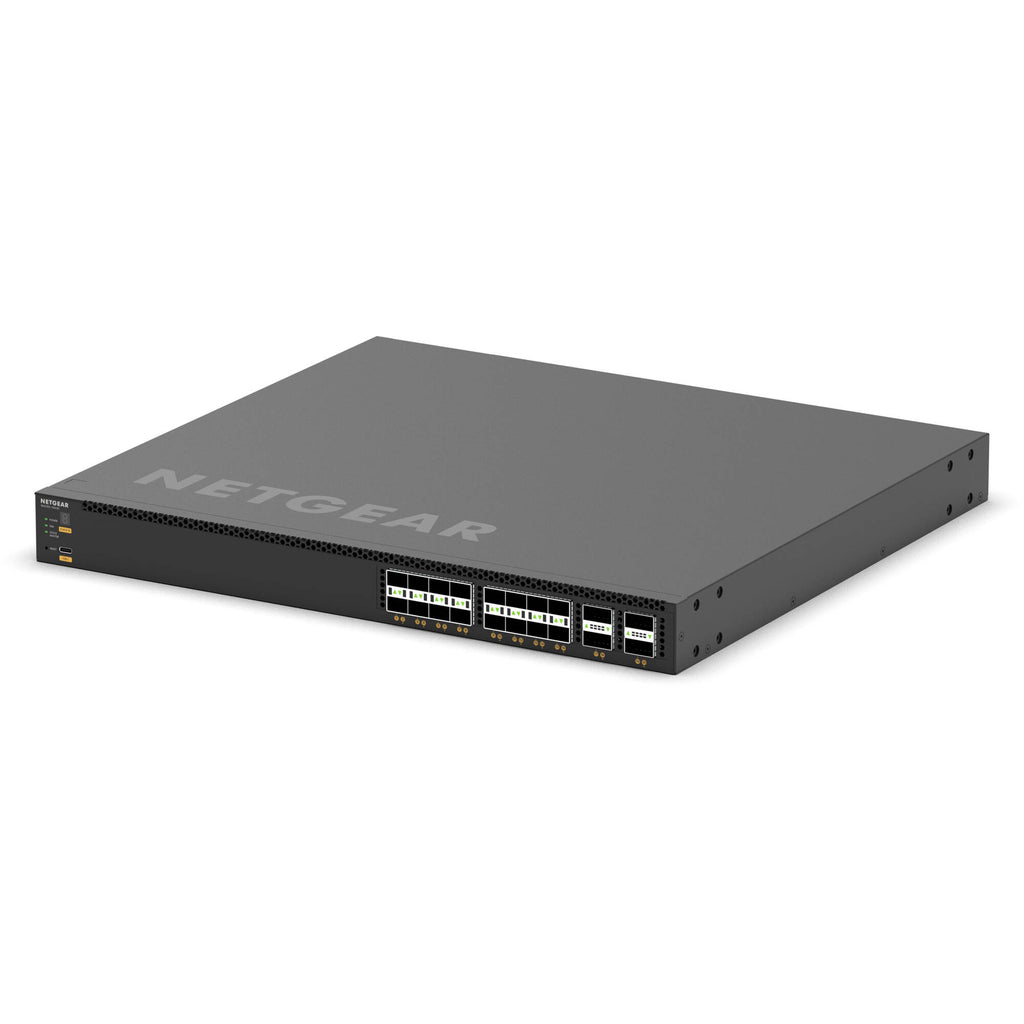

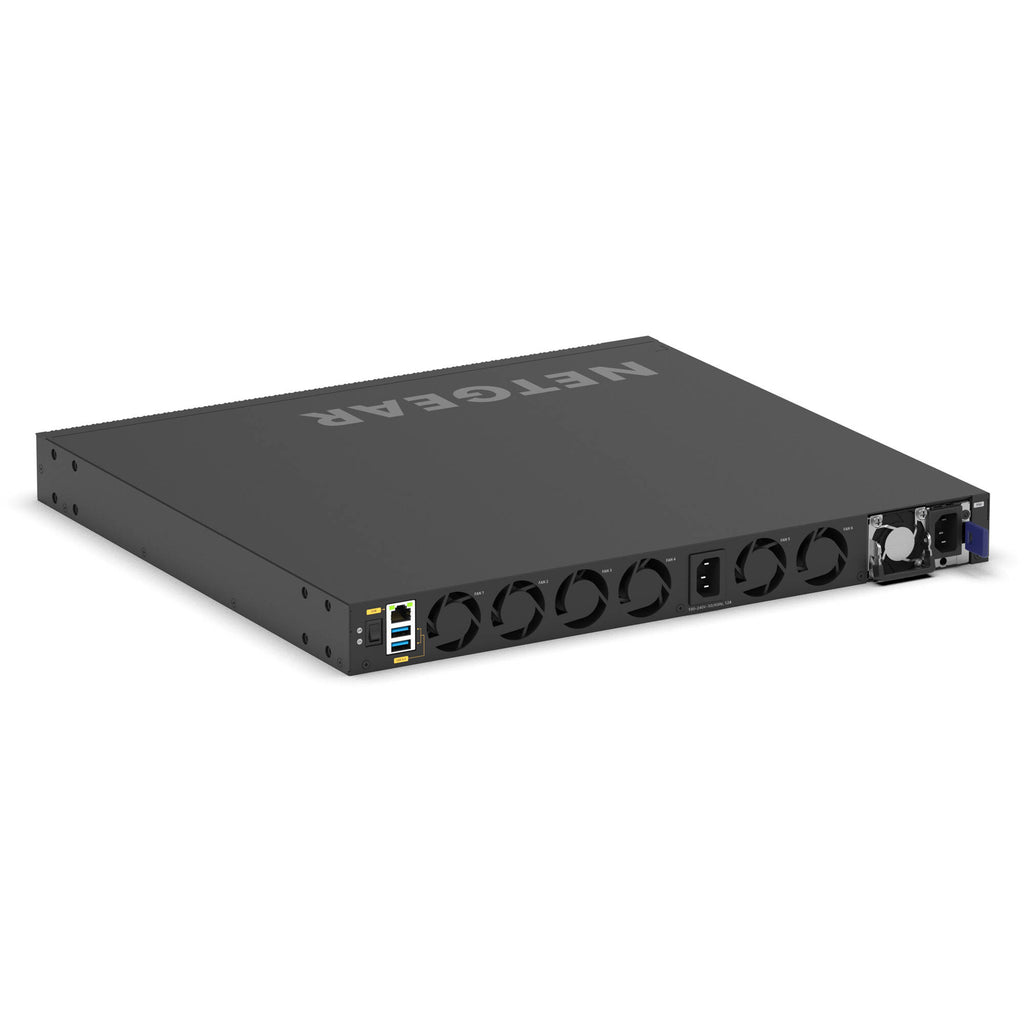

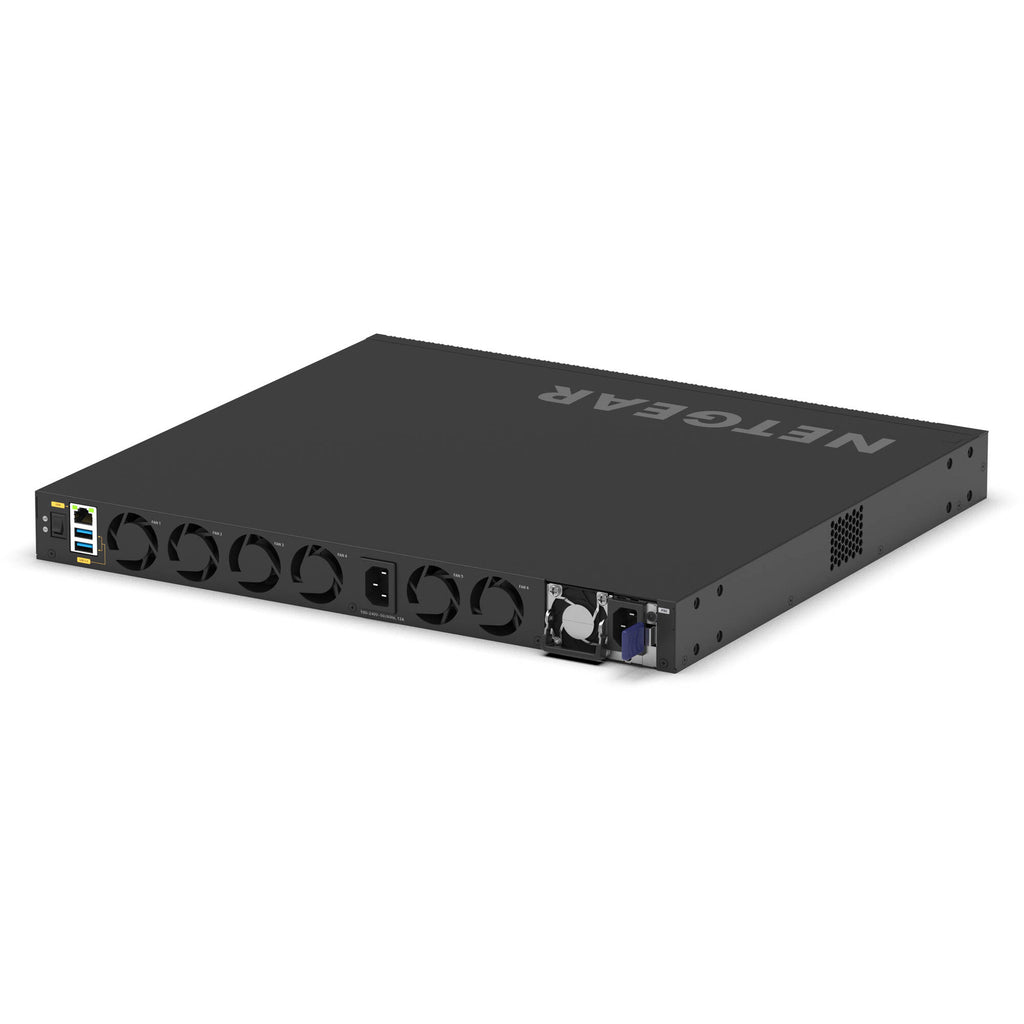

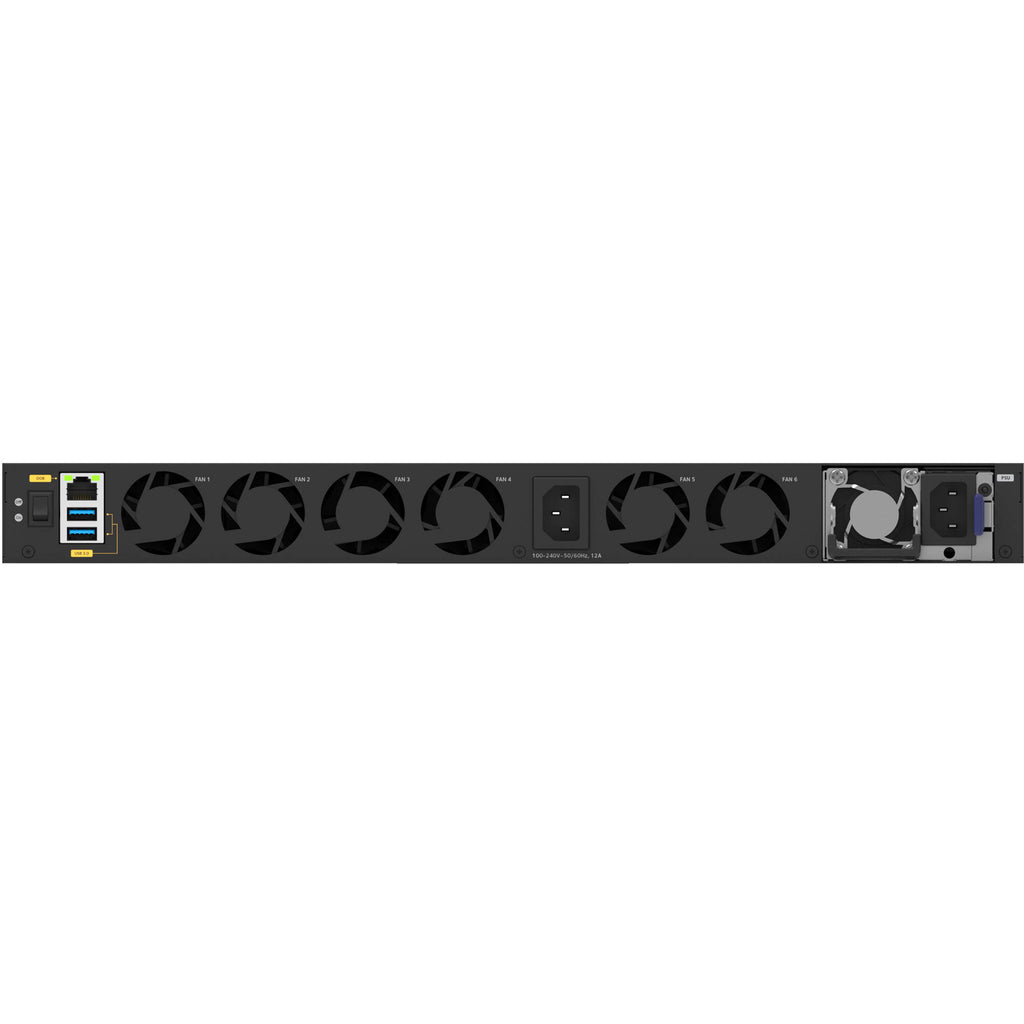

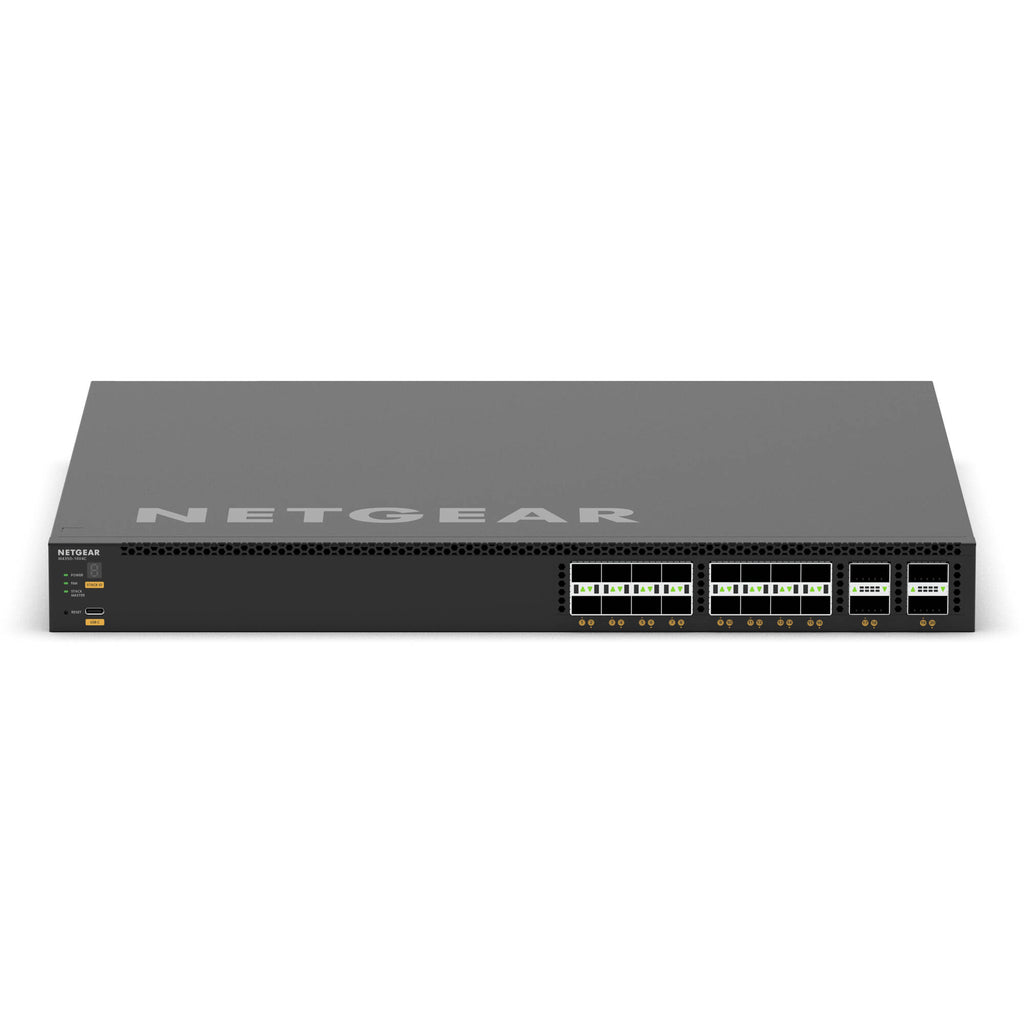

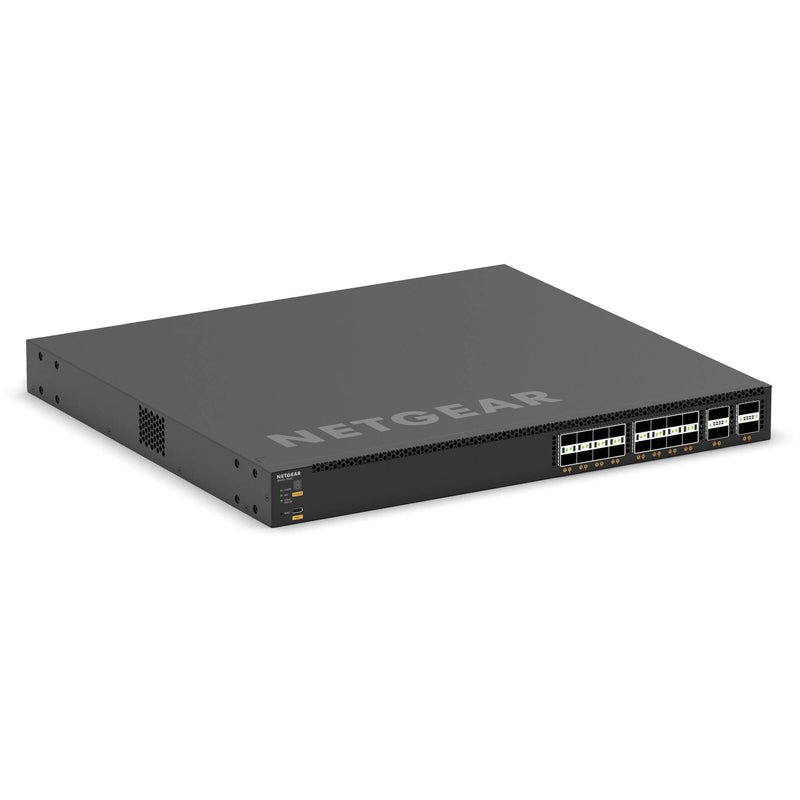

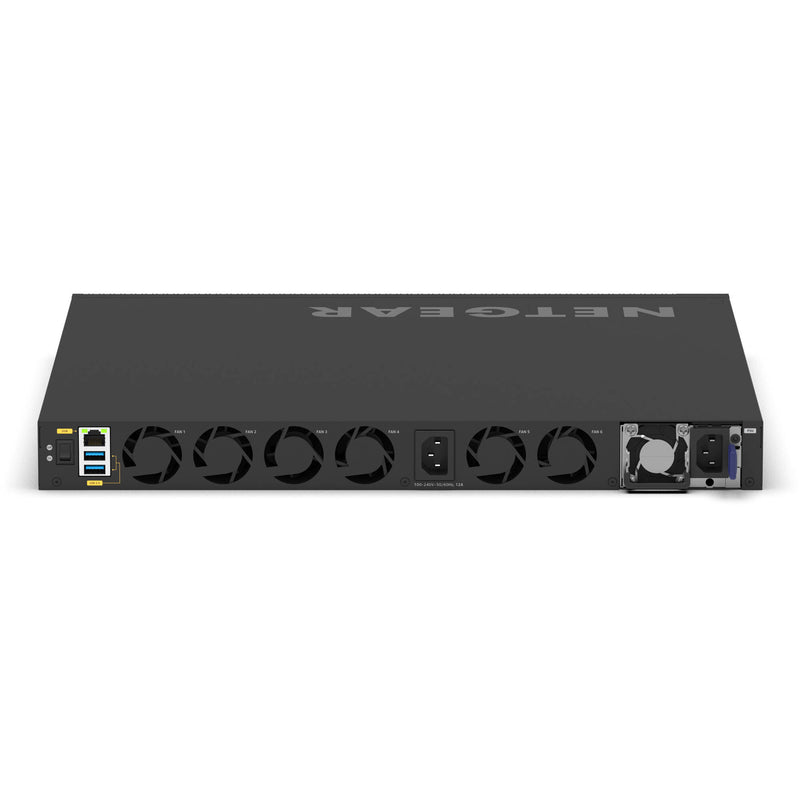

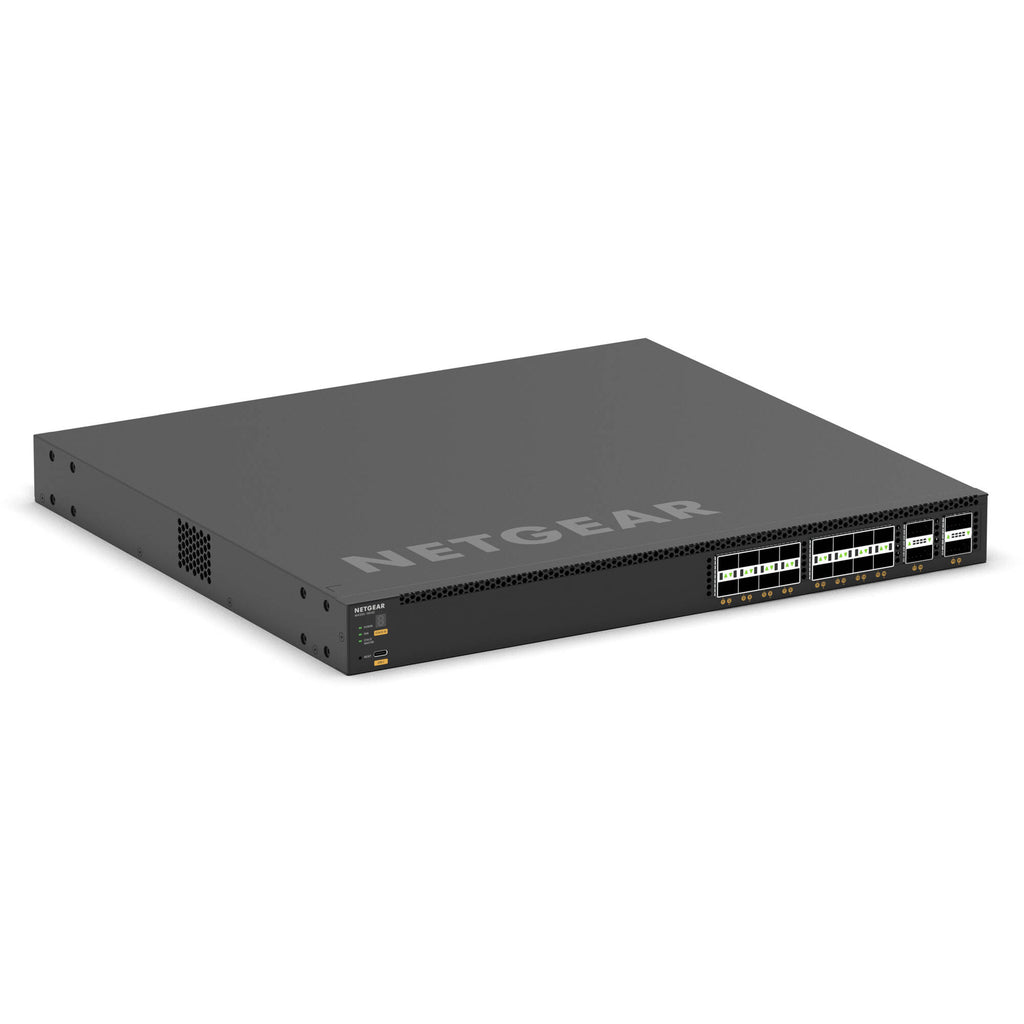

Grow your business by expanding your network capacity with the Netgear M4350-16V4C 16-Port 25G SFP28 Managed AV Network Switch. Designed primarily for high-bandwidth AV and IT applications, this network switch includes 16 SFP28 ports that support up to 25 Gb/s fiber connections.
With Netgear's IGMP Plus, the M4350-16V4C switch delivers smooth video-over-IP multicasts with little to no setup required. Four 100G QSFP28 ports are available for uplinks and stacking. Installing a separately purchased second power supply provides 1+1 redundancy. This switch works with Netgear's Engage Controller management platform, in addition to standard command line and web-based interfaces.
Performance
With a 1.6 Tb/s switching capacity and 1190.4 Mpps forwarding rate, this switch is designed to provide smooth and reliable AV broadcasts.
Multicast in an Instant
Netgear IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design

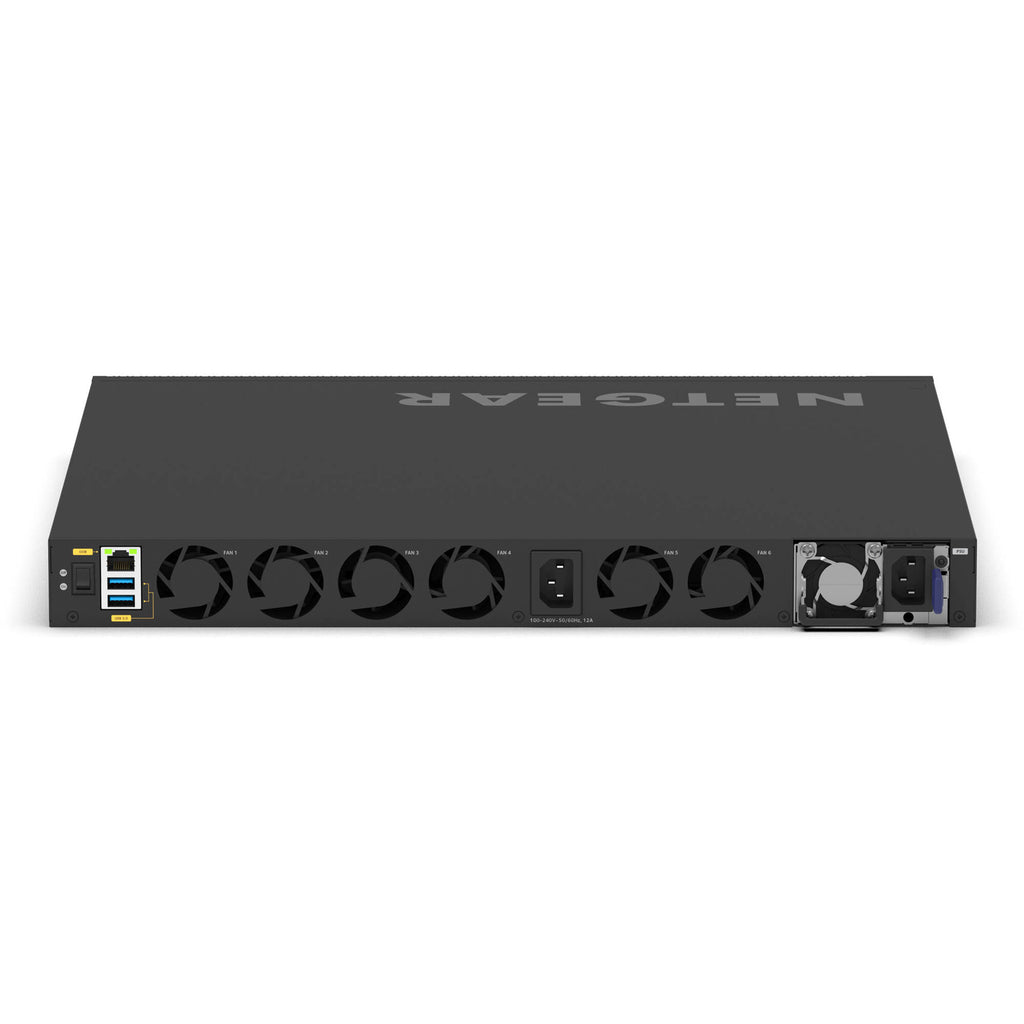

The intelligent fans may be configured in Quiet Mode to help minimize noise or Cool Mode for maximum cooling. Mounting ears are included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 and M4250 switches, supporting nonstop forwarding stacking, spine and leaf topology, and core to edge connectivity.
Fast, Easy Configuration
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
Engineered for Broadcast Studios
Supporting SMPTE ST 2110 standards, this switch is equipped with a chipset capable of PTP boundary and PTP grandmaster clock modes in hardware. It also offers the Boundary Clock mode (BC) and the Grandmaster Clock mode (GM) with a single-step PTP profile connecting to AV endpoints and single-step/two-step PTP profiles connecting to the Grandmaster.
UPC: 606449165074
Items Included
- Netgear M4350-16V4C 16-Port 25G SFP28 Managed AV Network Switch
- Power Cable
- USB-C to USB-A 2.0 Console Cable
- Rubber Caps
- Rubber Footpads
- Standard Rackmount Brackets
- Long Rackmount Brackets
- Limited Lifetime Warranty
- Limited 90-Day Manufacturer Warranty (Technical Support via Phone & Email)
- Limited Lifetime Warranty (Next Business Day Hardware Replacement)
Additional Resources
Netgear VSM4320C-100NES Specs
Key Specs
| Inputs/Outputs |
16x SFP28 25 GbE
4x QSFP28 100 GbE WAN 1x RJ45 Gigabit Ethernet LAN 1x USB-C 2x USB-A |
| Stackable |
No
|
| Switching Bandwidth |
1.6 Tb/s
|
| Stackable |
No
|
Protocols
| Layer Services Supported |
Layer 2, Layer 3
|
| Supported Protocols |
Auto-MDIX/MDI
DHCP Server DoS IGMP Snooping IPv4 IPv6 Link Aggregation |
| Queuing |
Strict Priority, Weighted Round Robin (WRR)
|
| Jumbo Frames Support |
12,000 Bytes
|
| MAC Address Table Size |
16K
|
| Multicast Groups |
512
|
Security
| Security Features |
DoS Attack Prevention
|
Performance
| Latency |
1 to 2.7 µs
|
| Forwarding Rate |
1190.4 Mpps
|
| Switching Bandwidth |
1.6 Tb/s
|
| Packet Buffer |
256 Mb
|
Computer
| CPU |
Quad-Core: Up to 1.8 GHz Cortex A57
|
| Memory |
4 GB DDR4
|
Electrical
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Supply Type |
Internal
|
General
| Certifications |
No
|
| Storage Conditions |
24 to 158°F / -4 to 70°C
|
| Noise Level |
55.0 dB
|
| Cooling System |
Fan
|
| Indicator Lights |
Yes
|
| Rack Mountable |
Yes 1 RU
|
| Dimensions |
17.3 x 15.7 x 1.7" / 440 x 400 x 43.2 mm
|
| Weight |
15.32 lb / 6.95 kg
|
Packaging Info
| Package Weight |
22.625 lb
|
| Box Dimensions (LxWxH) |
23.5 x 22.9 x 4.1"
|
