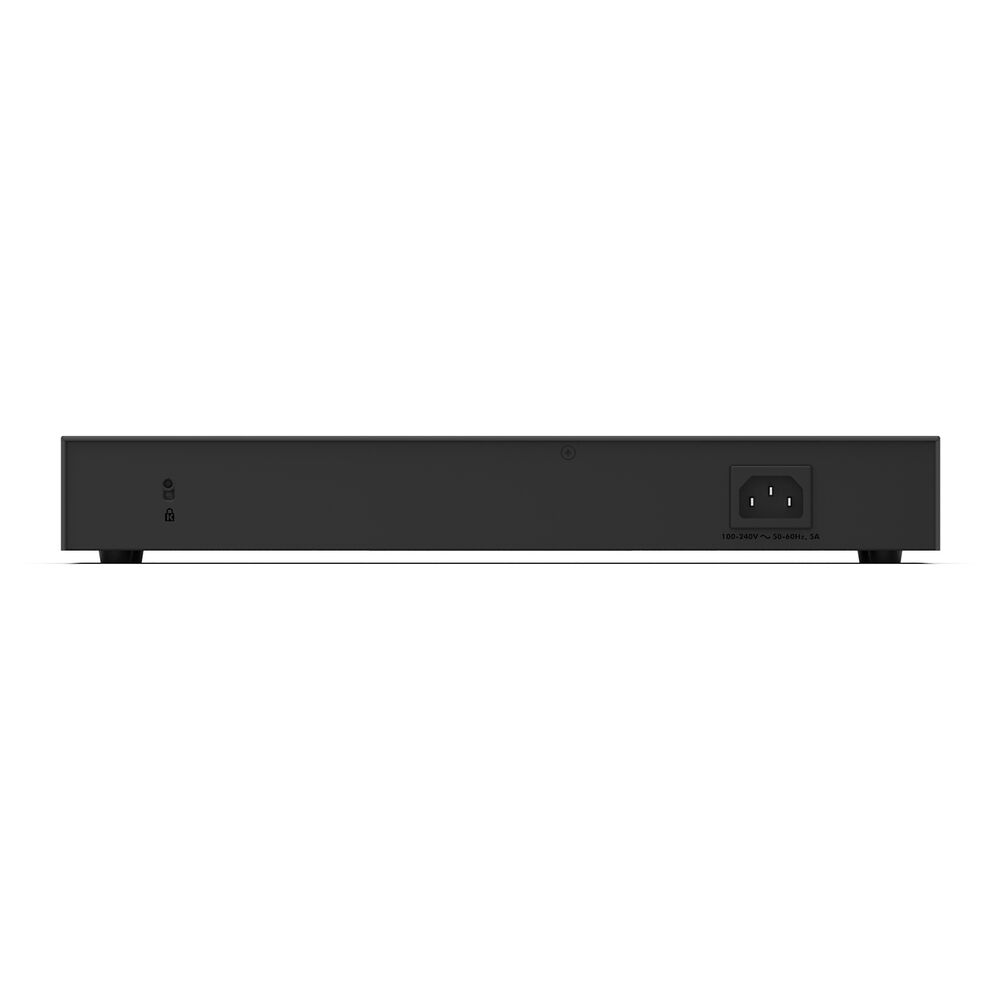

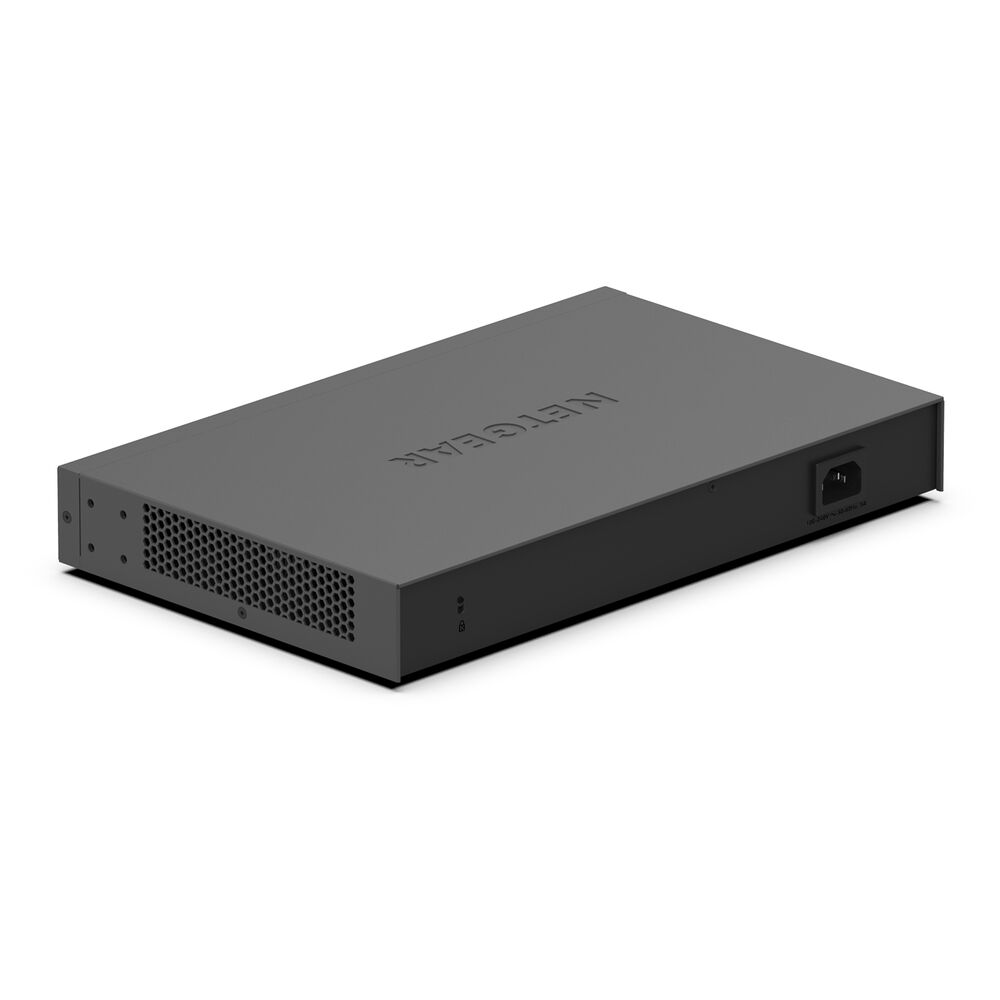

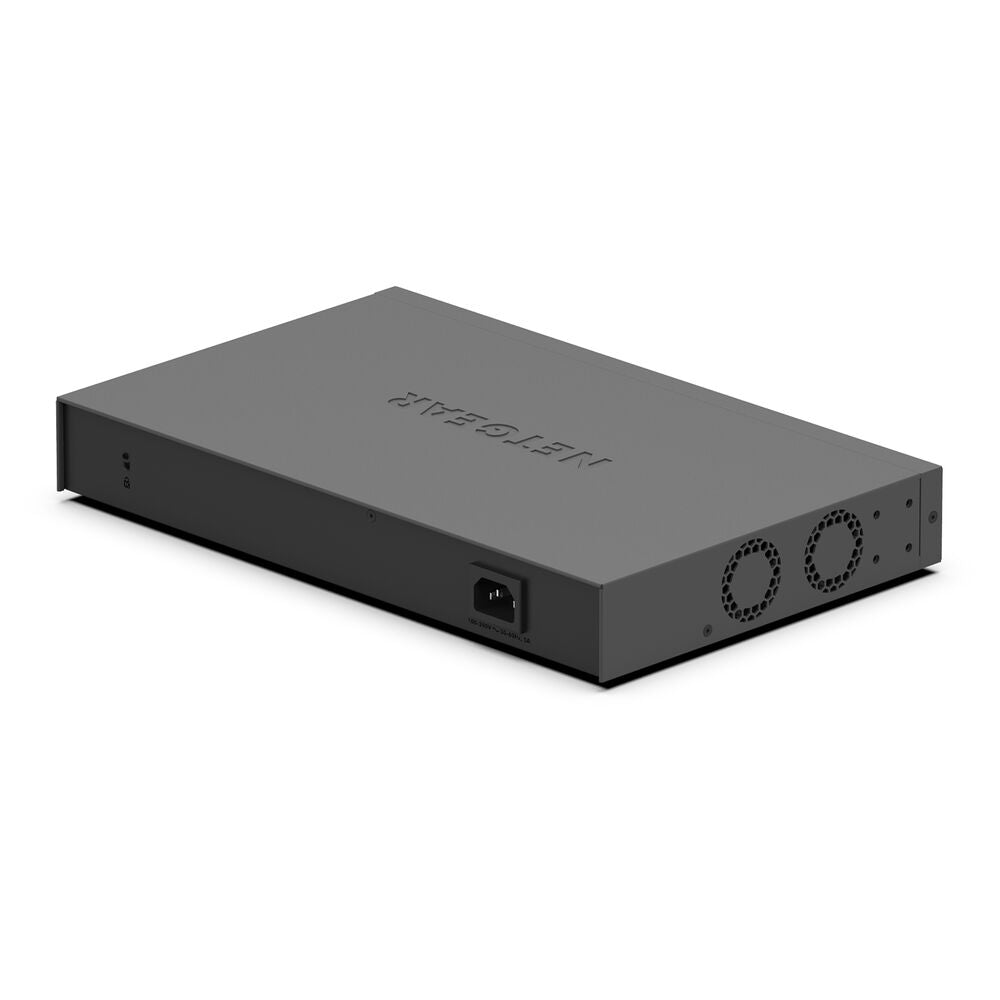

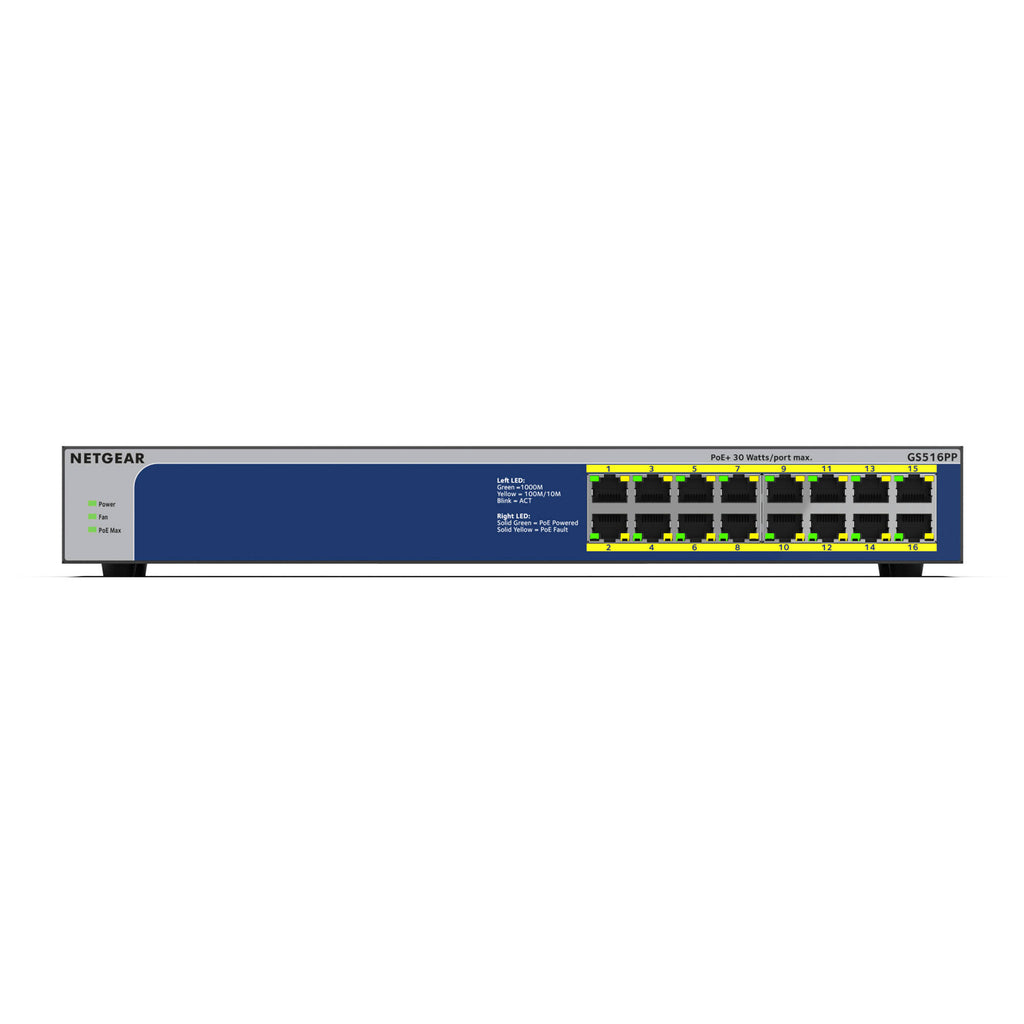

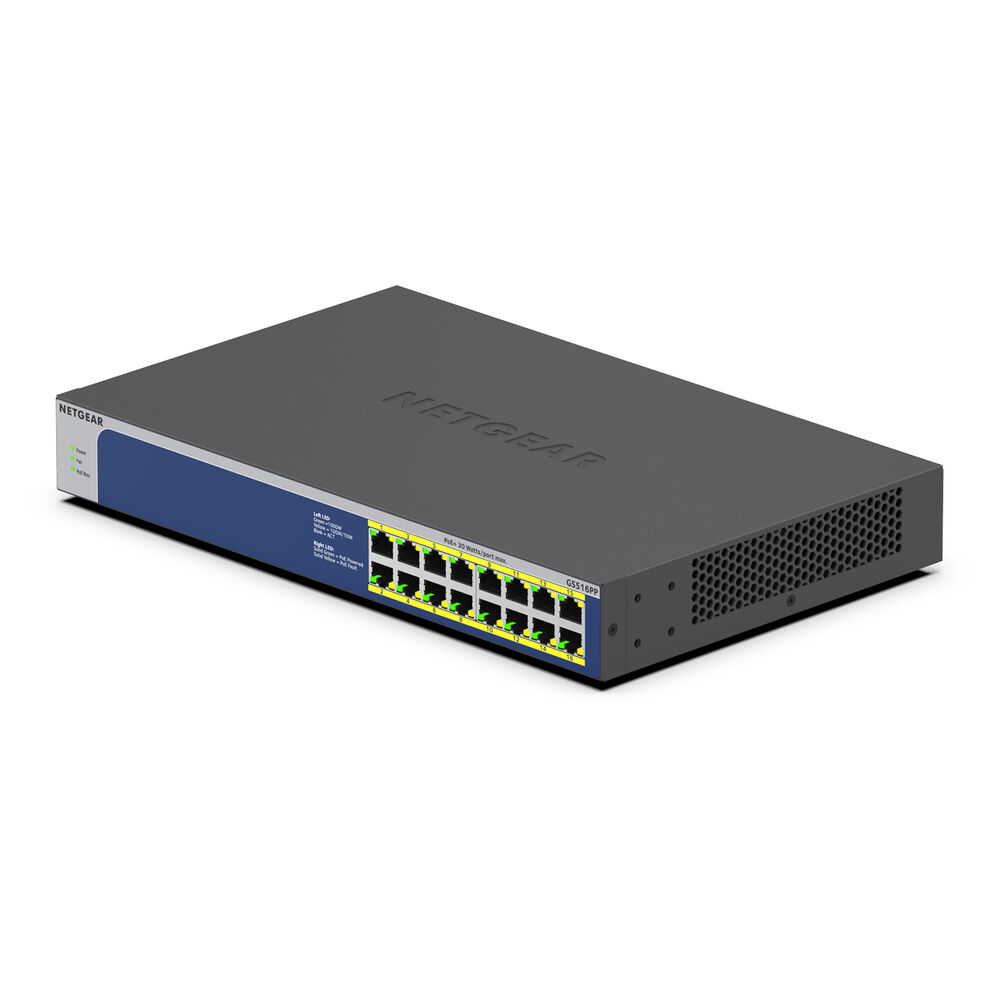

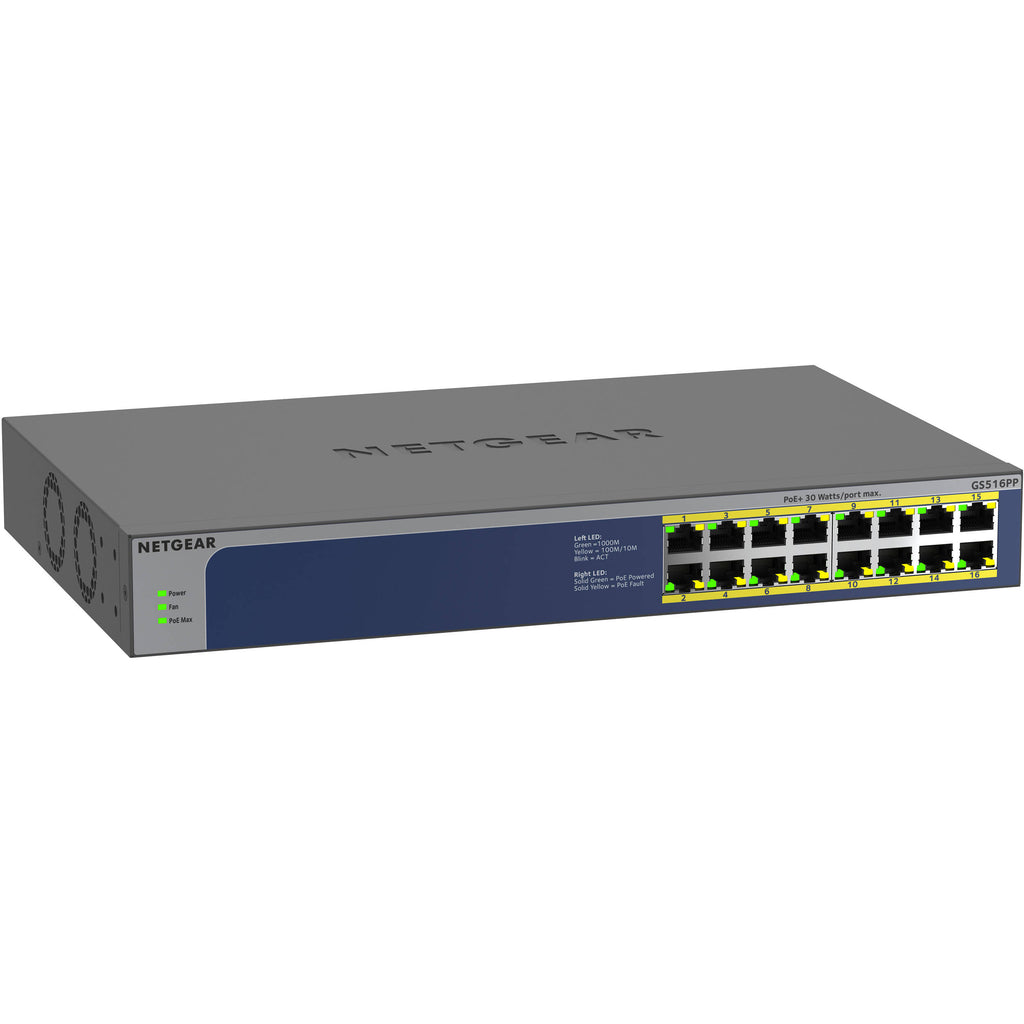

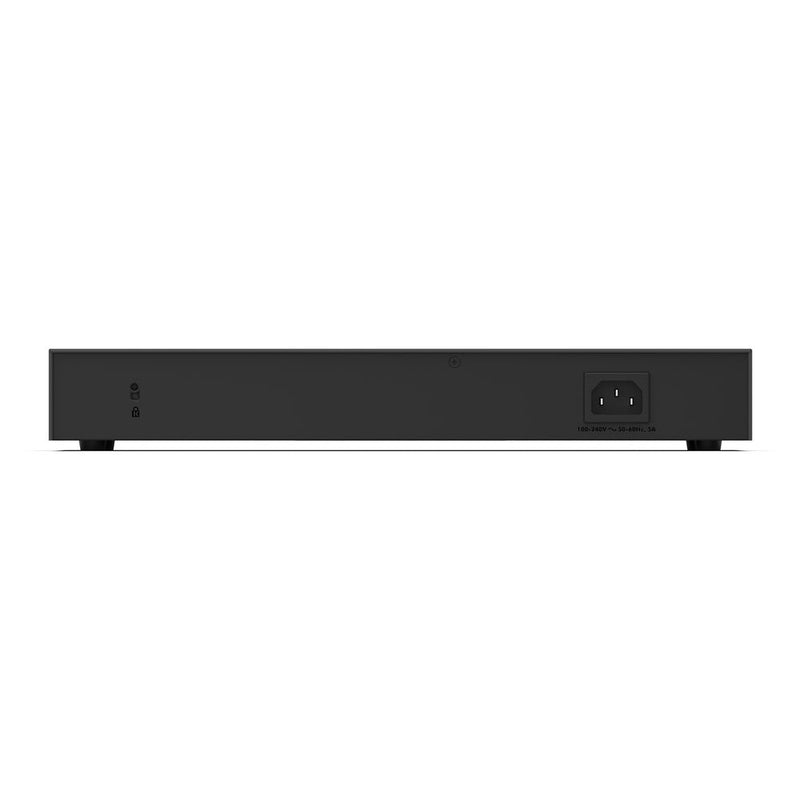

Netgear GS516PP Overview
-
1Description
-
2Power Auto Balance and Allocation
-
3Silent Operation
-
4Rugged Design
Expand your network with the Netgear GS516PP 16-Port Gigabit PoE+ Compliant Unmanaged Switch, which supports PoE devices, such as IP security cameras, VoIP phones, access points. All 16 Gigabit Ethernet ports on this unmanaged switch are 30W PoE+ compliant for a total power budget of 260W. Netgear's power technologies help to ensure that the exact amount of power necessary is delivered to each connected PoE device. The GS516PP also has a 32 Gb/s switching capacity and a 1.448 Mpps forwarding rate to ensure fast, reliable performance. You can mount this switch onto a desktop or use the included kit for rackmount installations. Its plug-and-play design allows you to integrate the switch into your network without the need for any additional hardware or software.
Power Auto Balance and Allocation
With Netgear's PoE technology, this switch automatically delivers the exact amount of power each connected PoE device requires.
The GS516PP is designed to operate silently with passive cooling until its two cooling fans are required to maintain optimal temperatures.
This switch features a durable metal casing for enhanced longevity.
![]()
UPC: 606449149241
In the Box
- Netgear GS516PP 16-Port Gigabit PoE+ Compliant Unmanaged Switch
- Power Cable
- Rackmount Kit
- Desktop Rubber Feet Pack
- Insight Registration Flyer
- Limited Lifetime Warranty
- 90-Day Technical Support
- Limited Lifetime Online Chat Technical Support
Table of Contents
- Description
- Power Auto Balance and Allocation
- Silent Operation
- Rugged Design
Netgear GS516PP Specs
Interfaces
| Ports |
16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ |
Protocols
| Supported Protocols |
Auto-MDIX/MDI |
| Queuing |
Weighted Round Robin (WRR) |
| Jumbo Frames Support |
9216 Bytes |
| MAC Address Table Size |
8K |
Standards
| Supported IEEE Standards |
802.1p, 802.2az, 802.3, 802.3ab, 802.3at, 802.3i, 802.3u |
Performance
| Latency |
12 µs |
| Forwarding Rate |
1.44 Mpps |
| Switching Bandwidth |
32 Gb/s (Non-Blocking) |
| Packet Buffer |
192 kB |
Electrical
| Power Draw |
316.1 W (Max)
9.1 W (Standby) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 5 A |
| PoE Power Budget |
260 W |
| PoE per Port |
30 W |
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C |
| Operating Humidity |
10 to 90% |
| Storage Temperature |
-4 to 158°F / -20 to 70°C |
| Storage Humidity |
10 to 95% |
| Operating Altitude |
9842' / 3000 m |
General
| Cooling System |
Fan |
| Mean Time Between Failures (MTBF) |
24,153,339 Hours |
| Material of Construction |
Metal |
| Indicator Lights |
Link/Activity/Speed, PoE |
| Rack Form Factor |
1 RU |
| Dimensions |
13 x 8.1 x 1.7" / 330 x 207 x 43 mm |
| Weight |
5.1 lb / 2.3 kg |
Packaging Info
| Package Weight |
7.325 lb |
| Box Dimensions (LxWxH) |
17.8 x 10.6 x 3.5" |
