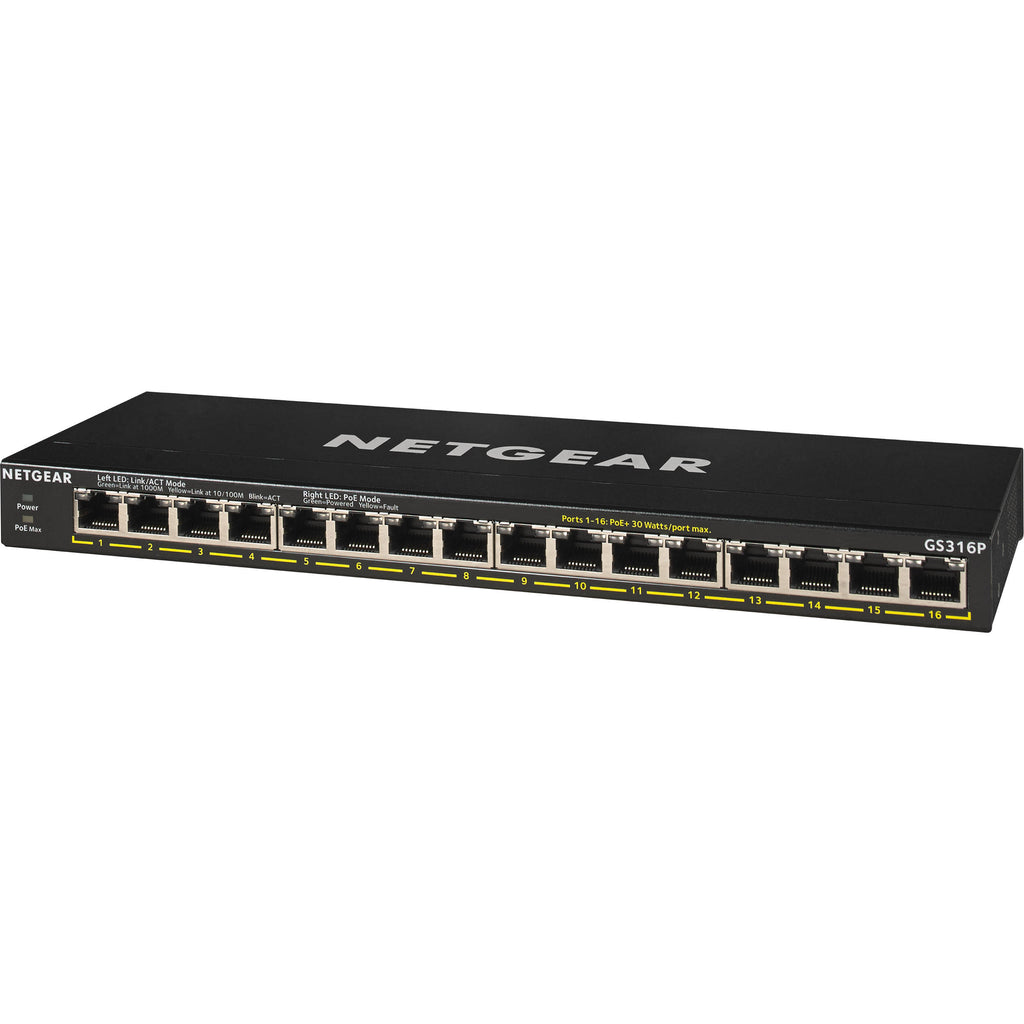

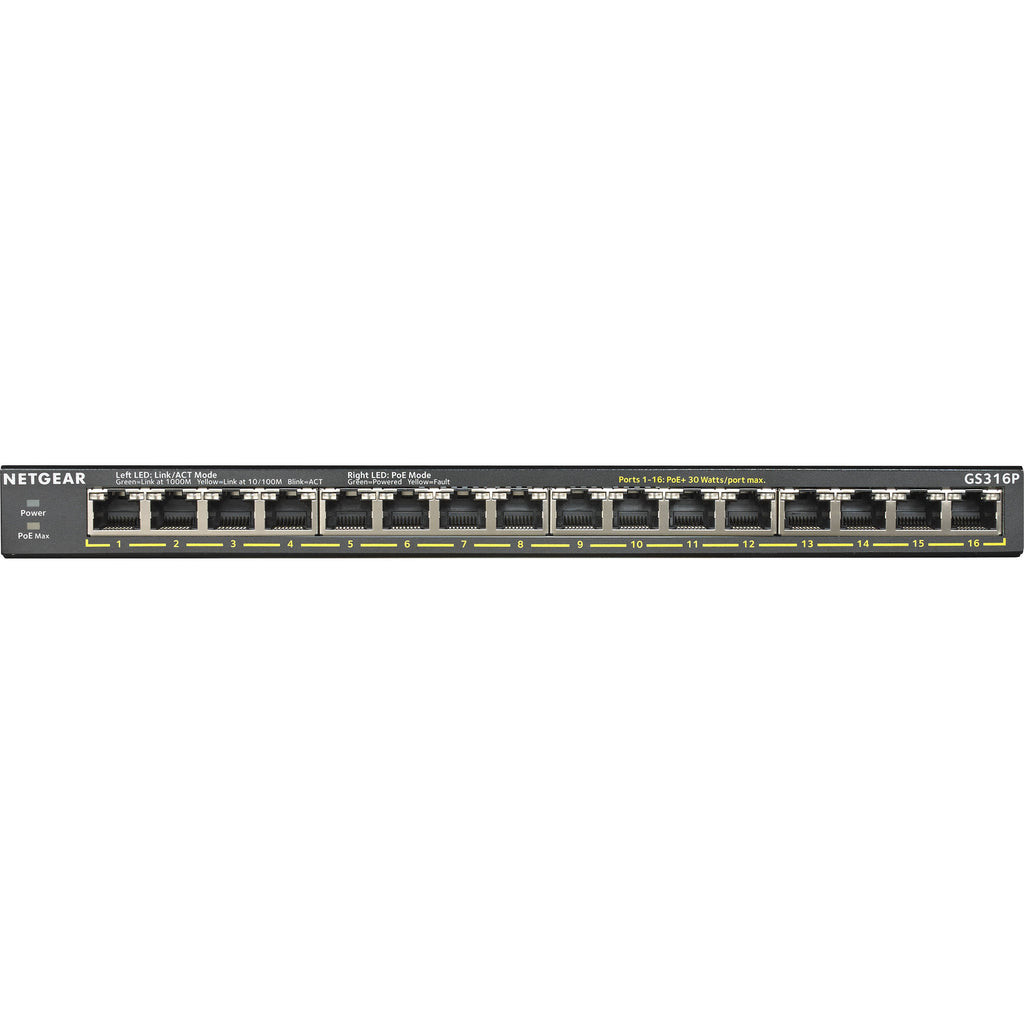

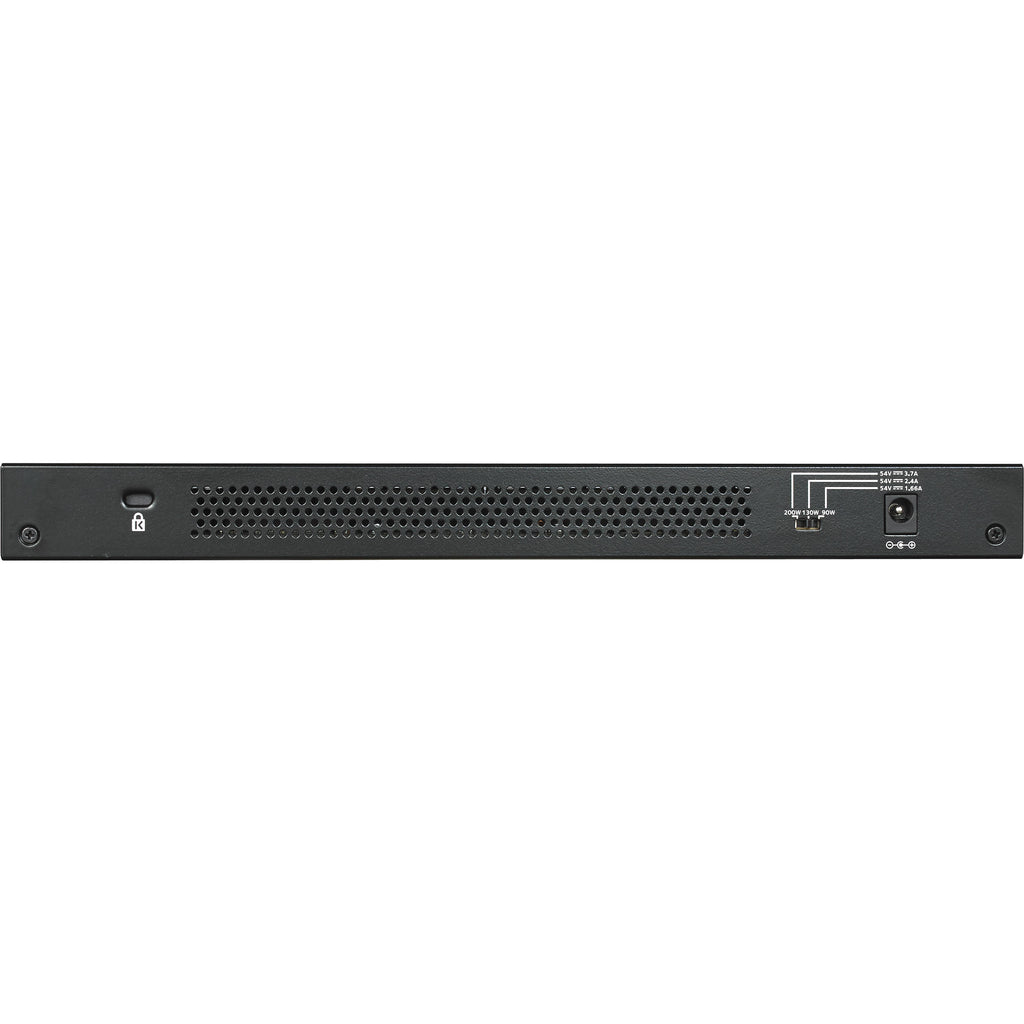

Netgear GS316P 16-Port Gigabit PoE-Compliant Unmanaged Switch

16 x Gigabit Ethernet Ports

16 x PoE-Compliant Ports

32 Gb/s Switching Capacity

1.44 Mpps Forwarding Capacity

Boost the switching capacity of your small business with the GS316P 16-Port Gigabit PoE-Compliant Unmanaged Switch . Capable of up to 32 Gb/s of total switching bandwidth and a 1.44 Mpps forwarding rate, this desk- and rack-mountable unmanaged switch comes equipped with 16 Gigabit Ethernet ports. The ports support PoE (Power over Ethernet) with a 115W power budget, ideal for powering IP cameras, VoIP phones, wireless access points, and other PoE-capable devices.

Support for the Energy-Efficient Ethernet standard helps the plug-and-play switch to conserve power, while auto-MDI/MDIX support eliminates the need for crossover cables. The switch's 802.1p QoS capabilities allow for traffic prioritization, while its fanless design helps to ensure quiet operation.

LED indicators for ease of use Auto-negotiation for automatic connection at the highest common speed between switch and an end device Non-blocking switching architecture for maximum throughput at wire speed Durable and rugged metal case Ideal for small office and home networks Standards-based technology helps to ensure interoperability with standards-based devices in the existing network Auto power down Short cable detection UPC: 606449146868

Ports

16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE

Supported Protocols	Auto-MDIX/MDI MAC Filtering
Queuing	Weighted Round Robin (WRR)
Jumbo Frames Support	9216 Bytes
MAC Address Table Size	4K

Supported IEEE Standards

802.1p, 802.3, 802.3ab, 802.3af, 802.3az, 802.3i, 802.3u, 802.3x

Latency	3.7 µs
Forwarding Rate	1.44 Mpps
Switching Bandwidth	32 Gb/s (Non-Blocking)
Packet Buffer	1 MB

Power Draw	127.9 W (Active) 2.68 W (Standby)
PoE Power Budget	115 W
PoE per Port	30 W

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	90%
Storage Temperature	-4 to 158°F / -20 to 70°C
Storage Humidity	95%
Operating Altitude	10,000' / 3048 m

Cooling System	Passive
Mean Time Between Failures (MTBF)	2,752,476 Hours
Material of Construction	Metal
Indicator Lights	Link/Activity/Speed, PoE, Power
Dimensions	11.3 x 4 x 1.1" / 286 x 102 x 27 mm
Weight	1.94 lb / 0.88 kg

Package Weight	4.95 lb
Box Dimensions (LxWxH)	14.8 x 11.7 x 3"
