Neohm - TE Connectivity CPF0805B5K6E1 CPF0805B5K6E1 SMD Chip Resistor 5.6 Kohm ± 0.1% 100 mW 0805 [2012 Metric] Thin Film Precision Low TCR

The TE Connectivity CPF series are high stability, thin film precision chip resistors. The Resistance range includes E24 and E96 decade values from 1ohm to 4Mohm. These resistors offer various power dissipations relating to chip size and are suitable for all applications where close accuracy and stability are essential. CPF series thin film precision resistors have accurate and uniform physical dimensions to facilitate placement.

• EIA 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 chip sizes available
• Temperature coefficient is 15ppm/°C, 25ppm/°C and 50ppm/°C
• ±0.1%, ±0.5% and ±1% tolerance
• Electroplated 100% matte Sn finish
• Operating temperature range from -55°C to 125°C

Other details

Brand	NEOHM - TE CONNECTIVITY
Part Number	CPF0805B5K6E1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
3D Product Image EN
Drawing EN

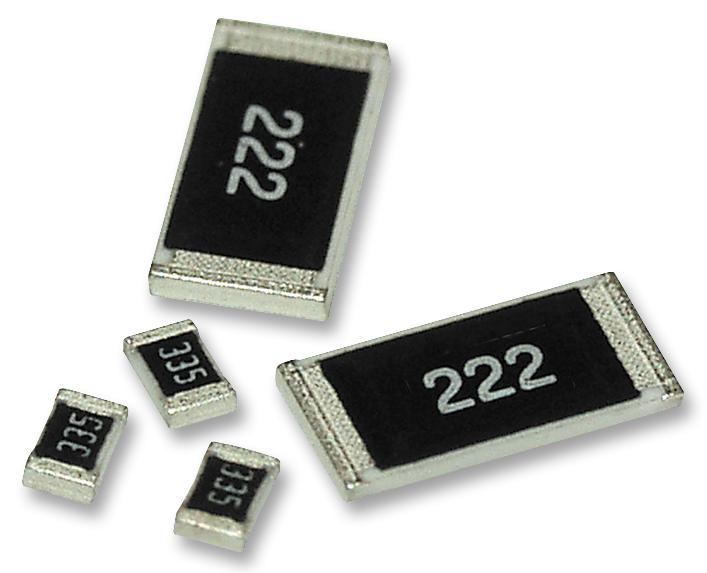

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
