Neohm - TE Connectivity CPF0603B18KE1 SMD Chip Resistor 0603 [1608 Metric] 18 Kohm CPF Series 50 V Thin Film 63 mW

The TE Connectivity CPF series are high stability, thin film precision chip resistors. The Resistance range includes E24 and E96 decade values from 1ohm to 4Mohm. These resistors offer various power dissipations relating to chip size and are suitable for all applications where close accuracy and stability are essential. CPF series thin film precision resistors have accurate and uniform physical dimensions to facilitate placement.

• EIA 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 chip sizes available
• Temperature coefficient is 15ppm/°C, 25ppm/°C and 50ppm/°C
• ±0.1%, ±0.5% and ±1% tolerance
• Electroplated 100% matte Sn finish
• Operating temperature range -55°C to 125°C

Applications

Industrial, Power Management, Consumer Electronics, Portable Devices

Product details

Resistor Case Style	0603 [1608 Metric]
Resistance	18kohm
Product Range	CPF Series
Voltage Rating	50V
Resistor Element Type	Thin Film
Power Rating	63mW
Resistance Tolerance	± 0.1%
Temperature Coefficient	± 25ppm/°C
Automotive Qualification Standard	-

Other details

Brand	NEOHM - TE CONNECTIVITY
Part Number	CPF0603B18KE1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Drawing EN
3D Product Image EN

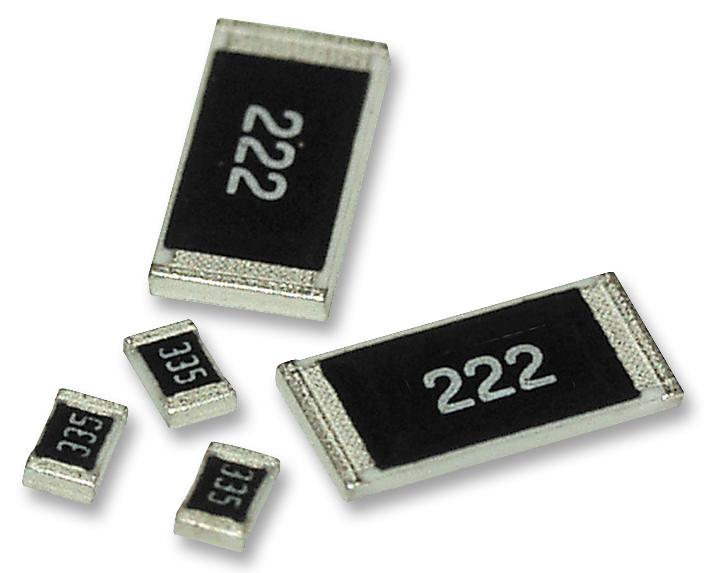

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
