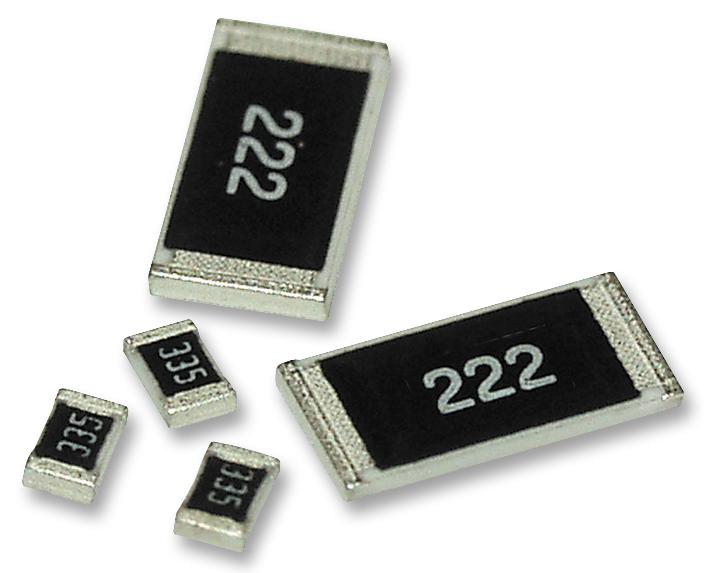

Neohm - TE Connectivity CPF0402B820RE1 CPF0402B820RE1 SMD Chip Resistor 820 ohm ± 0.1% 62.5 mW 0402 [1005 Metric] Thin Film Precision Low TCR

The TE Connectivity CPF series are high stability, thin film precision chip resistors. The Resistance range includes E24 and E96 decade values from 1ohm to 4Mohm. These resistors offer various power dissipations relating to chip size and are suitable for all applications where close accuracy and stability are essential. CPF series thin film precision resistors have accurate and uniform physical dimensions to facilitate placement.

• EIA 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 chip sizes available
• Temperature coefficient is 15ppm/°C, 25ppm/°C and 50ppm/°C
• ±0.1%, ±0.5% and ±1% tolerance
• Electroplated 100% matte Sn finish
• Operating temperature range -55°C to 125°C

Other details

Brand	NEOHM - TE CONNECTIVITY
Part Number	CPF0402B820RE1
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Drawing EN
Enhanced Product Overview EN
3D Product Image EN
