Description
National Optical BTI2-440T-440PLL Overview

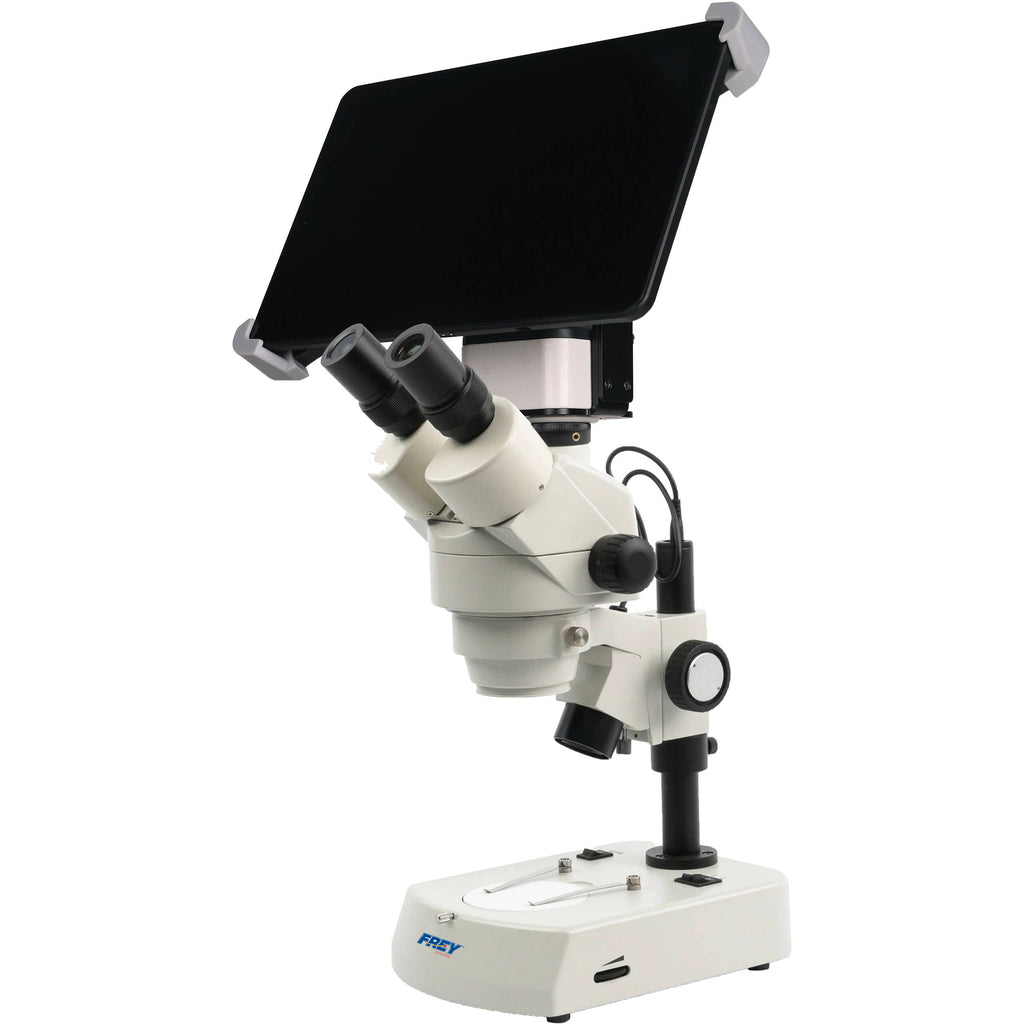

The BTI2-440T-440PLL Zoom Trinocular Stereo Microscope with Moticam X5 Camera & 10" Tablet from National Optical is a professional-quality stereo microscope for industrial and educational settings with a magnification range of 7.5-45x. The Moticam X5 is a high-resolution streaming Wi-Fi camera, which can capture and share live images from the microscope to the included 10" tablet or your Android or iOS device with the free MotiConnect app.
The 440T-440PLL Zoom Trinocular Stereo Microscope with dual LED base from National Optical is a professional-quality stereo microscope for industrial and educational settings. The head design provides full access to the eyepieces, while allowing you to directly mount video cameras and DSLRs to stream the view locally to monitors or projectors, capture and document specimens for later use and study, or use with internet applications such as online class work, webinars, and podcasts.
The 0.75-4.5x eyepieces combine with the 10x objective for a magnification range of 7.5-45x, and the overall height adjusts 13.4-17" to accommodate larger objects. The large zoom ratio of 6:1 and a standard working distance of 110mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180x.
- Trinocular viewing head for cameras/imaging systems
- 0.75x to 4.5x zoom magnification eyepieces
- Paired wide field 10x eyepieces are 45° inclined, with dual diopter adjustments, interpupillary adjustment from 55-75mm
- Accepts 23mm eyepiece reticle
- Viewing head rotates 360°
- Continuous magnification from 7.5x through 45x
- Large dual focusing knobs with slip clutch to prevent damage to mechanism
- Tension adjustment eliminates focus 'drift'
- Top light is LED with directional beam and rheostat control
- Bottom light is LED for cool operation, greater light efficiency
- Base mounted light controls permit choice of top only, bottom only, or dual illumination
- Heavy-duty 3-wire grounded cord and plug
- 110-240V internal auto-switching power supply
- Supplied with American-style IEC power cord
- Additional wall adapter required for 240V operation
- Two 80mm stage plates (frosted glass and reversible black/white plastic contrast plates)
- Blue filter for transmitted light
- Locked-on stage clips
- Professional all-metal frame, gray enamel finish
- Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different-sized objects on stage
The Moticam X5 Digital Wi-Fi Microscope Camera from National is a high-resolution streaming Wi-Fi camera. By creating its own Wi-Fi signal, simply connect with your Android or iOS device so you can view, capture, and edit live images from your microscope with the MotiConnect app.
Android: Tablet or phone devices with free downloadable App MotiConnect (at the Google Play Store)
Web Browser: Universal Viewer with almost any HTML 5 supported Web browser (via camera IP address)
Wireless Computer: Wi-Fi enabled PC or laptop with Motic Images Plus
5GHz compatible device with H264 hardware required for fast display viewing
In the Box
- National Optical 440T-440PLL Zoom Trinocular Stereo Microscope (Dual LED Base)
- 2 x Rubber Eye Shields
- Vinyl Dust Cover
- Limited Lifetime Warranty
- National Optical Moticam X5 Digital Wi-Fi Microscope Camera
- Macro Viewing Tube
- Removable USB Cable
- CS Ring Adapter
- 2 x Eyepieces Adapters to Fit Eyepiece O.D.'s of 28-38mm
- Software CD Motic Images 3.0
- Calibration Slides
- Limited 1-Year Manufacturer Warranty
- 10" Detachable Tablet
National Optical 440T-440PLL Zoom Trinocular Stereo Microscope (Dual LED Base) Specs
National Optical Moticam X5 Digital Wi-Fi Microscope Camera Specs
| Wi-Fi |
802.11a/b/g; Dual-Band (2.4 & 5 GHz)
|
| Power Source |
USB (Included)
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
