National 405TBL-10-3 Overview
-
1Description
-
2Optical System
-
3Focusing
-
4Lighting
-
5Construction Details

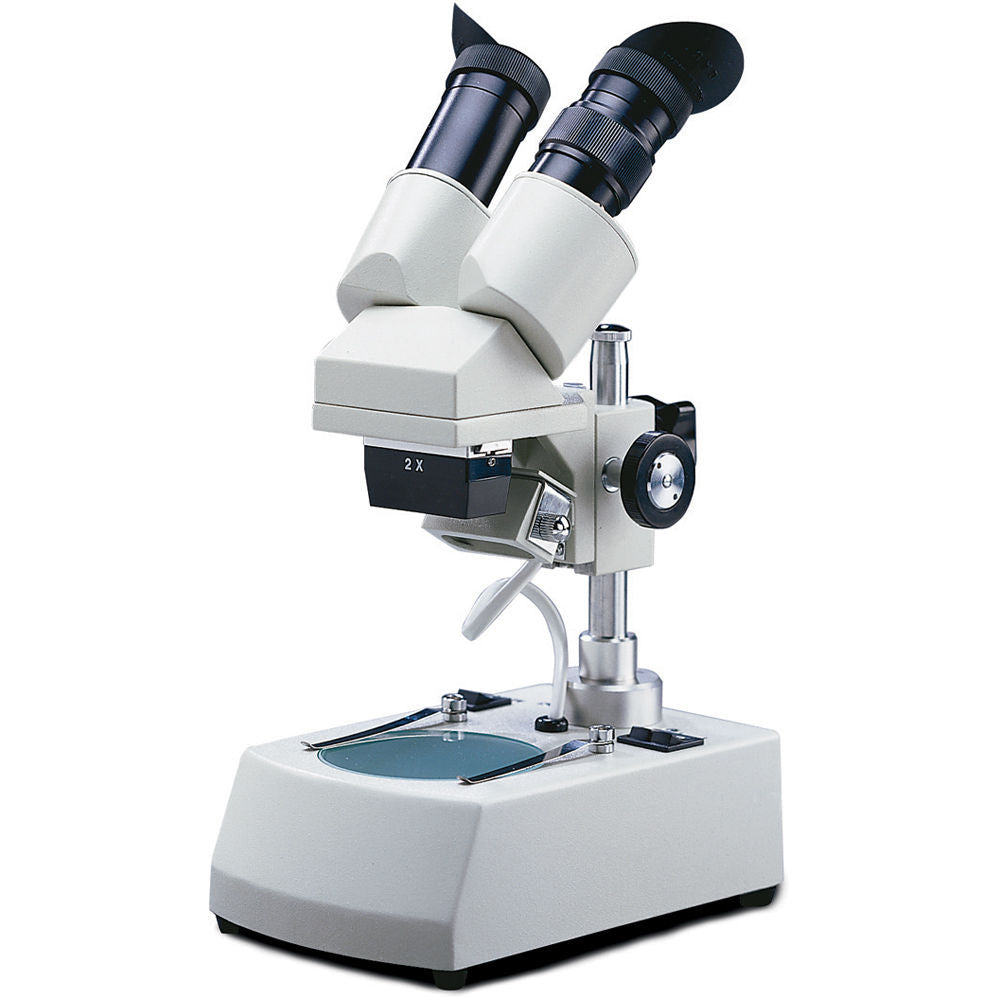

The 405TBL-10-3 3x Stereo Microscope from National Optical is a single magnification stereoscopic microscope fit for laboratories, high school and university students. The stereo (dual) eyepiece configuration is preferred by most researchers and students because of the superior depth of field and comfort compared to monocular microscopes. This model of the 405 microscope has a paired 10x eyepiece delivering 30x magnification. The stage can be illuminated from above, below, or both using 10W tungsten lights activated by separate base-mounted On/Off switches.
A user-friendly design complements the range of features that make the 405 series a welcome addition to labs as well as classrooms. This microscope has a single focusing dial and an adjustable post for raising the viewing head to accommodate specimens up 35mm / 1.4". The rack and pinion focus system also includes a slip clutch mechanism to prevent mishandling. An adjustable interpupillary distance, left-side diopter correction, and reticle holder/retainer provide the 405 series stereo microscope with the flexibility needed to create a customized viewing experience.
- Paired 10x inclined eyepiece
- 3x achromatic objective lens
- 30x magnification
- Parfocalled, parcentered, paired objectives
- Eyepiece with diopter adjustment and reticle holder/retainer
- 55-75mm / 2.2-3" interpupillary distance
- Rack and pinion focus system
- Slip clutch prevents over-turning
- Tension adjustment prevents focus drift
- Incidental (top) 10 watt adjustable tungsten illumination
- Transmitted (bottom) 10 watt tungsten illumination
- Dual base-mounted On/Off switches
- 80mm frosted glass and 80mm reversible black and white stage plates
- Locked on metal stage clips
- Cast metal body
- Grey enamel finish
- 11" (27.5 cm) height
- 6 lb (2.7 kg) weight
In the Box
- National 405TBL-10-3 3x Stereo Microscope
- Eyeshields
- Dustcover
- Limited 5-Year Warranty (Excluding Bulb)
Table of Contents
- Description
- Optical System
- Focusing
- Lighting
- Construction Details
National 405TBL-10-3 Specs
| Microscope Type |
Stereo |
| Head |
45° Inclined Binocular |
| Nosepiece |
1-Position Nosepiece |
Imaging
| Optical Magnification |
30x |
| Objective |
3x |
| Eyepiece |
10x |
Illumination
| Illumination Type |
Top: Tungsten
Bottom: Tungsten |
General
| Interpupillary Adjustment |
55 to 75 mm / 2.2 to 3" |
| Dimensions |
11" / 27.5 cm
3.2" / 8 cm (Specimen Stage) |
| Weight |
6 lb / 2.7 kg |
Packaging Info
| Package Weight |
6.665 lb |
| Box Dimensions (LxWxH) |
13.9 x 12.3 x 6.7" |
